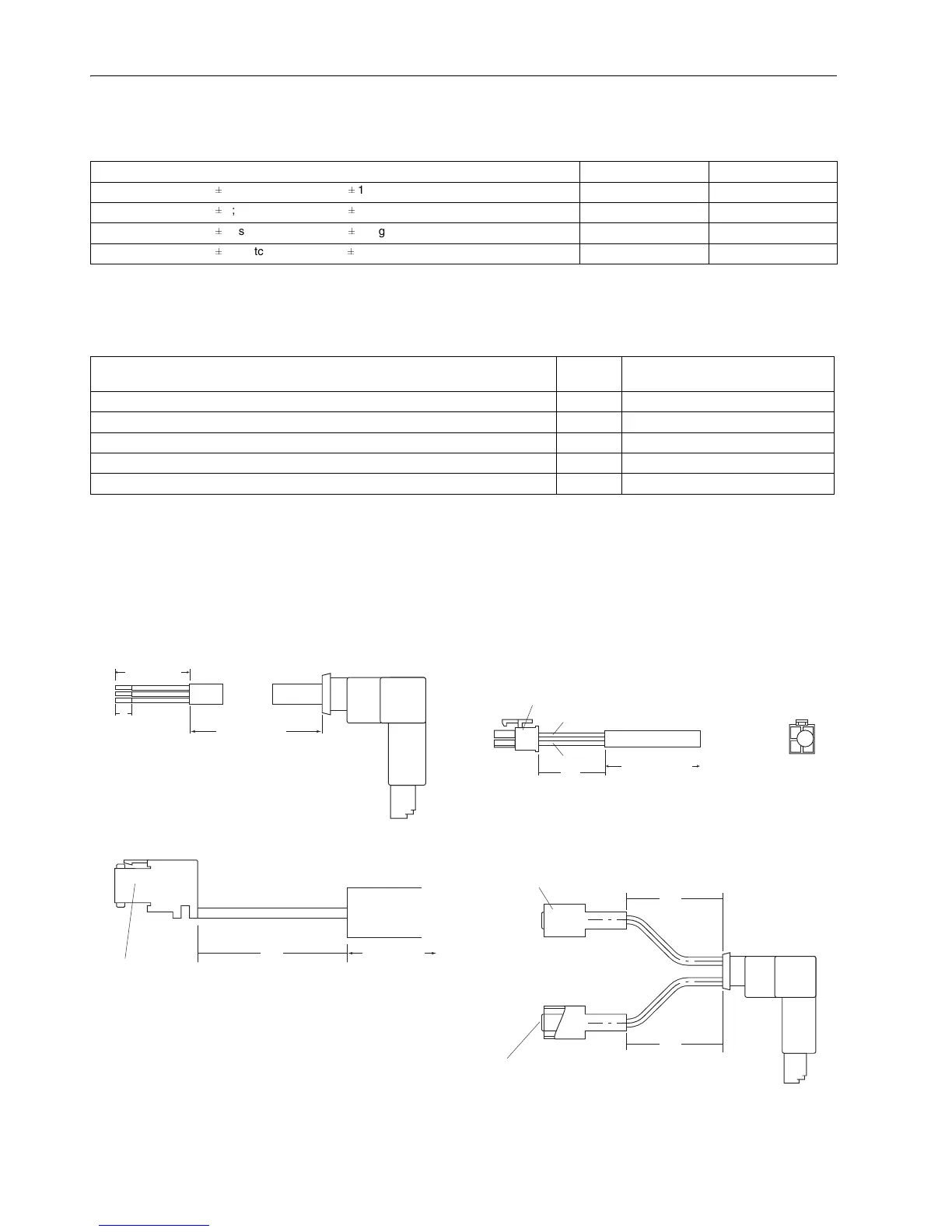

33 EN2R-9004 0606R20-NE
GAS PRESSURE SWITCH
1)
With cover mounted
MISCELLANEOUS
PLUGS
Cable wiring DBI applications
220/240 Volt applications: 3 x 0.75 mm
2
110 Volt applications: : 3 x 0.75 mm
2
24 Volt applications: 2 x 0.50 mm
2
Cable wiring IP applications
220/240 Volt applications: 4 x 0.75 mm
2
For details for specific plug codes, see table 11, page 12
Fig. 20.
Fig. 21.
Fig. 22.
Fig. 23.
Description Packing quantity Ordernumber
Switch point ON: 15.5
±
1; switch point OFF: 13
±
1, gold plated contacts, red sealing 48 45.900.438-107
Switch point ON: 15.5
±
1; switch point OFF: 13
±
1, AgNi contacts, blue sealing 48 45.900.438-109
Switch point ON: 12.5
±
1; switch point OFF: 10
±
1, AgNi contacts, green sealing 48 45.900.438-110
Switch point ON: 15.5
±
1; switch point OFF: 13
±
1, AgNi contacts, blue sealing 48 45.900.438-209
1)
Description Packing
quantity
Ordernumber
Cap throtlle valve 1000 45.900.431-008
Gasket for mounting between the gas control and ignition control 2000 45.900.442-007
Gasket for mounting between the gas control and ignition control 192 45.900.442-011
Screw for plug rectifier (45.900.441-xxx) 8000 45.900.445-007
Plug for connecting on coil of the gas control 500 45.900.445-009
6
Cable length
Strip length
80 cable lenght
3 pin rast 5 connector
Lunberg nr. 362303K10
Brown wire connected to st 4-1
Blue wire connected to st 4-2
30
Brown
Blue
Hsg Molex 5557-4r with 2 terminals Molex 5556
Cable length
50
50
AMP F fastin faston 6.35 series
order nr.: 160691-2
Tab housing part nr.: 180916-0
