WEB-700 WEB-700-O CP-700
11 95-7776—01
WEB-700; WEB-700-O; CP-700
Board Layout
Fig. 5 shows the location of connectors, option slots, and other features of the main board in the WEB/CP-700. For side views of
communications ports and other features, see Fig. 7, page 16.

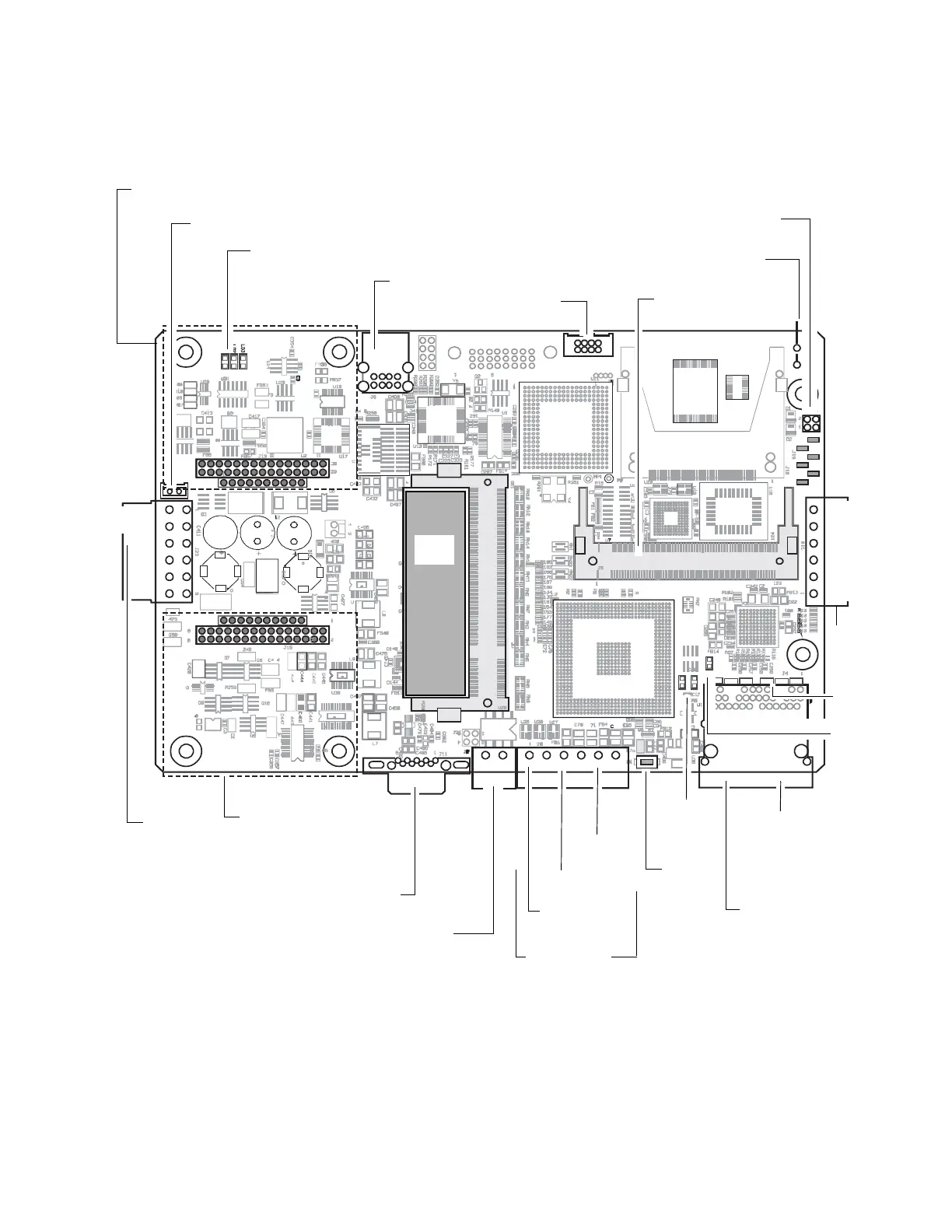

Fig. 5. WEB/CP-700 main board layout details
A WEB/CP-700 controller ships with both option card slots 1 and 2 open. The DDR-2 RAM socket is populated with a 512MB
module. A variety of communications option cards are available, and RAM can also be upgraded. For related details, see the next
section About Expansion Options.
PS
-
OUT
PS + OUT
BB 12V
RS-485
-
RS-485 +
485 GND
PS +
PS
-
NiMH battery connector (keyed)
LEDs for USB hub port activity
Dual USB ports
Earth grounding lug
LED header
Serial mode select jumper
Option card 2 area including socket header
MiniPCI socket
DDR-2
RAM
Option card 1
area including
socket header
RS-232 (DB-9) COM1
External 12V backup battery
GND
RS-485
support of
remote IO
modules
LEDs
LANn
Debug
LED
LAN1
Primary Ethernet
(RJ-45)
LAN2
Secondary
Ethernet
(RJ-45)
From
power
supply
module
Contact Inputs
Door
tamper
UPS battery OK
UPS AC present
LEDs
status,
heartbt
Push-
button
SW1
GND
GND
