WEB-700 WEB-700-O CP-700
3 95-7776—01
WEB-700; WEB-700-O; CP-700
PRODUCT DESCRIPTION
The WEB/CP-700 controller is a compact embedded processor platform using on-board Flash memory for backup, in an
expandable DIN-modular package. Designed for use in commercial environments, the WEB/CP-700 runs the NiagaraAX
Framework to provide integrated control, supervision, and network management solutions for wide variety of networked field
devices. NiagaraAX-3.5 or later is required.
Packaging and Features
The WEB/CP-700 features a DIN-mount controller base with mounting tabs for alternate panel mount. Two available comm
option card slots are accessed under the controller’s removable cover.
Fig. 1 and Fig. 2 show locations of important features of the WEB/CP-700.

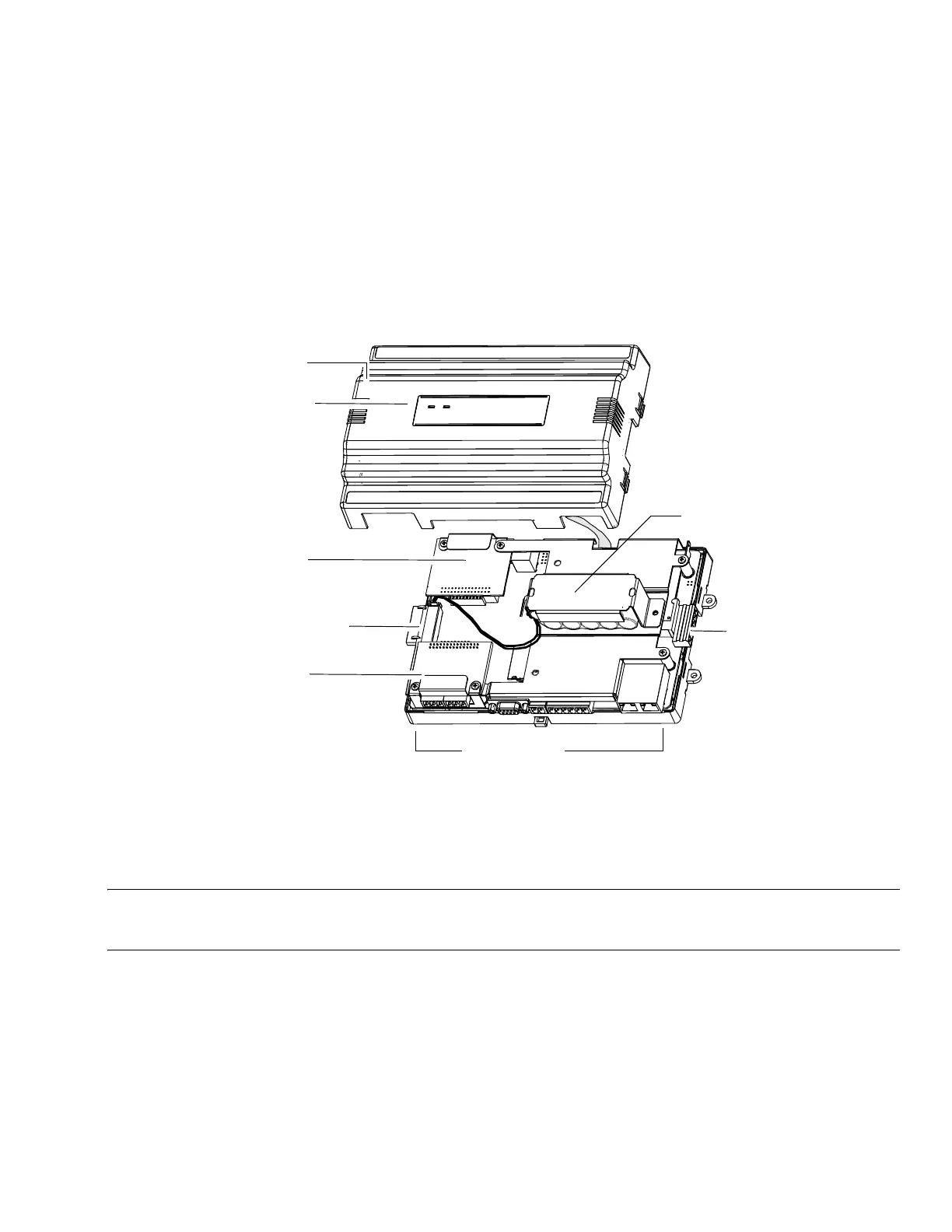

Fig. 1. WEB/CP-700 Cover removed with 2 options installed on main board.
Typical installation requires an NPB-PWR-UN-H universal power supply module (furnishing 15Vdc) for power, attaching to the
controller’s left side. An RS-485 port is on the controller’s opposite right end connector, along with 15Vdc power for support of
remote I/O expansion modules, either chained directly and/or wired remotely.
NOTE: Instead of using the NPB-PWR-UN-H power supply module, you can adapt an NPB-WPM-US wall mount AC power
adapter to power the WEB/CP-700 controller. However, you cannot directly attach I/O expansion modules in this config-
uration, nor power remote I/O modules from that NPB-WPM-US.
Removable cover
Status and heartbeat LEDs
Option card #2 area
(card shown installed)
Option card #1 area
(card shown installed)
Connector for NPB-PWR-UN-H
power supply module
NiMH backup
battery pack
RS-485, 15V Power
Output Connector
Connector ports
