TAB MOUNTING DIMENSIONS
Measurements are in inches and (mm). DIN mounting is recommended over tab mounting. See Fig. 3, page 9.
NOTE: Electronic and printed versions of this guide may not show the dimensions to scale.
Verify all measurements before drilling.

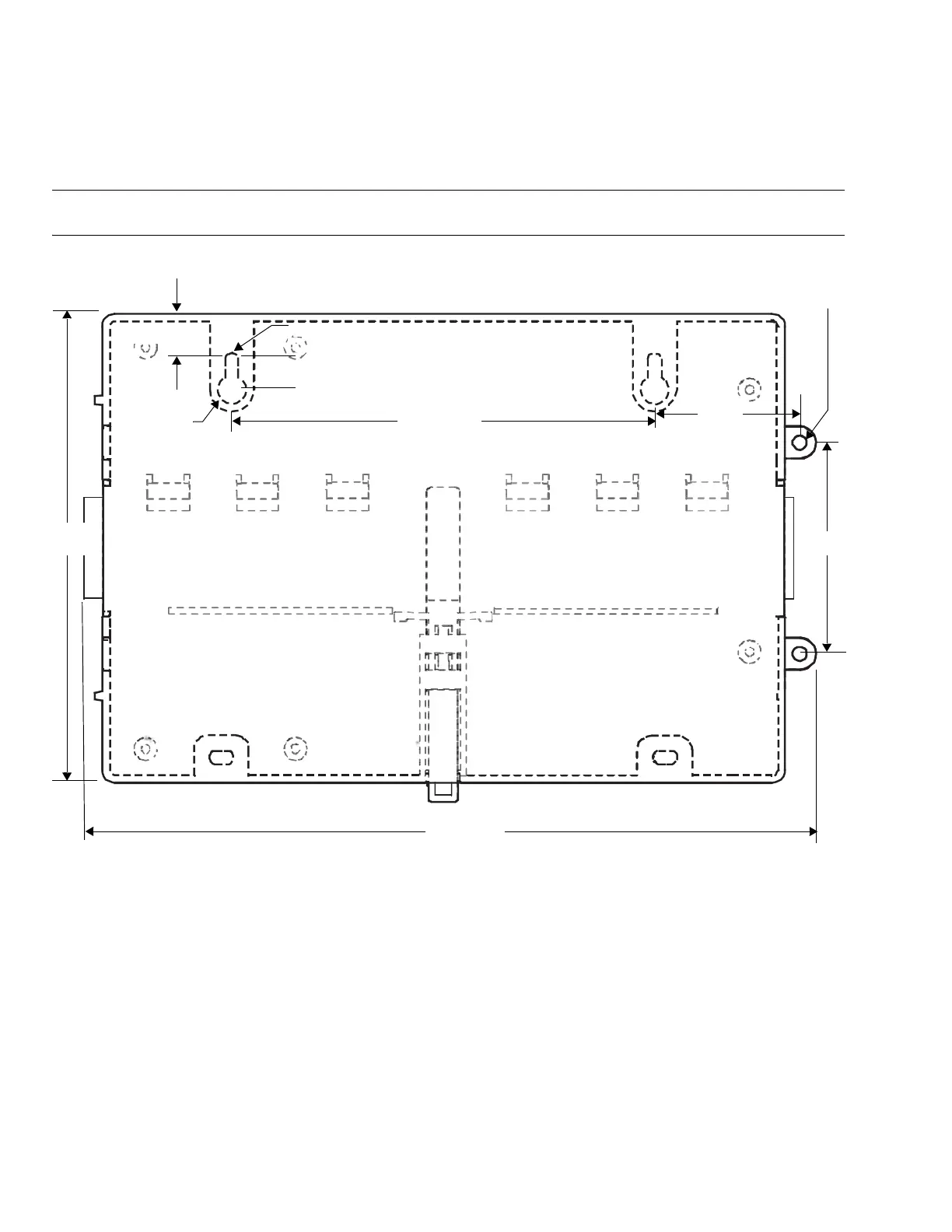

Fig. 14. WEB/CP-700 tab mounting dimensions.
0.1590" Dia. (4.04)
0.98" (24.9)
0.334"
Dia. (8.5)
0.35" (8.9)
5.0" (127)
1.72"
(43.7)
0.170" Dia. (4.32)
8.7" (221)
5.6"
(142)
2.50"
(63.5)
