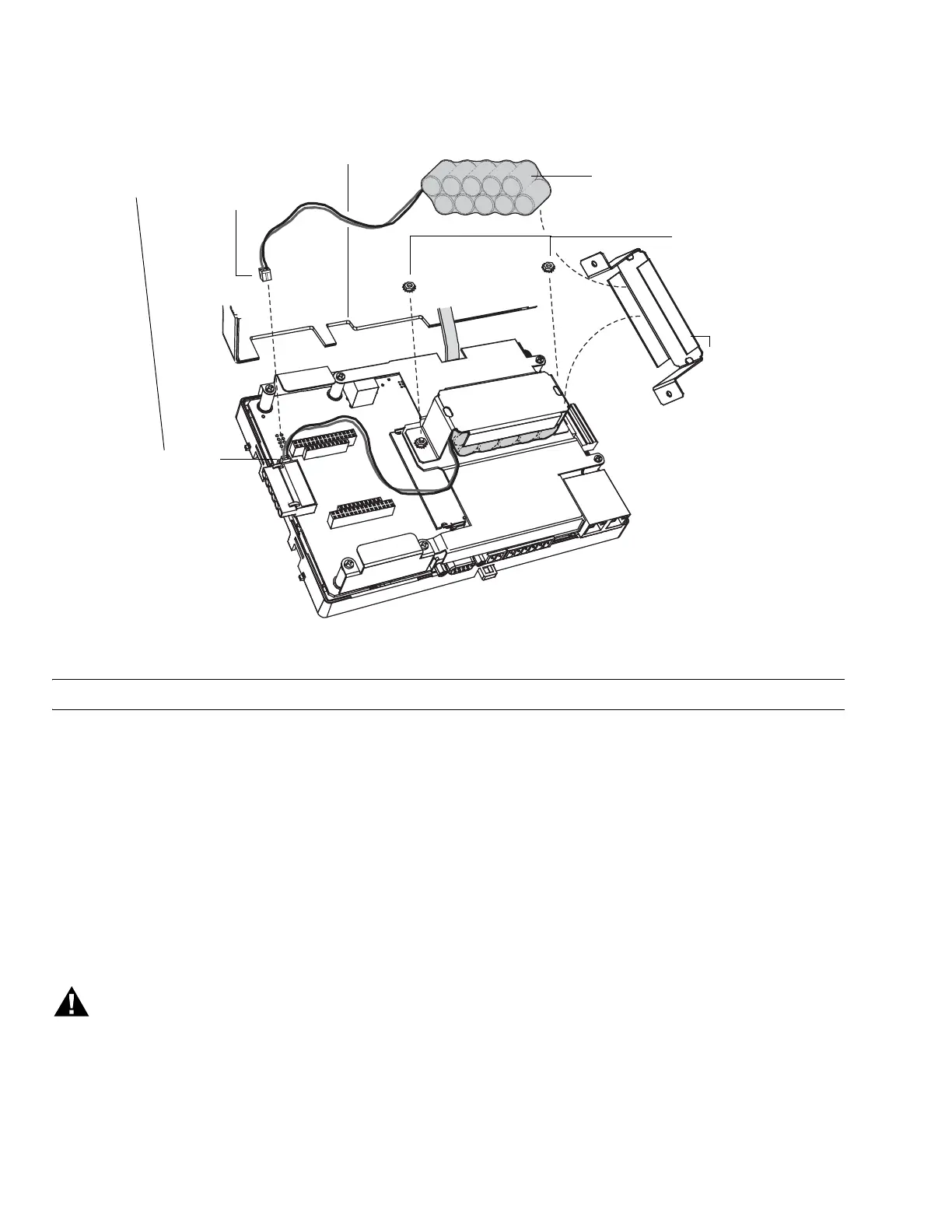

Fig. 13. Replacing NiMH battery pack in WEB/CP-700.
NOTE: Dispose of the used NiMH battery properly.
4. Unplug the NiMH battery from the main board connector (see Fig. 13).
5. Using a 1/4" (6mm) nutdriver, unfasten and retain the two kep nuts that secure the metal battery bracket to the shield, and
remove the shield and battery pack.
6. Put the replacement battery into the metal shield, and refasten back into place on the shield, using the two kep nuts. Hand
tighten with a nutdriver.
7. Plug the battery connector plug of the replacement battery into the NiMH battery connector on the main board of the WEB/
CP-700. The connector is keyed—you cannot plug the battery in reversed.
8. Replace the cover.
9. Restore power to the WEB/CP-700 and verify normal operation.
BATTERY DISPOSAL
Please dispose of the used NiMH battery in accordance with local, state, and federal regulations.
WARNING
Do not incinerate or mutilate the battery, as this may cause it to burst or release toxic materials.
If regulations specify returning the old battery to a recycling center, but no acceptable recycling center can be found, please
return the old NiMH battery pack to Tridium for proper disposal.
Cover removed
NiMH battery
connector on
controller board
NiMH battery pack
(NPB-BATT-7)
Unplug/plug NiMH battery
from/to connector
1/4" (6mm) Kep nuts (2)
fasten battery bracket to
shield
Battery
bracket
