XNX Universal Transmitter
Installation and Operation
94
Range/Alarm Settings

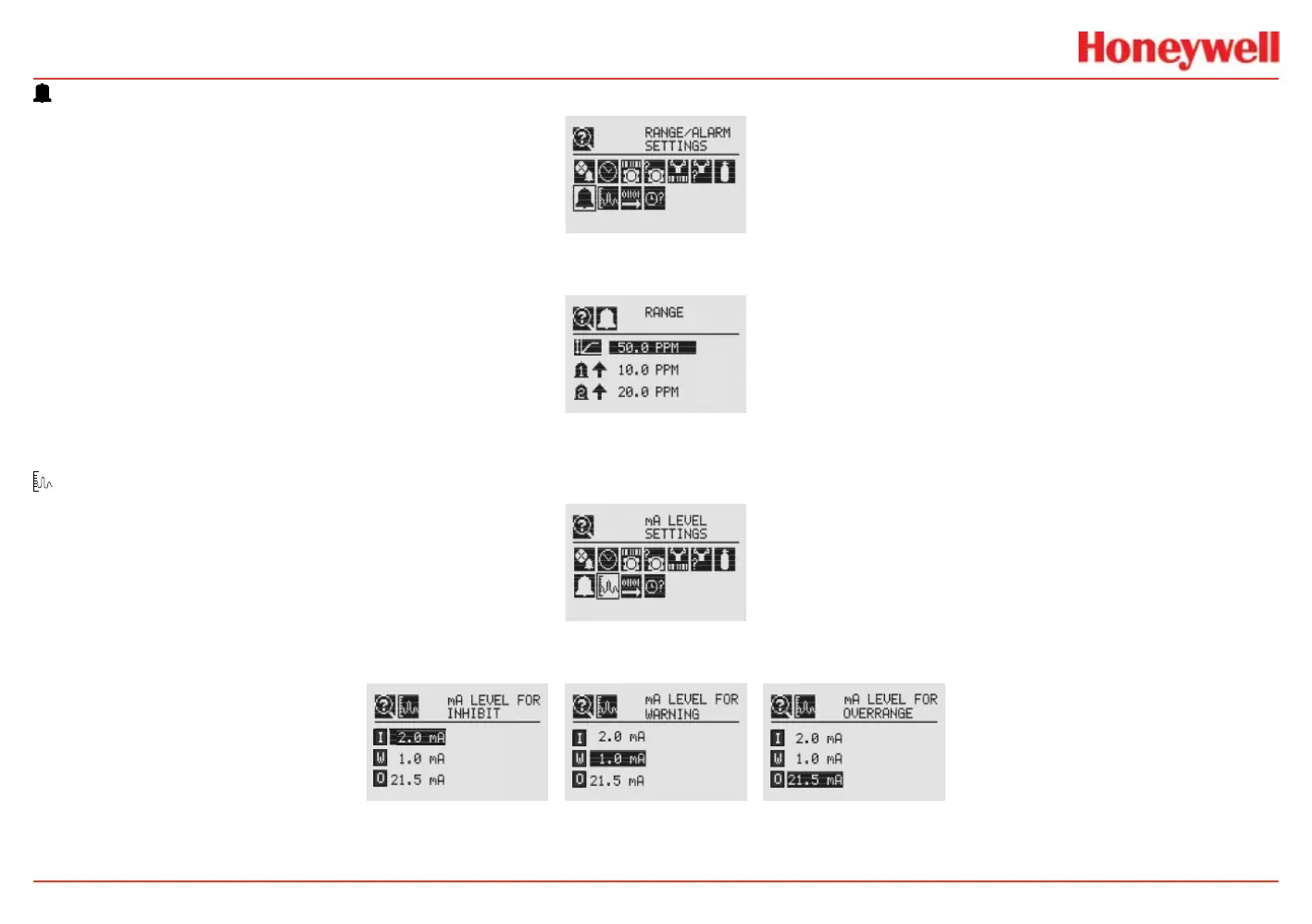

Figure 176. Range/Alarm Settings screen
Range/Alarm Settings displays the currently congured alarm information.
Figure 177. Alarm Display Rang screen
mA Level Settings
Figure 178. mA Level Settings screen
The mA Level Settings section shows the current values for mA output for Inhibit, Warning, and Overrange output.
Figure 179. mA Output Inhibit, Warning and Overrange screens.
