XNX Universal Transmitter Quick Start Guide
21
CAUTION
Be certain to dress the wires properly to ensure cabling does not contact switches 1-2 on the back of
the POD.
Do not force the POD into the enclosure as it may indicate an interference condition resulting in
damage to the wiring, POD or switch settings.
EC
Adaptor
Optional Local HART
IS Barrier must
be connected to J1
EC IS Barrier must
be connected to J2
4
3
2
1
-
+
6
5
J1 HART
S1 S2
J2 EC Barrier
Terminal Block 1
Loc
a
l
HAR
T
I
S
Barri
e
r
(op
t
ional)
HART
Adaptor
EC IS Barrier
Sensor Cartridge
Weatherproof Cap
Sensor Retainer
Sensor Cartridge
Weatherproof Cap
Sensor Retainer
Local Sensor Mounted to Transmitter
Sensor Mounted to
Remote Sensor Kit
FOR FM COMPLIANCE, THE SUPPLIED TAG
WITH XNXXSH1FM, XNXXSC1FM, AND
XNXSO1FM CARTRDIGES MUST BE
ATTACHED TO THE TRANSMITTER OR
REMOTE MOUNT KIT WHERE INSTALLED.

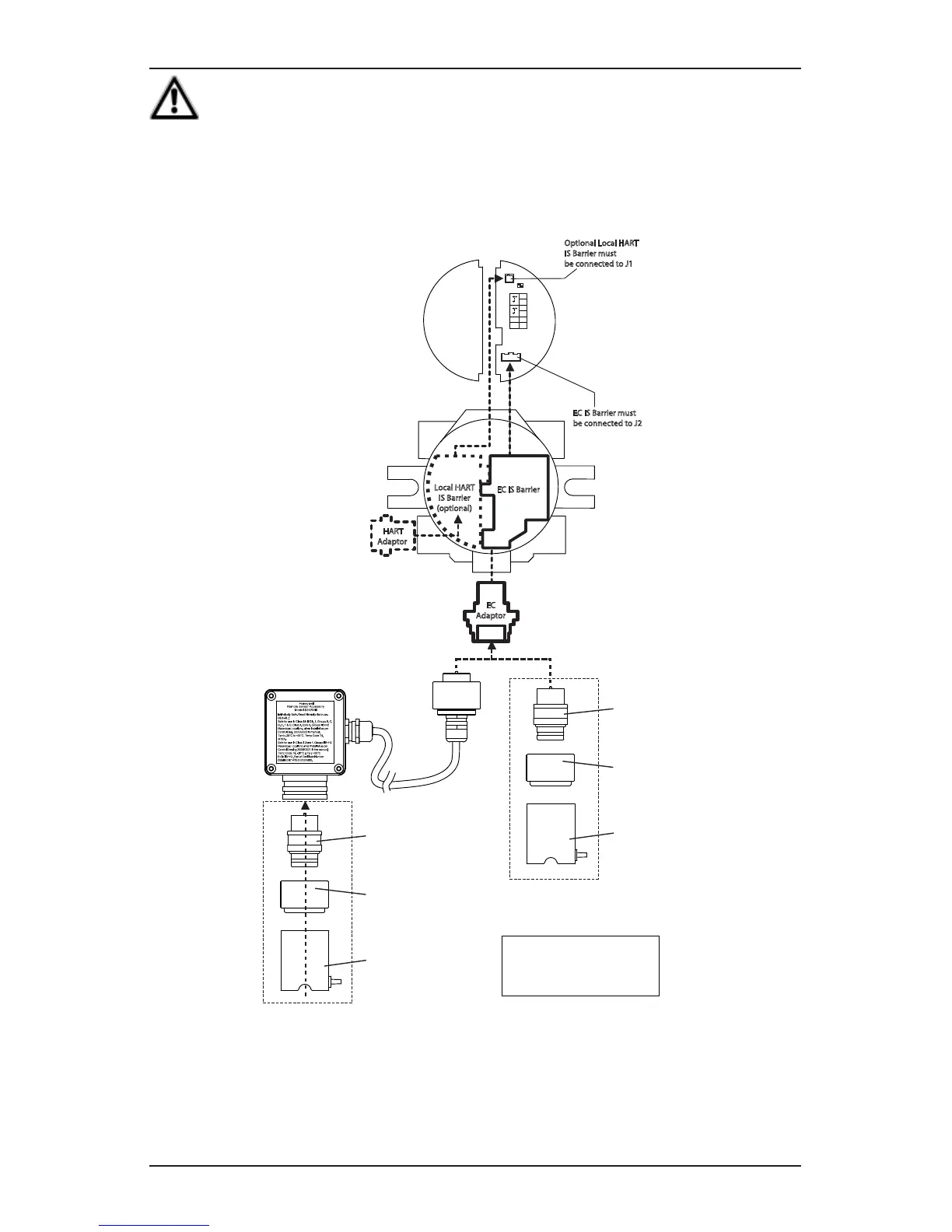

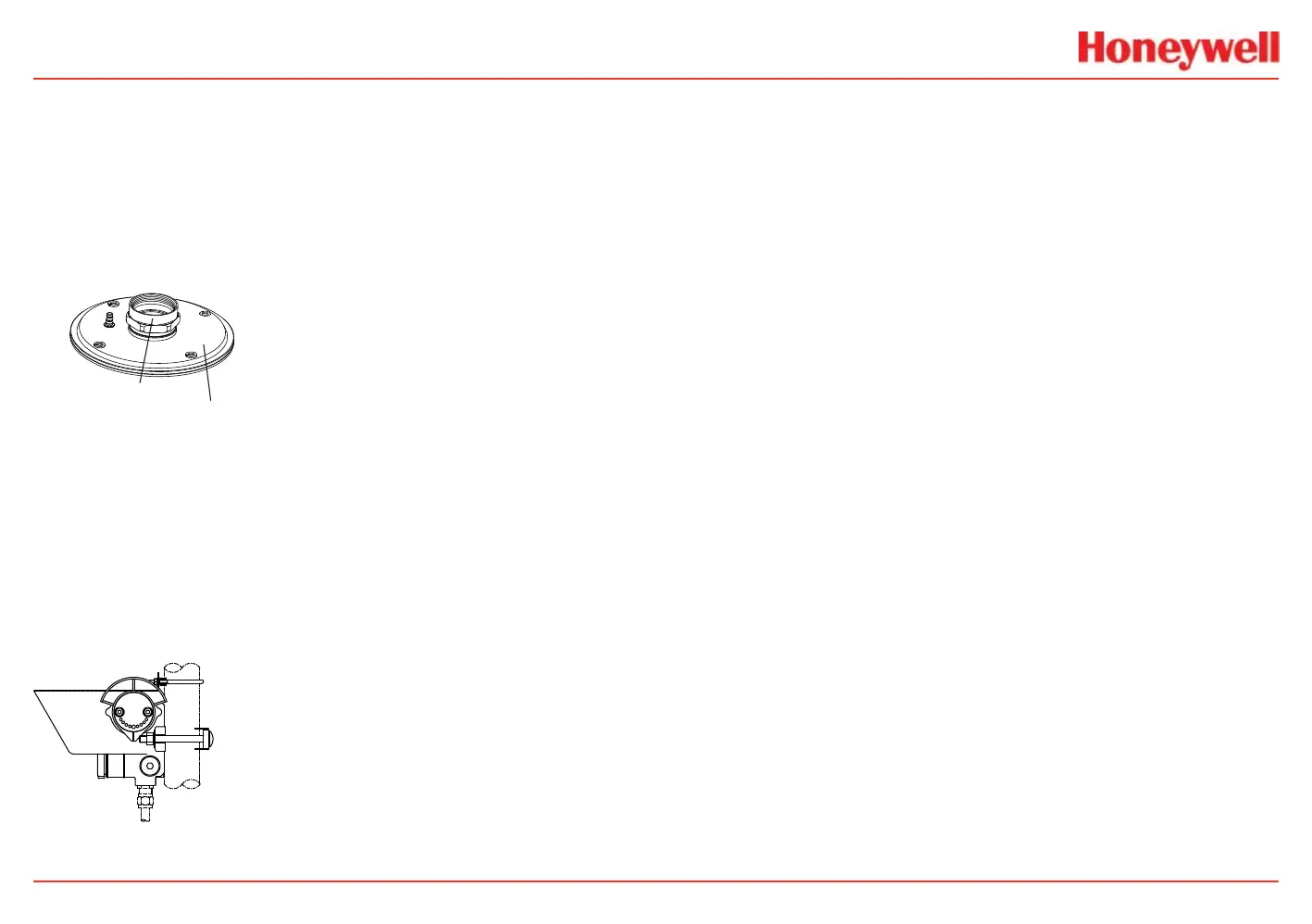

Figure 10. EC personality wiring
NOTE:
Refer to control drawing 3000E3159 for installation requirements for EC
cells and remote mounting.
To Next Page
