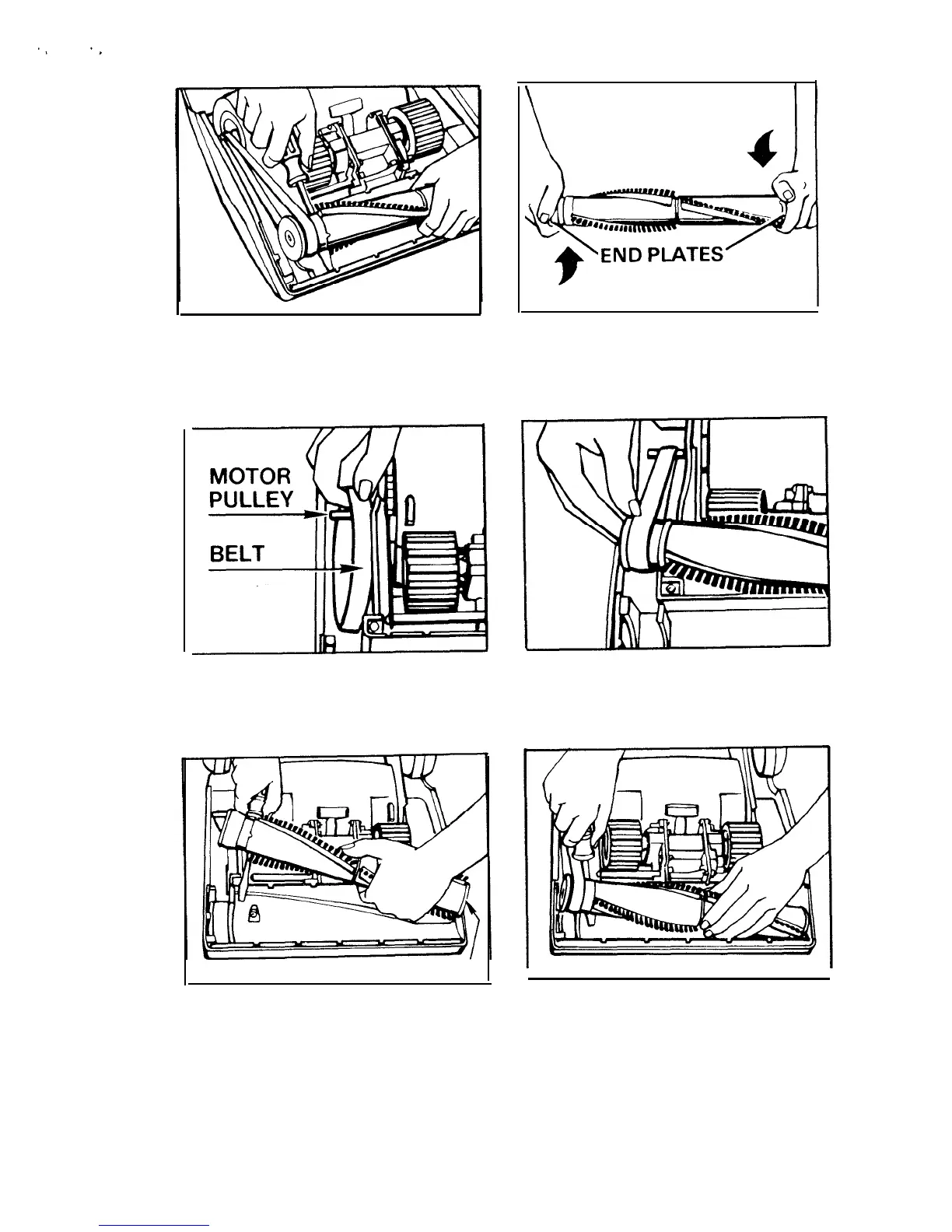

4. Use one hand to remove the
agitator as you use leverage to lift
the agitator with the end of the
screwdriver. Remove old belt.
5. If the end plates have loosen-
ed, tighten them by turning in op-
posite directions.
6. Place one end of the new belt over the metal motor pulley. Lettering
on belt should be visible and not against pulleys. Slip the other end
around the plastic pulley end of the agitator. (See illustration)
AGITATOR END PLATE
7. Grasp the agitator frimly with
one hand. (Be sure you can see
the agitator end plate.) Engage
screwdriver in groove (as shown)
for leverage.
8. Lift and pull using screwdriver
as a lever. Guide the end opposite
the belt into position first.
16
