Removing Lens
4.15 Using a screwdriver, remove the two screws
as shown and lift off lens.
Installing Bulb
4.16 Pull old bulb straight out of socket. Push new
bulb straight into socket until locked in place.
Excessive force is not required.
Replacing Lens
4.17 Reposition lens and secure with the two
screws.
HEADLIGHT: How to Replace
(Available on select models only)
What to Buy:
Headlight
This cleaner uses a
12 volt, wedge base
type 912 bulb,
Hoover
®
part No.
27313-107.
WARNING
! !
To reduce the risk of electric shock, unplug
vacuum before cleaning or servicing.
4.14
4.12

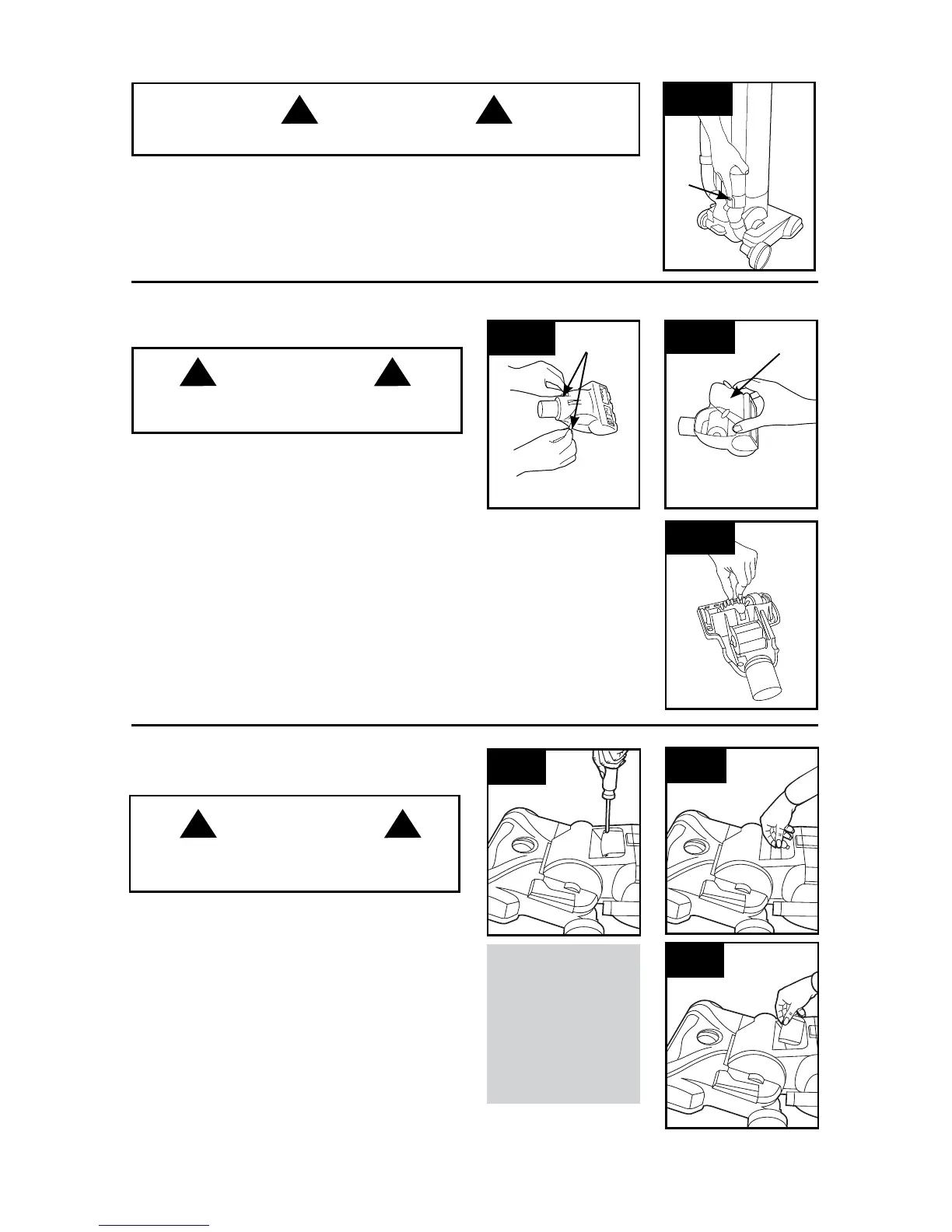

4.12 Turn tool so bottom faces up. Rotate the
latches (A) on either side of tool.
4.13 Remove bottom plate (B).
4.14 Remove any debris and/ or hair from brushroll.
Replace bottom plate by aligning tabs along front
edge of tool. Rotate latches back into locked position.
A
POWERED HAND TOOL: How to Clean
(Tool varies per model)
4.13
B
HOSE: How to Clean
4.11
A
CAUTION
! !
To reduce the risk of injury from moving parts, unplug vacuum before servicing.
4.11 To remove Hose for tool use or for maintenance, press the Hose Release
Button (A) and pull Hose end out.
Clear away debris or obstructions from Hose. Do not use sharp objects to clean
out hose as they can cause damage. To lock back into place, push Hose into
Hose Tube until you hear a click.
CAUTION
! !
To reduce the risk of injury from moving parts,
unplug vacuum before servicing.
4.15
4.16
4.17
Actual model may vary from images shown.
