7.7 Analog Input Configuration

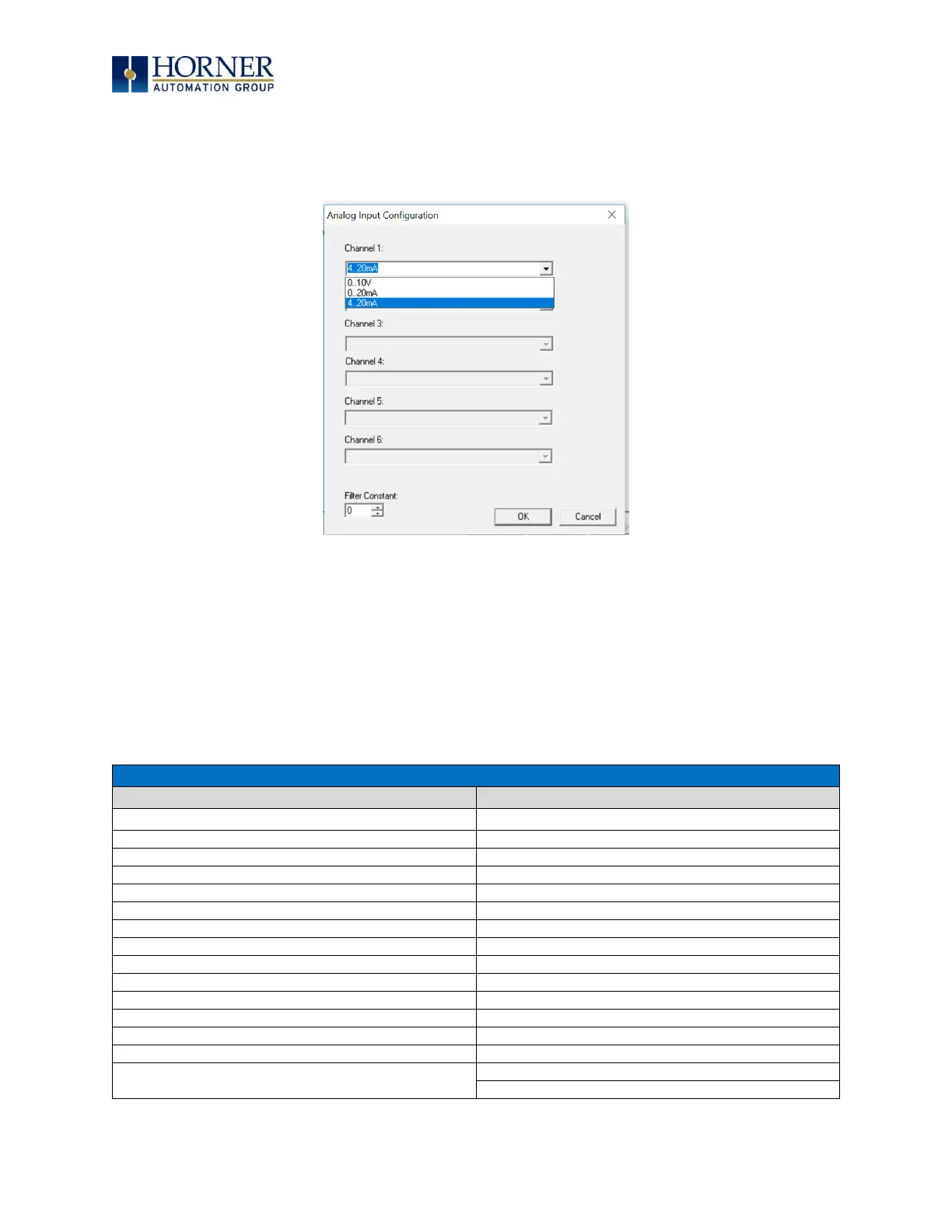

The following figure illustrates the Analog Input Configuration dialog.
Figure 7.9 – Analog Input Configuration Dialog
The Channel x drop down windows allow the user to specify the mode for each analog input to operate.
The Channel x drop down windows are enabled/disabled according to which model is being configured.
All the models have the following modes available:
- 0..10V
- 0..20mA
- 4..20mA
On Model 5 and Model 6 I/O, other options on channels are outlined below:
Table 7.2 – Analog In for Models 5 & 6
Model 5
Model 6
Channels 1 & 2
Channels 1-6
0..10V
0..10V
0..20mA
0..20mA
4..20mA
4..20mA
100mV
Disable
PT100 DIN RTD, 1/20°C
0-60mV
Type J Thermocouple, 1/20°C
PT100 DIN RTD, 1/10°C
Type K Thermocouple, 1/20°C
PT1000 DIN RTD, 1/10°C
Type N Thermocouple, 1/20°C
Type J Thermocouple, 1/10°C
Type T Thermocouple, 1/20°C
Type K Thermocouple, 1/10°C
Type E Thermocouple, 1/20°C
Type N Thermocouple, 1/10°C
Type R Thermocouple, 1/20°C
Type T Thermocouple, 1/10°C
Type S Thermocouple, 1/20°C
Type E Thermocouple, 1/10°C
Type B Thermocouple, 1/20°C
Type R Thermocouple, 1/10°C
* The Filter Constant provides filtering to all channels.
Type S Thermocouple, 1/10°C
Type B Thermocouple, 1/10°C
