Instructions for Use

ComPass B 4023841-001

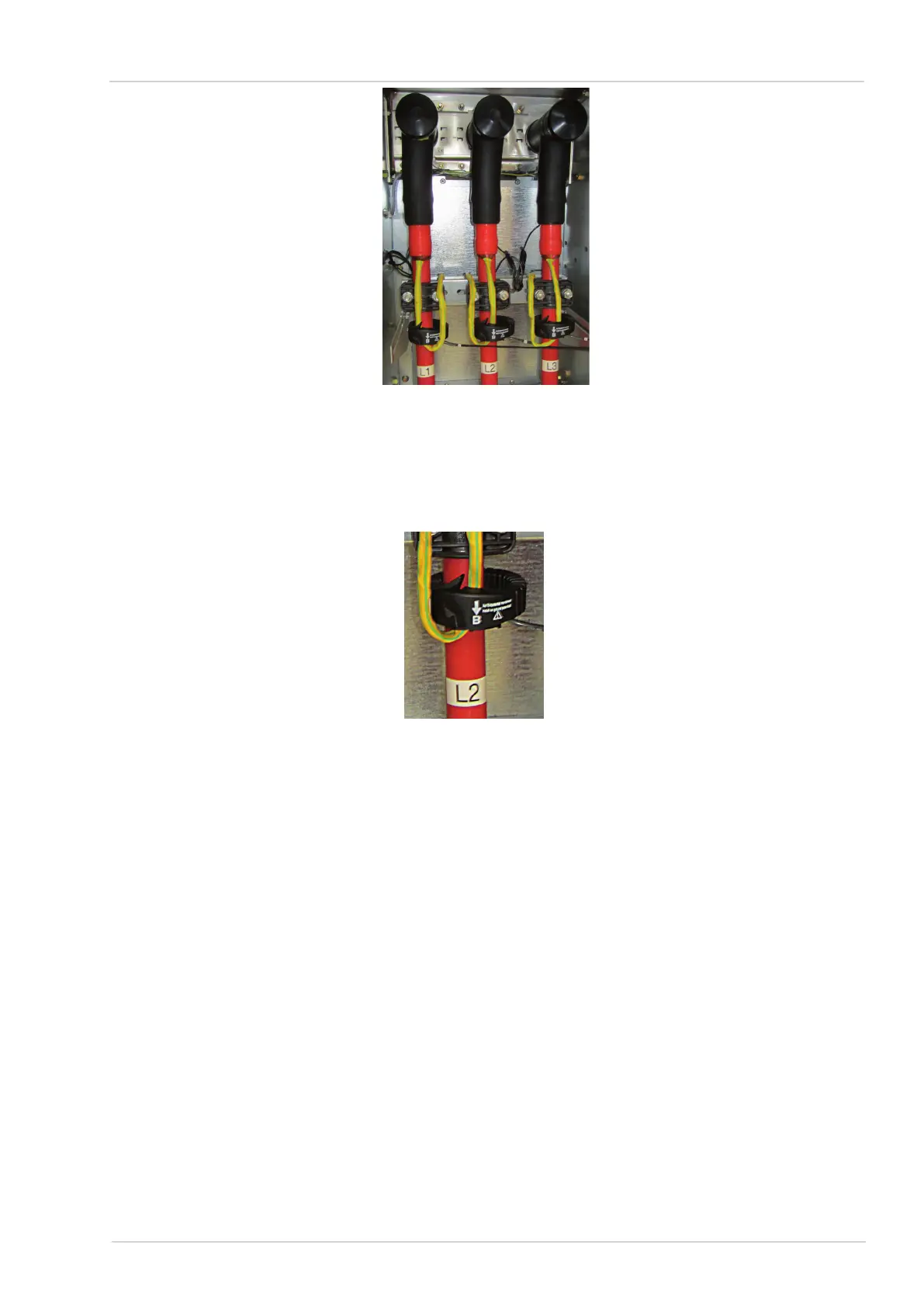

Installation of current transformersFigure 18:

Installation of single-phase current transformers4.3.2.

Install each CT as to ensure that the arrow and the "↓B" show towards the bottom of the switchgear.

Direction indication "↓B"Figure 19:

Installation of summation current transformers4.3.3.

Wrap the CT around all 3 conductors and install it such that the arrow and the "↓B" show towards

the bottom.
