Instructions for Use
ComPass B 4023841-001

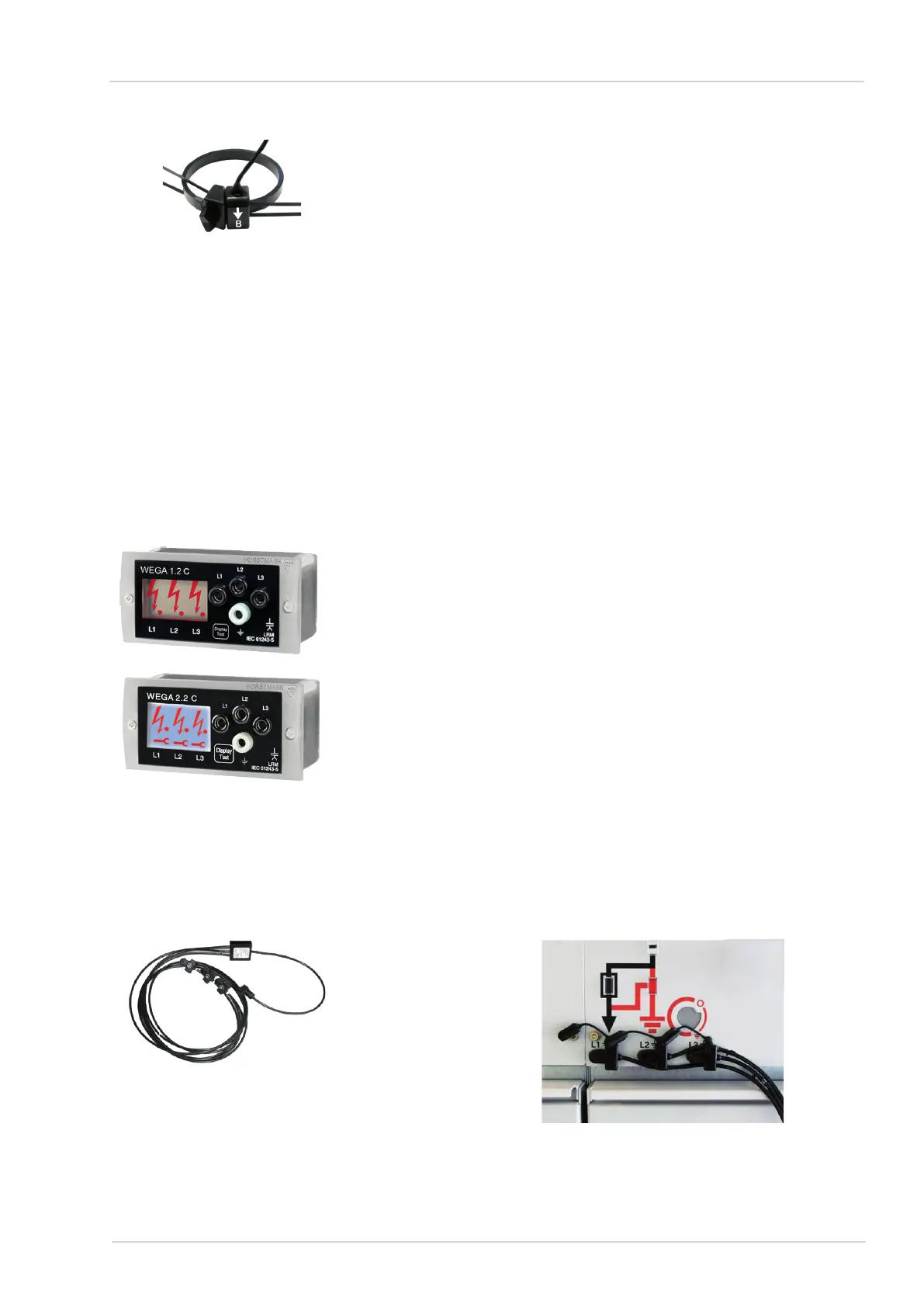

Split core summation current transformer for earth fault detection, for cable diameters ran-•
ging from 40 to 105 mm (Order No.: 49-6023-xxx).
Split core summation current transformer Figure 3:
Make sure current transformers are mounted only on fully insulated i. e. touch-safe conductors.
WEGA 1.2 C and WEGA 2.2 C2.4.
The WEGA 1.2 C or the WEGA 2.2 C is designed as a maintenance-free integrated voltage detec-
ting system that serves to detect and indicate the operating condition of medium-voltage installati-
ons according to VDE 0105, Part 1 and Part 100. The instruments comply with the requirements of
the VDE 0682 Part 415 standard (IEC 61243-5) for capacitive voltage detecting systems.
Besides their main function, WEGA 1.2 C and WEGA 2.2 C, respectively, can provide the tapped
capacitive voltage to the ComPass B in order to measure and detect the fault direction and load
ow.
Integrated Voltage Detecting System WEGA 1.2 C Figure 4:
(without relay contacts)
Integrated Voltage Detecting System WEGA 2.2 C (with relay) Figure 5:
HR-interface cable set2.5.
The HR-interface cable set is used to tap the voltage at capacitive measuring points which is re-
quired for the direction decision and the detection of faults and load ow direction. Various types
are available to cope with different requirements (cable length, connectors) of switchgears offered
in the market.
HR-interface cable setFigure 6:
Example for applicationFigure 7:
5
Dipl.-Ing. H. Horstmann GmbH
