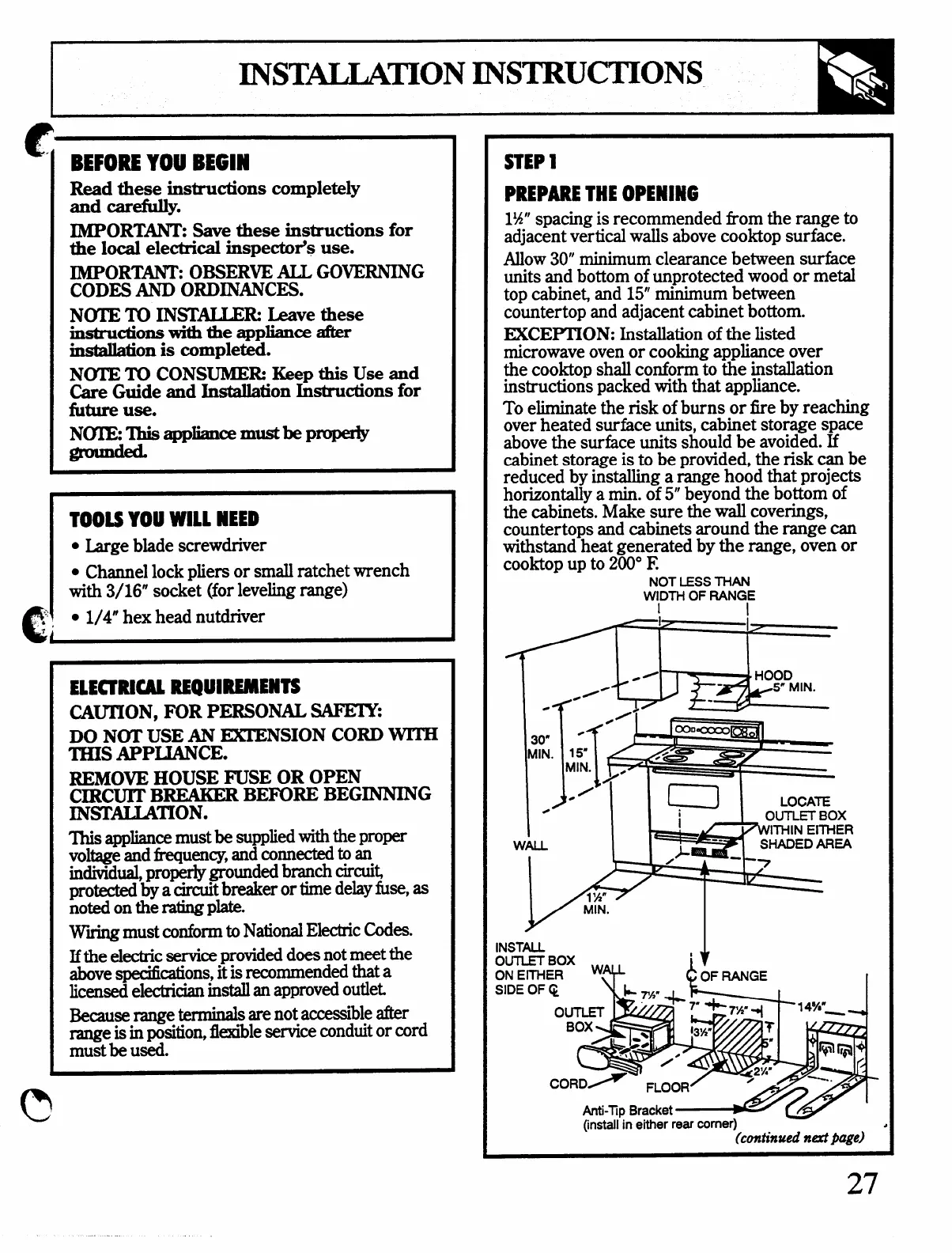

INST_TtON INSTKXTIONS
R
BEFOREYOU BEGIN
Read these instructions completely
and UUK&d&.
IMPORT- Save these instructions for
the local electrical inspecto~s use.
IMPORTANT: OBSERVE ALL GOVERNING
CODES AND ORDINANCES.
N~ TO INSIXI.LER Leave these
instructions with the appliance after
imtdhtion is completed.
NUI’E ~ CONSUMER Keep this Use and
Care Guide ad Installation Instructions for
filture use.
N~. This appliance must be propedy
-~
TOOLS YOU WILL HEED
● Large blade screwdriver
● Channel lock pliers or small ratchet wrench
with 3/16” socket (for leveling range)
6
.\
&
Q1/4” hex head nutdriver
ELECTRICALREQUIREMENTS
CAUTION,FOR PERSONM ~
DO NCYI’USE AN EXI’ENSION CORD WITH
THIS APPLJANCE.
REMOVE HOUSE FUSE OR OPEN
CIRCUIT BREAKER
BEFORE BEGINNING
INSHKLKIION.
l’his appliance must be supplied with the proper
voltage and frequency, and connected to an
individd properly grounded branch circuit
protected by a circuit breaker or time delay fuse, as
noted on the rating plate.
W@ must conform to National Electric Cudes.
Ifthe electric service provided does not meet the
above specifications, it is recommended that a
licensed electrician install an approved outlet
Because range &minds are not accessible aikr
range is in position, flexible service conduit or cord
must be used.
PREPARE THE OPENING
1?4”spacing is recommended ffom the range to
adjacent vertical walls above cooktop surtice.
Allow30”minimum clearance between surfitce
units and bottom of unprotected wood or metal
top cabinet and 15” minimum between
countertop and adjacent cabinet bottom.
EXCEPTION:Installationof the listed
microwave oven or cooking appliance over
the cooktop shall conform to the installation
instructions packed with that appliance.
To eliminate the risk of burns or fire by reaching
over heated surface units, cabinet storage space
above the surface units should be avoided. If
cabinet storage is to be provided, the risk can be
reduced by installing a range hood that projects
horizontally a min. of 5“ beyond the bottom of
the cabinets. Make sure the wall coverings,
countertops and cabinets around the range can
withstand heat generated by the range, oven or
Cooktop up to 200° E
NOT LESSTHAN
WIDTH OF RANG~
Y
MIN.
INSTU
OUTLET BOX
I
w,+
(!
+
ON EITHER
OF RANGE
I
SIDE OF
I
BOX4
CORD=
“00= “
Anti-TIpBracket
finstallin either rearcorned —
d
.–
‘(continualnatlwd
27
To Next Page
