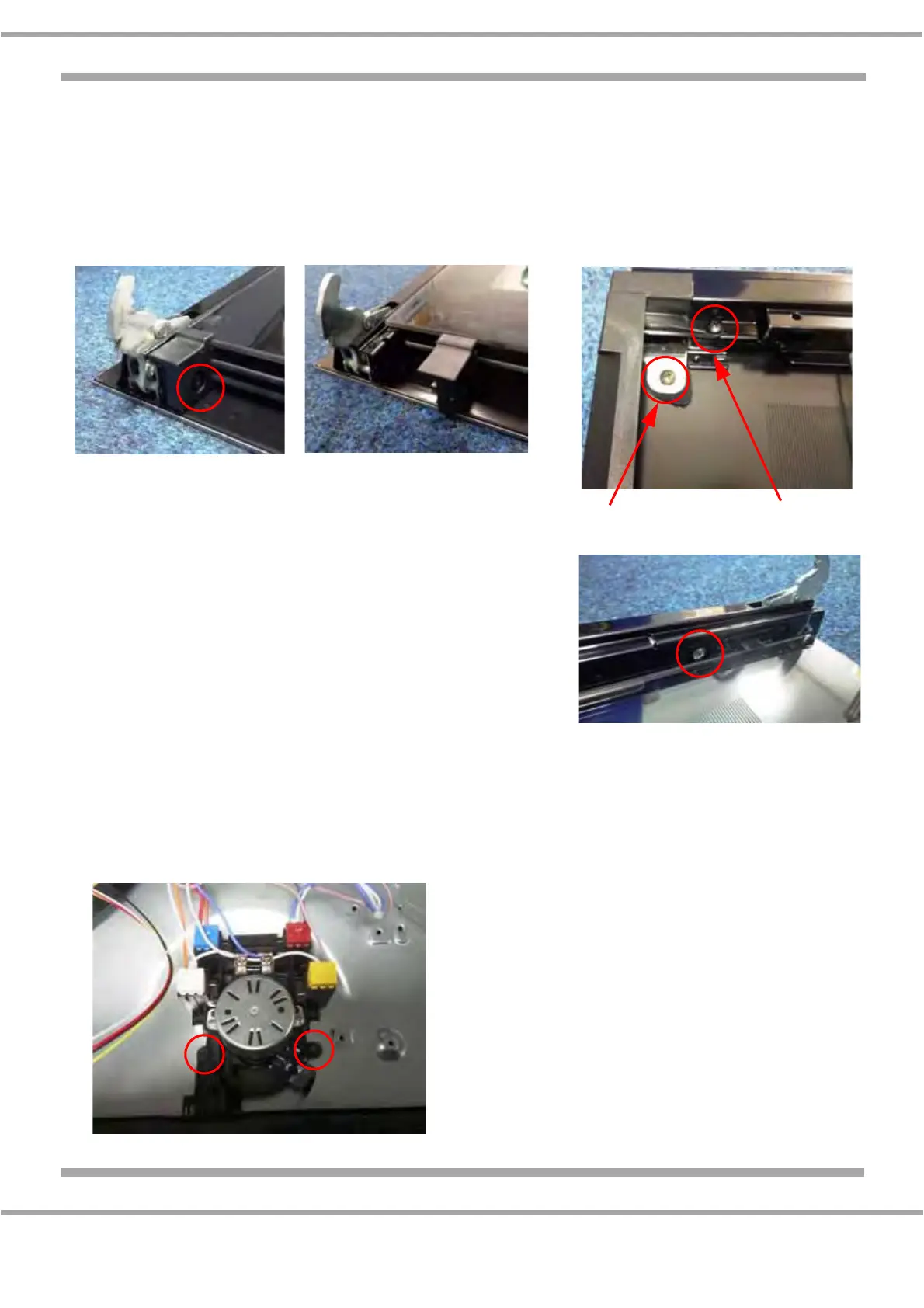

12) Oven Door Disassembly
a) Remove the oven door (see 1) and rest it on a soft surface with the handle downwards.
b) At the bottom of the door, remove the 2 lower screws from the left hand and right hand glass panel
retainers (Fig. 4) and slide away (Fig. 5). The innermost door glasses can now be lifted away after
carefully noting their positions and the 'R' on the door glasses.
c) The screws securing the top door trim can now be accessed and also the handle securing screws
are now accessible, Fig. 6.
d) The screws securing the door hinges can be accessed if
required, Fig. 7.
e) Reassemble in reverse order, ensuring the correct orientation
of the inner door glasses and that the glasses are all pushed
back into place before sliding the glass retainers into position.
13) Door Lock
a) Remove the oven from its housing (see 2).
b) Remove the top cover (4 screws).
c) Noting the wiring connections, remove the 2 screws securing the door lock and lift away.
Fig. 4 Fig. 5
Fig. 6
Handle
Top Door Trim
Fig. 7
Fig. 8
