x Page 7 xPre-Delivery Instructions Page 7
FLAIR
®
(Model FLR)

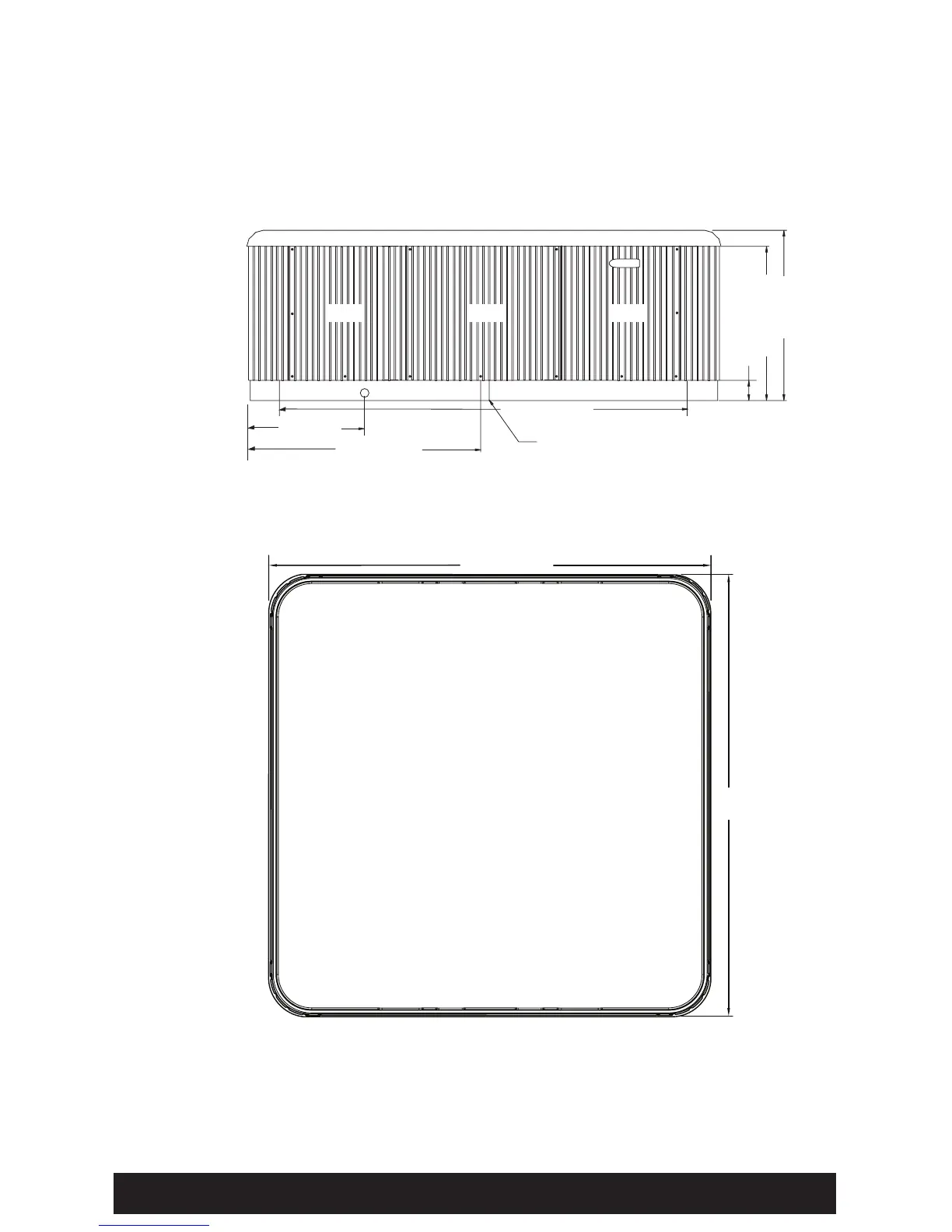

Dimensions
NOTE: All dimensions are approximate; measure your spa
before making critical design or pathway decisions.
NOTE: Watkins Manufacturing Corporation recommends that the Flair be installed on a minimum 4” (10 cm) thick
reinforced concrete pad or structurally sound deck able to support the “dead weight” found in the spa specification
chart.
WARNING: The Flair must not be shimmed in any manner.
FLAIR
84” (213.4cm)
84"
(213.4cm)
3.5" (8.9 cm)
32.5" 82.6 cm)
36" (91.4 cm)
65 1/2" (166.4 cm)
19” (48.3 cm)
69.5” (176.5 cm)
31” (78.7 cm)
(Bottom view)
(Front view)
Upside Down View
of Spa
Door
Drain
Electrical Cutout 1.5" (4.4 cm)
DoorDoor
