Pre-Delivery Instructions Page 10
PRODIGY (HN)

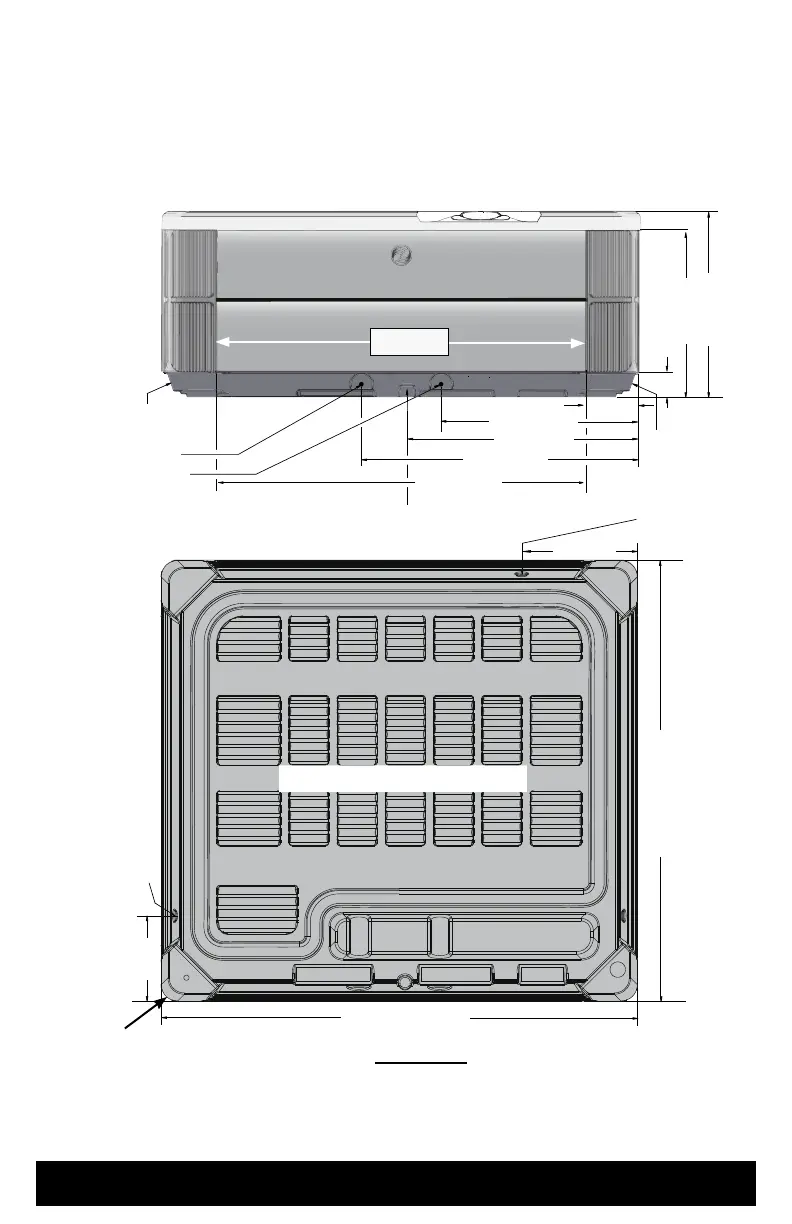

Dimensions
NOTE: All dimensions are approximate; measure your spa
before making critical design or pathway decisions.
Configuration and location may change without notice.
NOTE: WATKINS WELLNESS recommends that the PRODIGY be installed on a minimum 4” (10 cm) thick
reinforced concrete pad or a deck that is able to withstand more than 130 lbs/ft
²
(620 kg/m
²
).
WARNING: The PRODIGY must not be shimmed in any manner.
76.5" (194.3 cm) Base Pan
65" (165.1 cm)
48.75" (123.8 cm)
4.5 " (11.4 cm)
29 " (73.7 cm)
33" (91.4 cm)
Prodigy
40.5" (102.9 cm)
9" (22.9 cm)
34.75" (88.3 cm)
82.5" (209.5 cm) Base Pan
15"
(38 cm)
20" (50.8 cm)
84" (213 cm) Overall
78" (198 cm) Overall
DOOR
(Front view)
(Left side)
RADIUS
3" (7.6 cm)
Back Electrical
Connection
MAIN DRAIN
SECONDARY DRAIN
ELECTRICAL CONNECTION
(2.5" (6.5 cm) from ground)
ELECTRICAL
CONNECTION
(2.5"
(6.5 cm) from
ground)
Front Electrical
Connection
Electrical Connection (Both sides)
DOOR SIDE
TOP VIEW OF SPA BOTTOM
To Next Page
