SOVEREIGN (IIN)

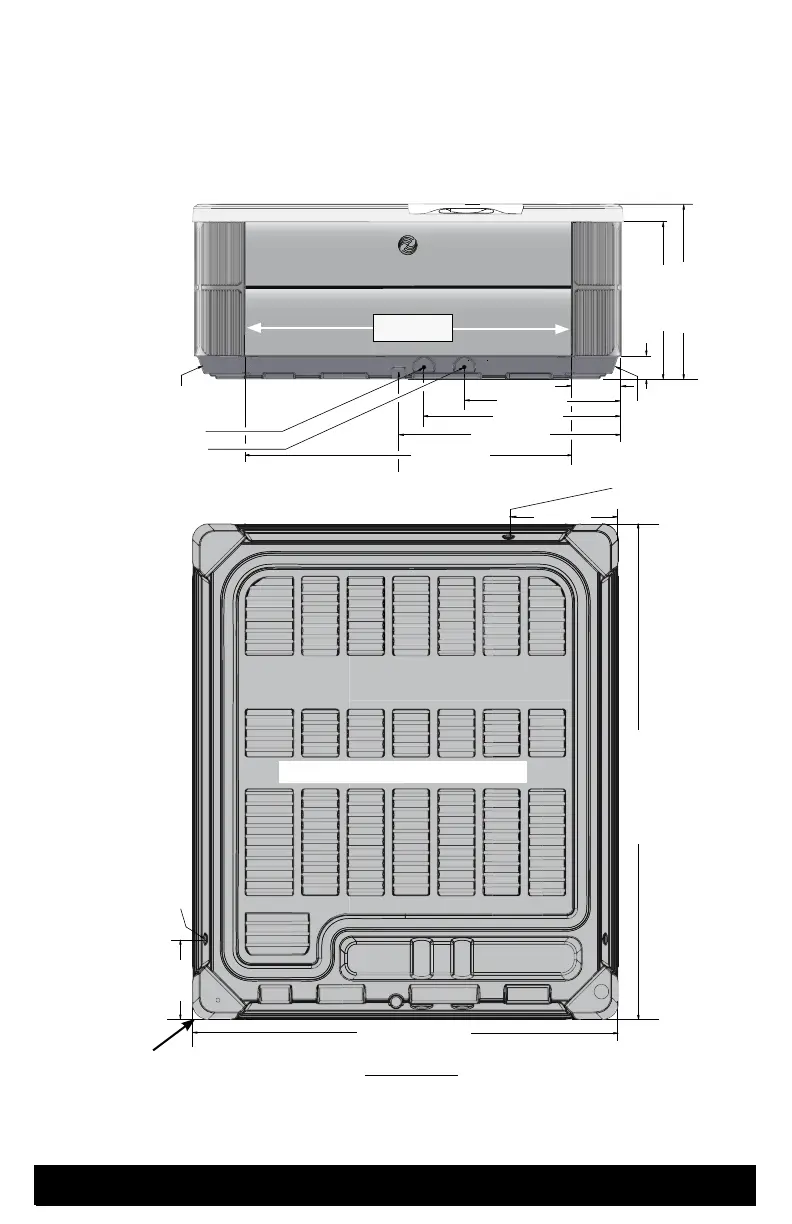

Dimensions
NOTE: All dimensions are approximate; measure your spa
before making critical design or pathway decisions.
Configuration and location may change without notice.
Pre-Delivery Instructions Page 8
NOTE: WATKINS WELLNESS recommends that the SOVEREIGN be installed on a minimum 4” (10 cm) thick
reinforced concrete pad or a deck that is able to withstand more than 115 lbs/ft
²
(555 kg/m
²
).
WARNING: The SOVEREIGN must not be shimmed in any manner.
60.75" (154.3 cm)
41.25" (104.8 cm)
4.5 " (11.4 cm)
29 " (73.7 cm)
33" (91.4 cm)
91.5" (232.4 cm) Base Pan
Sovereign
36.5" (92.7 cm)
9" (22.9 cm)
78.5" (199.4 cm) Base Pan
15"
(38 cm)
29.0" (73.7 cm)
20" (50.8 cm)
80" (203 cm) Overall
93" (236 cm) Overall
(Front view)
(Left side)
RADIUS
3" (7.6 cm)
MAIN DRAIN
SECONDARY DRAIN
ELECTRICAL CONNECTION
(2.5" (6.5 cm) from ground)
Electrical Connection (Both sides)
DOOR SIDE
DOOR
Back Electrical
Connection
ELECTRICAL
CONNECTION
(2.5"
(6.5 cm) from
ground)
Front Electrical
Connection
TOP VIEW OF SPA BOTTOM
