HotSpring HIGHLIFE Series User Manual

Page 35
VANGUARD (MODEL VVE) & ARIA (MODEL ARE)

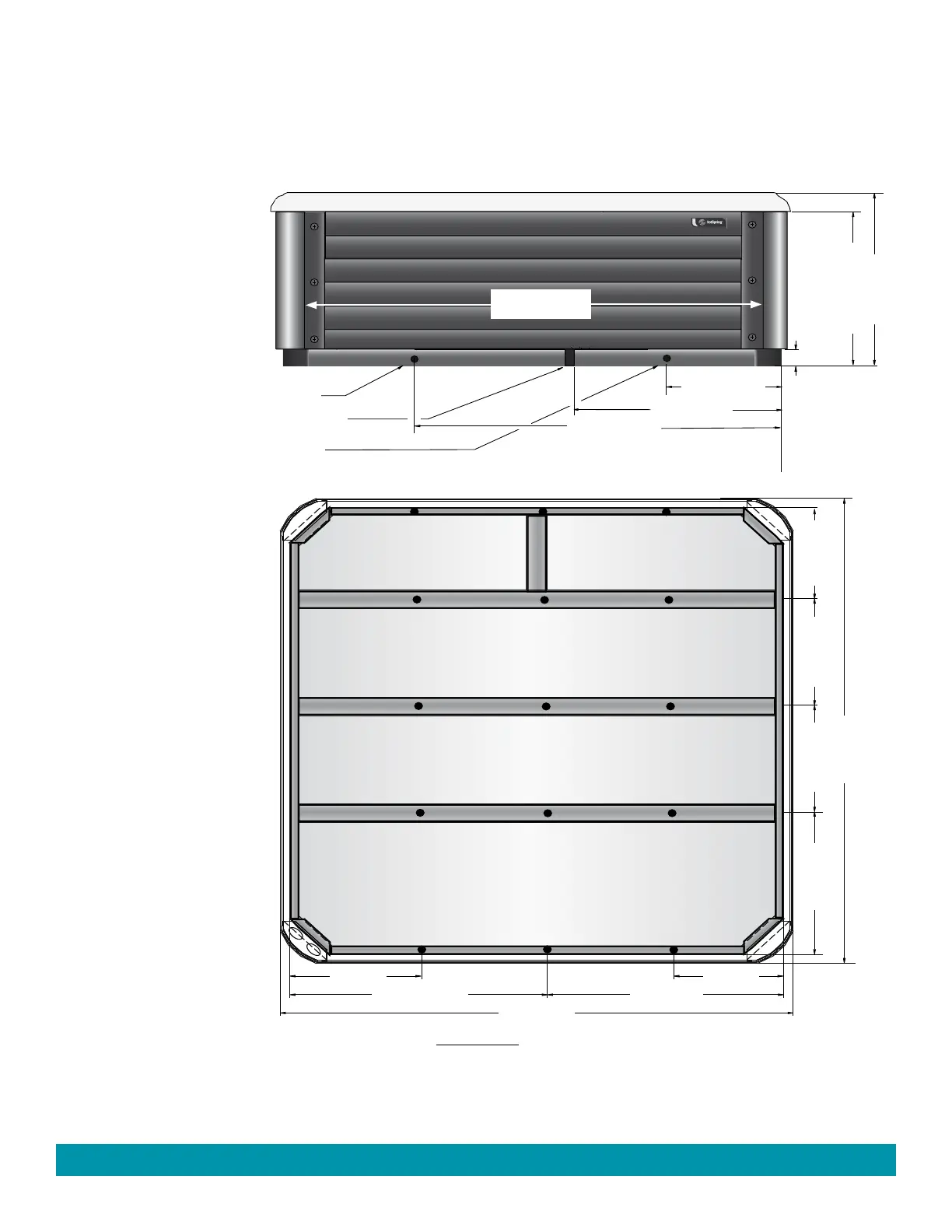

Dimensions
NOTE: All dimensions are approximate; measure your spa before making critical design or
pathway decisions.
62 " (157.5 cm)
33" (84 cm)
21.5" (54.5 cm)
3.5 " (9 cm)
32 " (81 cm)
36" (91 cm)
41.5" (105 cm) 41.5" (105 cm)
18" (46 cm)18" (46 cm)
87" (221 cm)
20" (51 cm)
26.5" (67.5 cm)
20 " (51 cm)
17.25 " (44 cm)
87" (221 cm)
MAIN DRAIN
SECONDARY DRAIN
1.5” (4 cm) ELECTRICAL CUTOUT
(Front view)
(Bottom view)
DOOR SIDE
● IMPORTANT: The VANGUARD & ARIA have 15 leveling points (place shims at illustrated locations)
UPSIDE DOWN VIEW OF SPA
(Location may vary 1/2” (1.5 cm) )
DOOR
71.75" (182 cm)
Page 35 Installation Instructions

HotSpring HIGHLIFE Series Specifications

General

Water Care System	FreshWater Salt System
Lighting	LED lighting
Pump	Varies by model
Filtration System	Tri-X filter
Warranty	Varies by model (5-7 years)
Jet Count	Varies by model (approx. 35-50 jets)
