HotSpring HIGHLIFE Series User Manual

Page 36
Installation Instructions
Page 36
SOVEREIGN (Model II)
38" (96.5 cm)
18" (45.5 cm)
38" (96.5 cm)
18" (45.5 cm)
80" (203 cm)
93" (236 cm)
23.75" (60.3 cm) 20" (50.8 cm
)
20" (50.8 cm
)
26" (66 cm)
34.5" (87.5 cm)
3.5" (9 cm)
29 " (73.5 cm)
33" (84 cm)
14.5" (37 cm )
60" (152.5 cm)
SOVEREIGN (MODEL IIE)

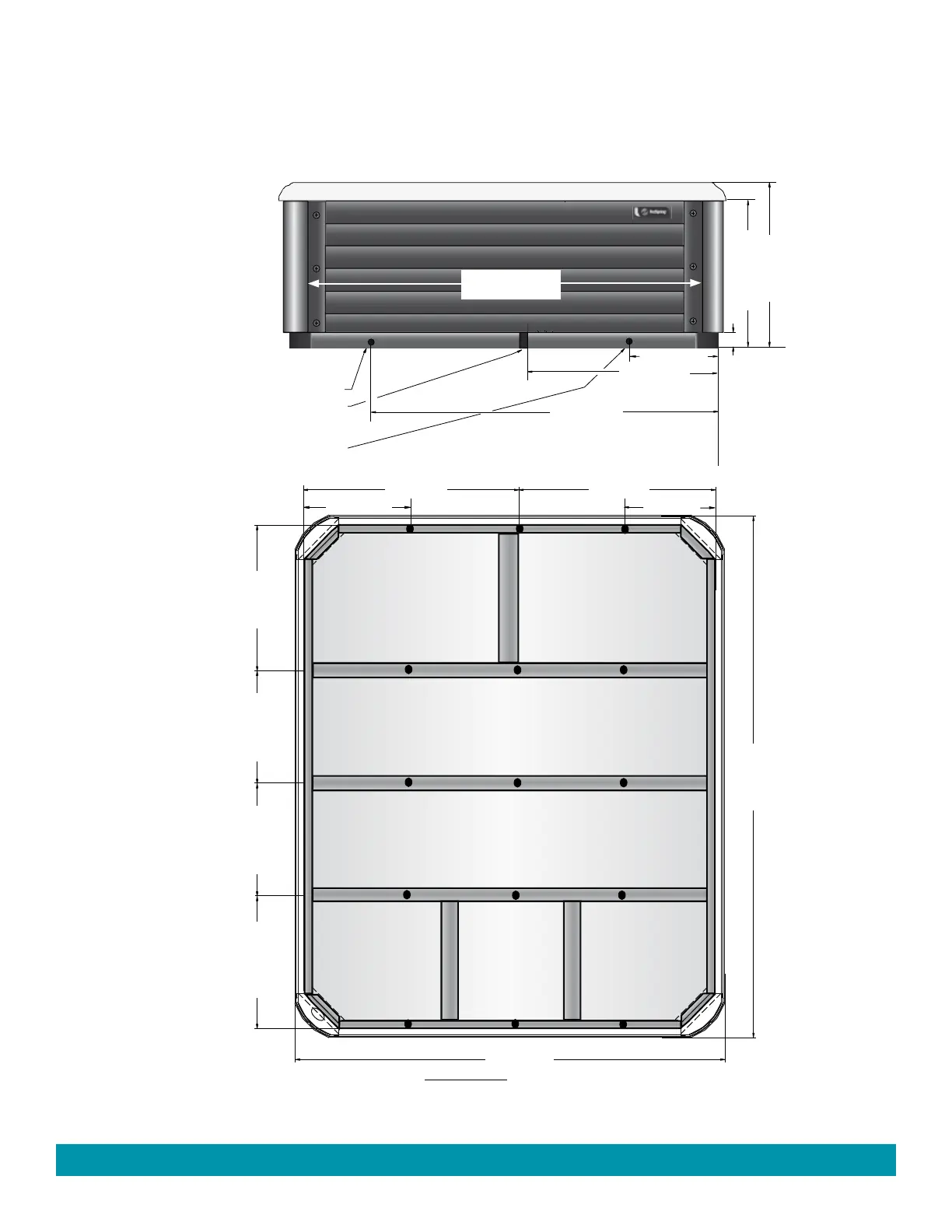

Dimensions
NOTE: All dimensions are approximate; measure your spa before making critical design or
pathway decisions.
DOOR SIDE
● IMPORTANT: The SOVEREIGN has 15 leveling points (place shims at illustrated locations)
(Front view)
(Bottom view)
MAIN DRAIN
SECONDARY DRAIN
1.5” (4 cm) ELECTRICAL CUTOUT
(Location may vary 1/2” (1.5 cm) )
UPSIDE DOWN VIEW OF SPA
DOOR
65.25" (165.5 cm)

HotSpring HIGHLIFE Series Specifications

General

Water Care System	FreshWater Salt System
Lighting	LED lighting
Pump	Varies by model
Filtration System	Tri-X filter
Warranty	Varies by model (5-7 years)
Jet Count	Varies by model (approx. 35-50 jets)
