Installation Instructions
Page 37
DOOR SIDE
● IMPORTANT: The TRIUMPH has 15 leveling points (place shims at illustrated locations)

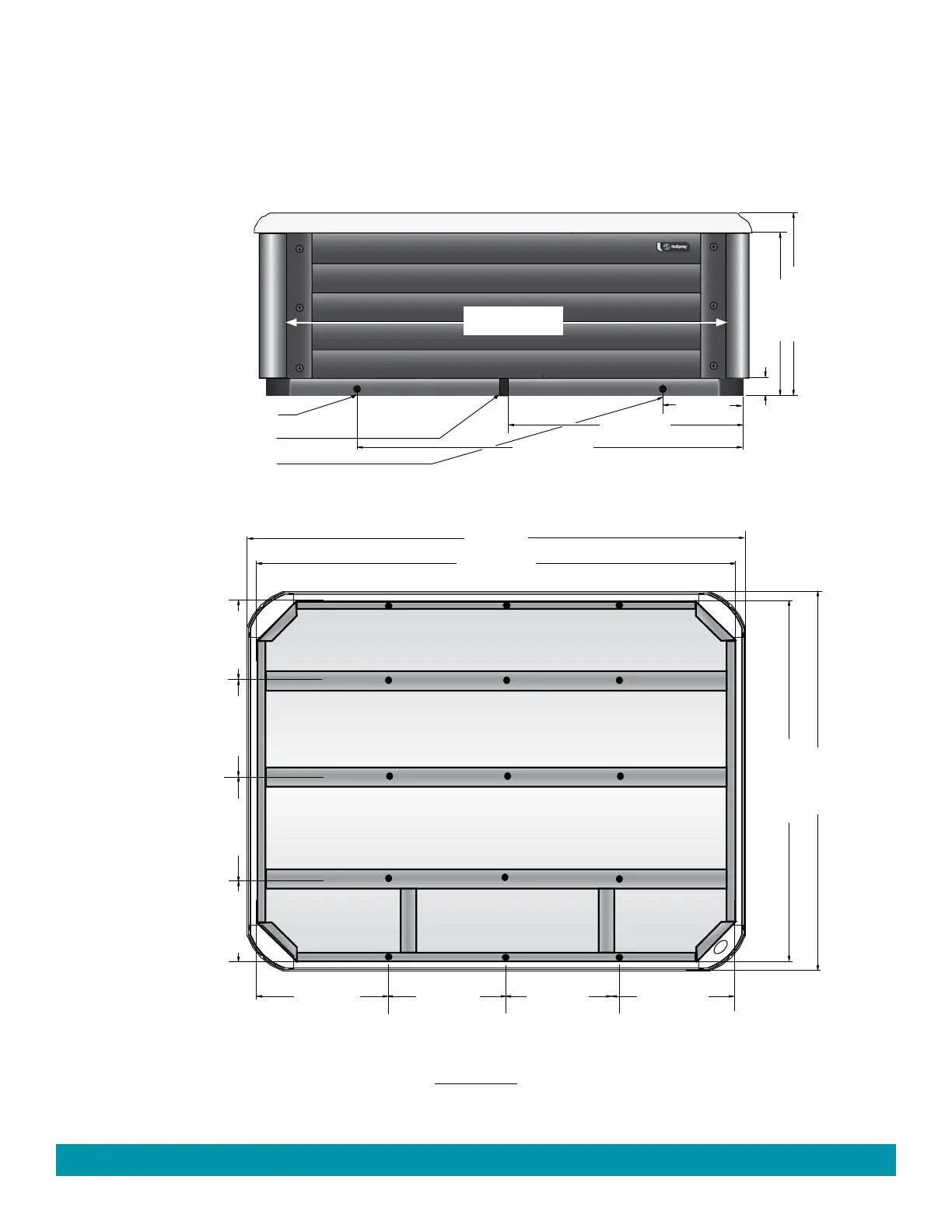

TRIUMPH (MODEL TRHE)
Dimensions
NOTE: All dimensions are approximate; measure your spa before making critical design or
pathway decisions.
93" (236 cm)
89" (226 cm)
15" (38 cm)
3.5" (9 cm)
33" (84 cm)
22.25" (56.5 cm)22.25" (56.5 cm) 22.25" (56.5 cm)22.25" (56.5 cm)
70" (178 cm)
17" (43 cm)
74" (188 cm)
29 " (73.5 cm)
43.5" (110.5 cm)
14.5" (37 cm)
TRIUMPH
73" (185.5 cm)
21" (53.5 cm) 19" (48.5 cm)
(Front view)
(Bottom view)
MAIN DRAIN
SECONDARY DRAIN
(Location may vary 1/2” (1.5 cm) )
1.5” (4 cm) ELECTRICAL CUTOUT
UPSIDE DOWN VIEW OF SPA
DOOR
78" (198 cm)

HotSpring HIGHLIFE Series Specifications

General

Water Care System	FreshWater Salt System
Lighting	LED lighting
Pump	Varies by model
Filtration System	Tri-X filter
Warranty	Varies by model (5-7 years)
Jet Count	Varies by model (approx. 35-50 jets)
