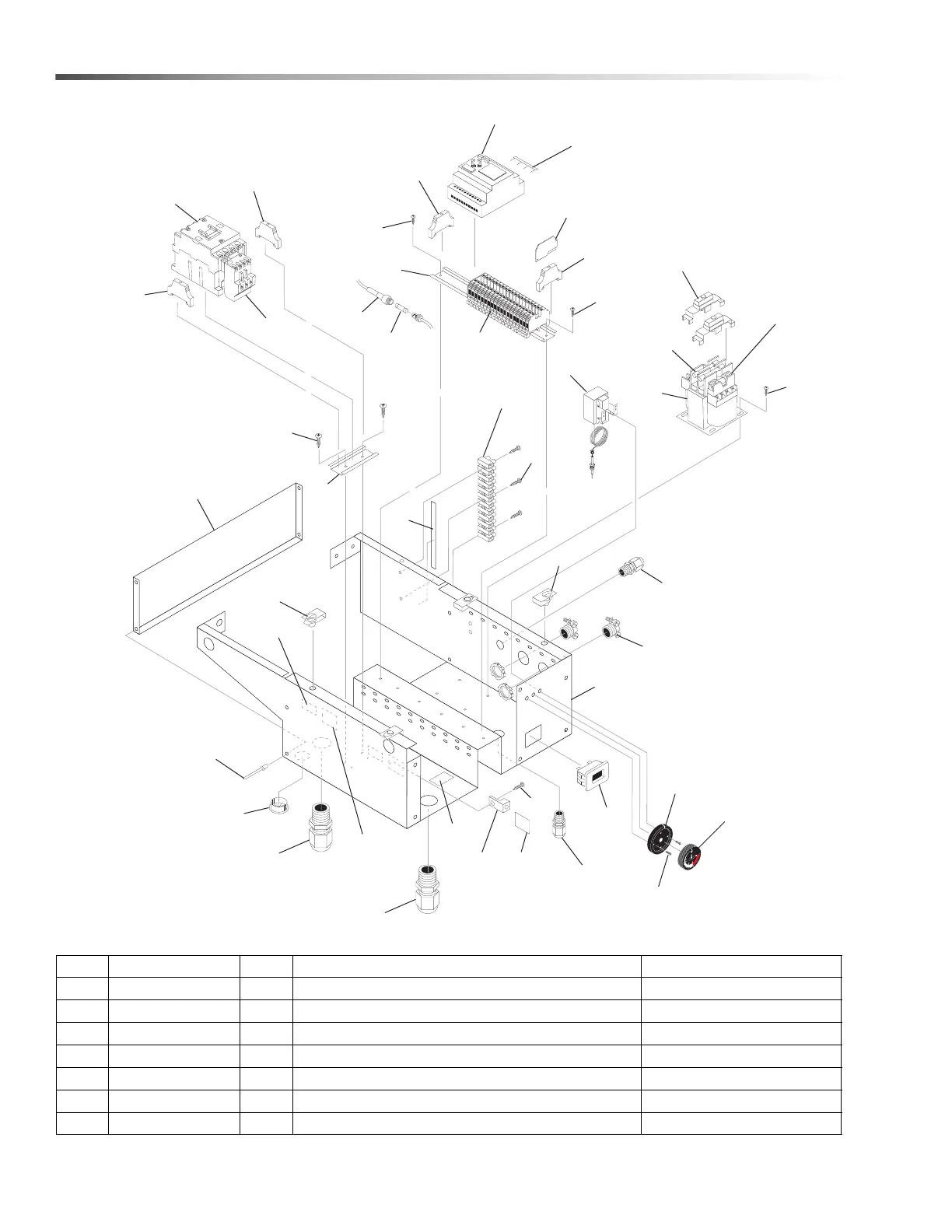

Hotsy 1473P - Electrical Box

44
Electrical Box
REF PART NO. QTY DESCRIPTION NOTES
1 8.922-757.0 1 BOX, ELECTRICAL
- 8.925-392.0 1 BOX, ELECTRICAL, 1400/WEG
1452N, P ONLY
2 9.802-283.0 1 HOUR METER, 24-240VAC 50/60
3--CONTACTOR
SEE SPECIFICATION PAGES
4 - - OVERLOAD
SEE SPECIFICATION PAGES
5 - - TRANSFORMER
SEE SPECIFICATION PAGES
6 --FUSE
SEE SPECIFICATION PAGES
