Hotsy 1473P Dealer's Manual

56

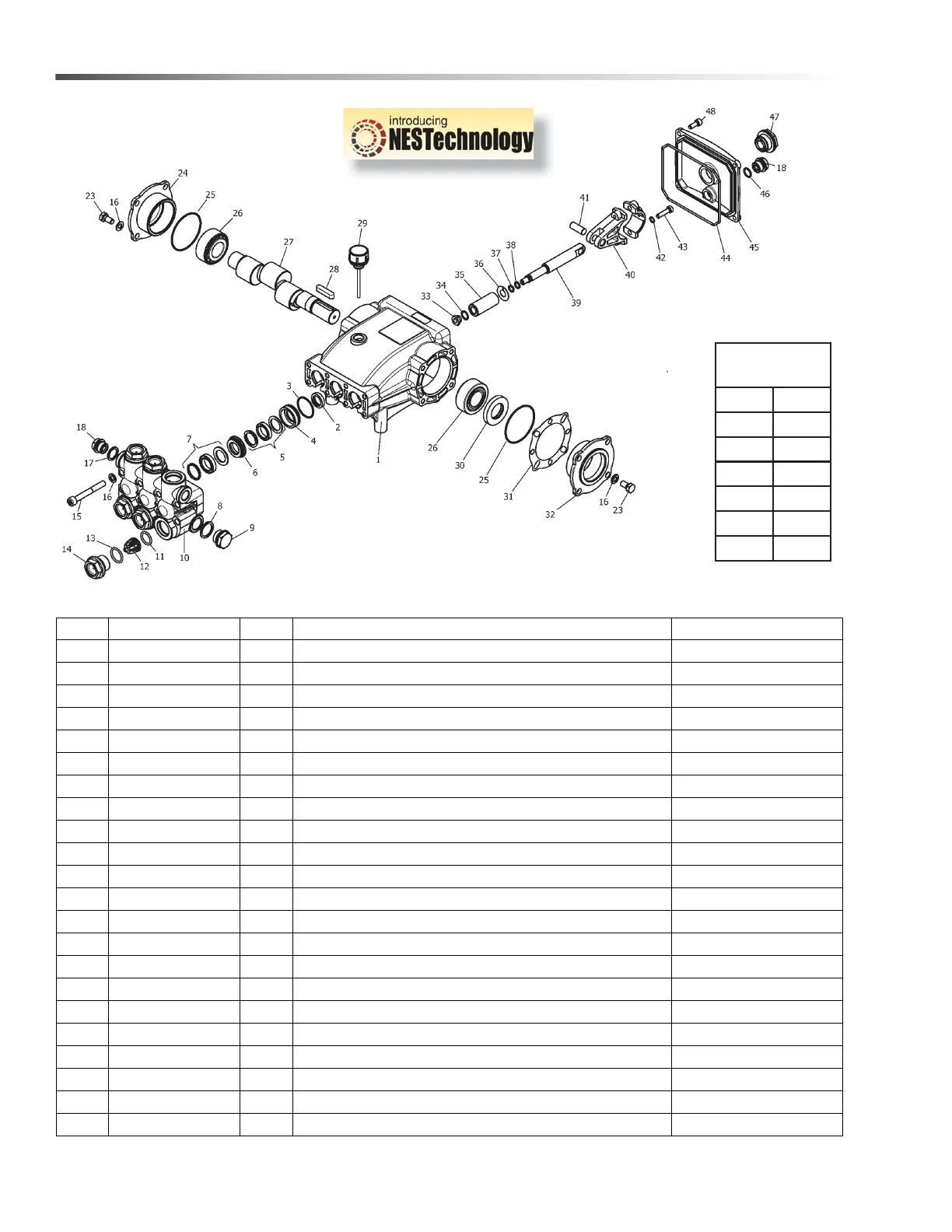

HM.3 Series Pump
REF PART NO. QTY DESCRIPTION NOTES
1 8.751-216.0 1 CRANKCASE
2 - 3 PLUNGER OIL SEAL SEE KITS TABLE
3 - 3 O-RING Ø1.78 X 31.47 SEE KITS TABLE
4 - 3 PRESSURE RING SEE KITS TABLE
5 - 3 U-SEAL SEE KITS TABLE
6 - 3 INTERMEDIATE RING SEE KITS TABLE
7 - 3 U-SEAL SEE KITS TABLE
8 9.803-199.0 1 WASHER, COPPER
9 9.802-926.0 1 PLUG, BRASS 1/2
10 8.751-218.0 1 MANIFOLD HEAD
11 - 6 O-RING Ø2.62 X 17.13 SEE KITS TABLE
12 - 6 VALVE ASSEMBLY SEE KITS TABLE
13 - 6 O-RING Ø2.62 X 20.29 SEE KITS TABLE
14 9.802-928.0 6 VALVE PLUG
15 9.802-938.0 8 MANIFOLD STUD BOLT
16 9.802-884.0 16 WASHER
17 9.803-198.0 1 COPPER WASHER 3/8
18 9.802-925.0 2 BRASS PLUG 3/8
23 9.802-944.0 8 HEXAGONAL SCREW
24 8.717-210.0 1 CLOSED BEARING HOUSING
25 9.803-192.0 2 O-RING Ø1.78 X 60.05
26 8.933-011.0 2 TAPERED ROLLER BEARING
Hotsy 900/1400 Series Dealer Manual 9.803-324.0 - AW
TORQUE
SPECS
Item # Ft.-lbs
14 75
15 30
23 8
33 9
43 13
48 7.6
