Hotsy 1710 - Hose & Spray Gun Assembly

25Hotsy 1700 Operator’s Manual 8.914-380.0 - W

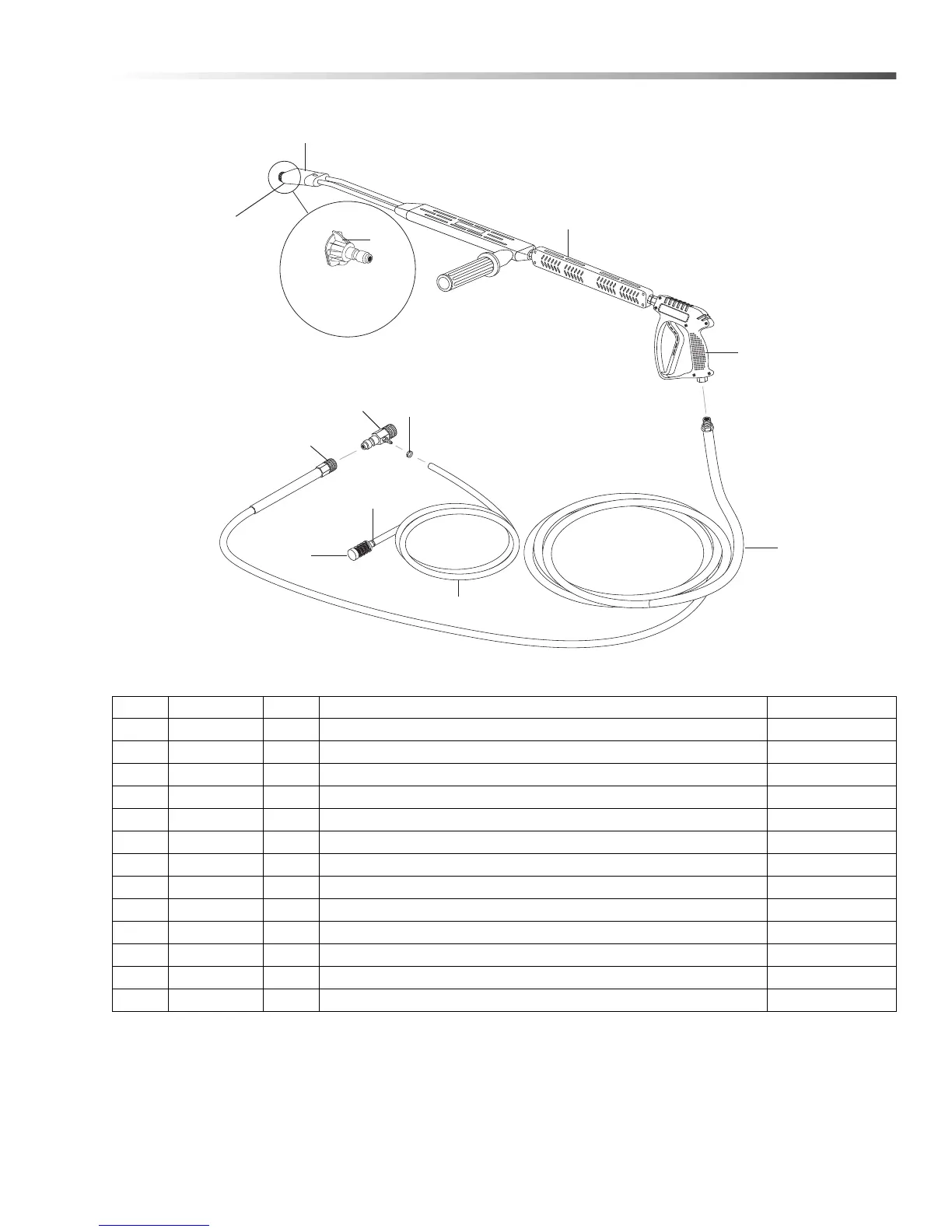

Hose & Spray Gun Assembly
REF PART NO. QTY DESCRIPTION NOTES
1 9.802-165.0 1 COUPLER, 1/4” MALE
- 9.802-096.0 1 QUICK COUPLER O-RING, SMALL
2 9.802-286.0 1 NOZZLE ONLY, 1/8”, SOAP
3 8.711-293.0 1 WAND, SS, VP, AL344 W/COUPLER & SOAP NOZZLE
4 - - FOR NOZZLE DETAILS SEE EXPLODED VIEW PARTS LIST
5 8.917-057.0 1 HOSE, 3/8” X 50', 1 WIRE
6 8.751-235.0 1 GUN, HOTSY, H1050, 5000 PSI, 10.4 GPM
7 9.802-216.0 1 DETERGENT INJECTOR, NON-ADJUST 3-5 GPM
8 9.802-160.0 1 STRAINER, 1/4” HOSE BARB
9 9.802-166.0 1 COUPLER, 3/8” FEMALE
- 9.802-100.0 1 QUICK COUPLER O-RING, LARGE NOT SHOWN
10 6.390-126.0 1 CLAMP, HOSE, .46 -, .54 ST
11 9.802-251.0 6 FT. TUBE, 1/4” X 1/2” CLEAR VINYL
6
5
3
2
1
4
8
High Pressure
Nozzle
7
10
11
9
10
