6
7
1
2
3
4
5
■
1
Power supply for TopVent
®
■
2
Zone bus
■
3
Mixing valve
■
4
Pump (option)
■
5
Door contact (option TH, TC)
■
6
Condensate pump (option TC, THC)
■
7
Return temperature sensor (option)

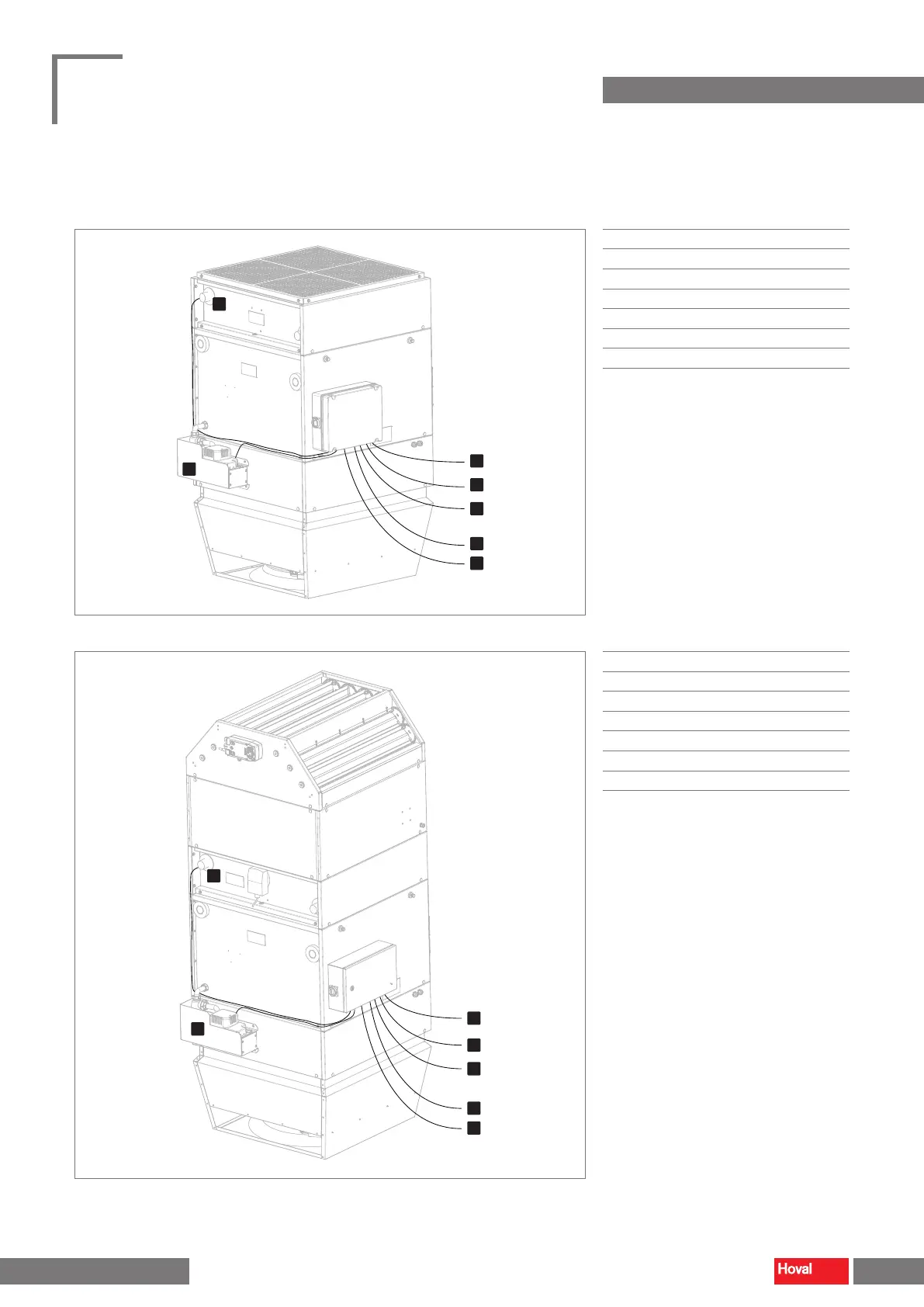

Fig. 26: TopVent
®
recirculation units on-site electrical
connection
6
7
1
2
3
4
5
■
1
Power supply for TopVent
®
■
2
Zone bus
■
3
Mixing valve
■
4
Pump (option)
■
5
Forced off (option)
■
6
Condensate pump (option MC, MHC)
■
7
Return temperature sensor (option)
Fig. 27: TopVent
®
supply air units on-site electrical
connection
32
TopVent
®
TH
|
TC
|
THC
|
MH
|
MC
|
MHC
Operating instructions
Transport and installation
