Chapter 4
Seating
A good driving posture is necessary for both comfort and safety. You must have a
clear line of sight ahead of the vehicle, a good view of the joystick/controller and
comfortable hand access to the joystick and speed/response control.
A. Arm Angle Adjustment
The seat arms have angle adjustments to suit your driving and comfort requirements.
To adjust the arm angle on the seat arms, lift the arm and locate the adjustment
bolt near the pivot point. (see Figure 4A, below)
Use the supplied 1/4” hex wrench to make the adjustment. Turn the screw clock-
wise to lower the arm and counter clockwise to raise the arm.

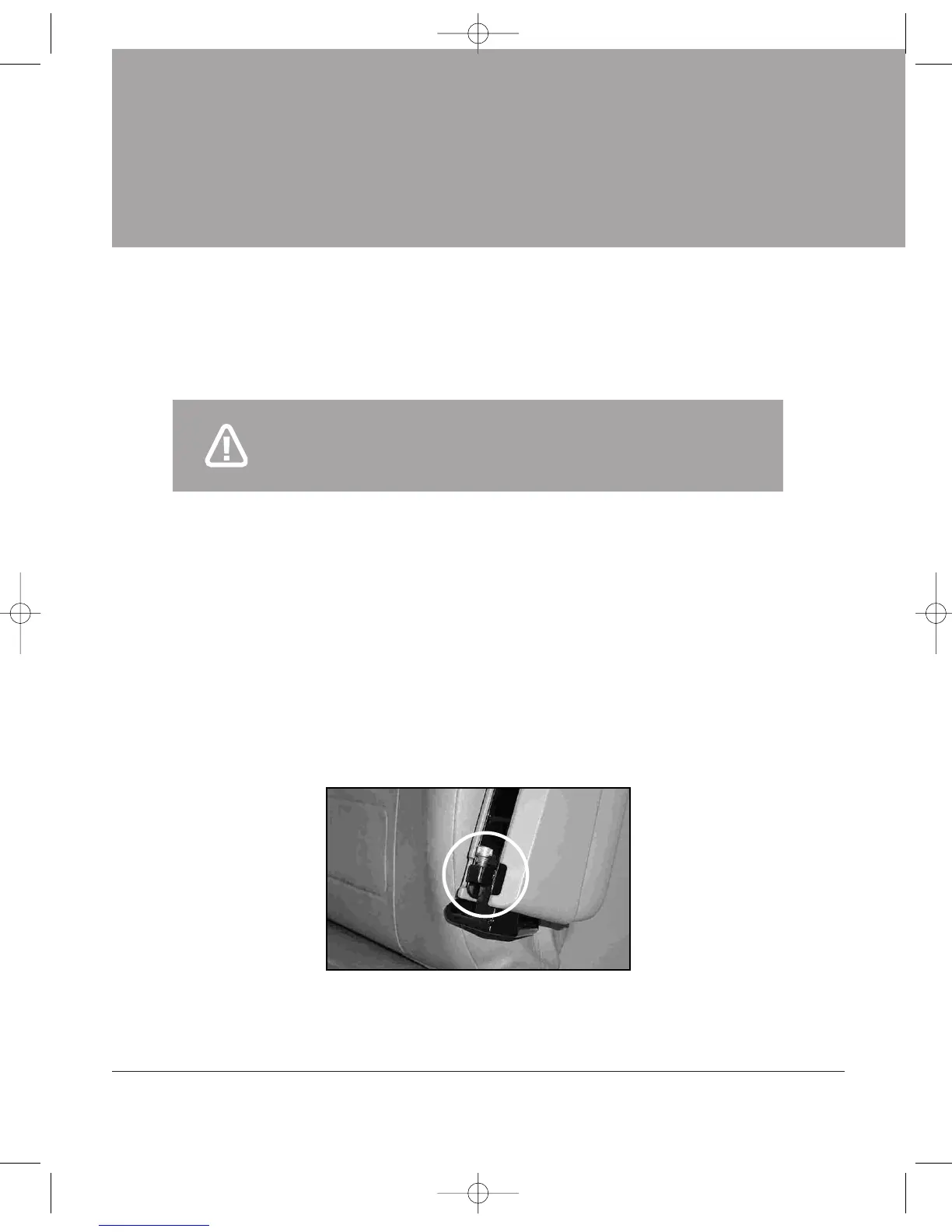

Figur
e 4A
Warning! Make sure the joystick controller is off before
making any adjustments.
