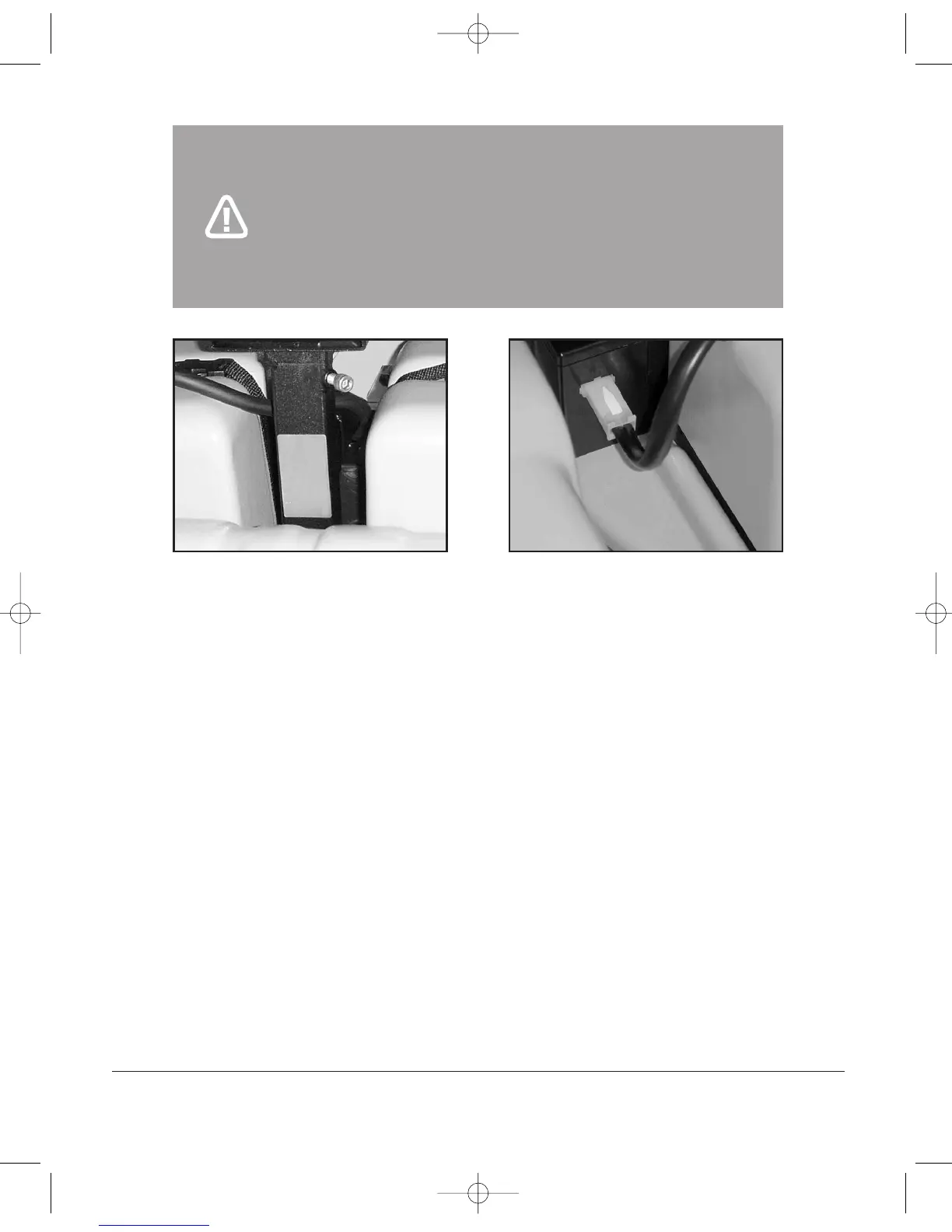

Figure 7F Figure 7G
C. Battery Removal/Replacement
Removal
1. Remove each of the battery connectors by pinching the white tab on the
connector at the junction box and gently pulling free (See Fig. 7G, Above).
2. Carefully lift the battery and case clear of the vehicle.
Replacement
1. Either battery can fit onto either side of the vehicle.
2. Place one of the batteries onto the vehicle deck, under the seat, into the
recess of the deck that is provided.
3. Hold the connector of that battery such that the clip is upward.
4.
Locate that connector into the appr
opriate receptacle of the vehicle junction-
box, (left batter
y connects to the r
eceptacle on the left side).
5. Lock the battery connector plug to the receptacle by pushing until a click is
hear
d. Gently pull on the connector to ensur
e it is fully locked in place.
D82008204 REV B 1/14/04
Chapter 7
33
Warning! The cable that joins the joystick to the junction
box is a critical part of the vehicle. Ample cable is provided
to allow for adjustments. There is a danger if this cable is
not correctly routed. Do not allow the excess cable to
extend beyond the width of the chair where it may become
damaged.
