32
Chapter 7
D82008204 REV B 1/14/04
B. Seat Removal/Replacement
Removal
1. Remove controller.
2. Remove the controller cable from the seat clip by pinching the small tabs on
the clip with one hand while removing the strap with your other hand.
(See Fig. 7C, 7D and 7E, Below).
3. Using the 1/4 inch hex wrench supplied with the vehicle, loosen the cap screw
located at the top-front corner of the seat post. (See Fig. 7F, Pg. 33).
4. Grasp the seat at the front and back and lift seat directly upward until it is free
of the seat post.

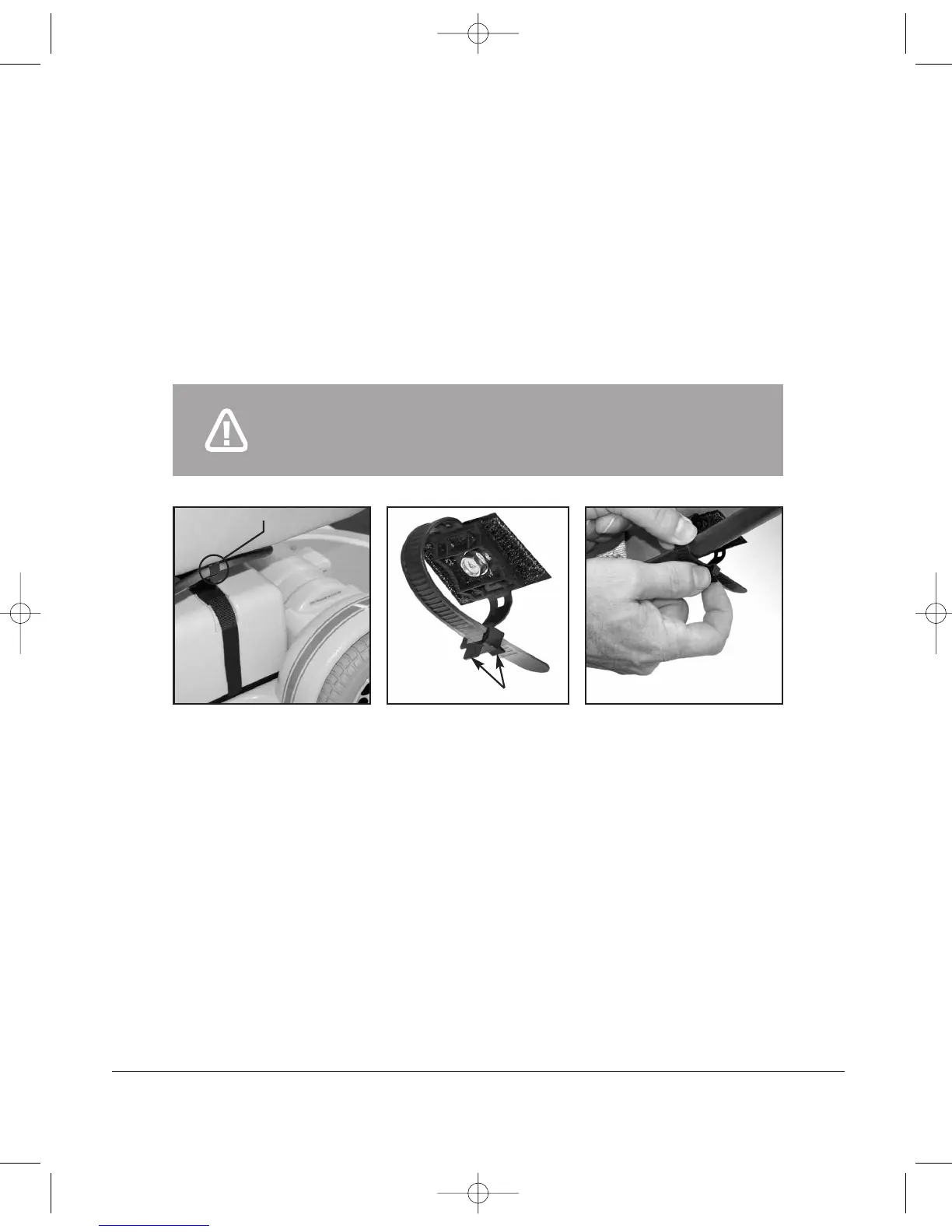

Figure 7C Figure 7D Figure 7E
Replacement
1. Grasp the seat at the front and back.
2. Align the male post of the seat bracket with the seat post and allow seat
bracket to descend into the seat post.
3.
T
ighten the socket head cap scr
ew at the top-fr
ont corner of the seat post
with the 1/4” hex wrench that is supplied with the vehicle.
4.
Reattach the contr
oller cable to the seat by placing the strap ar
ound the cable
and inser
ting the strap into the slot on the clip. Position the cable to the
minimum length to allow the arm to lift. Tighten the strap to keep the cable in
position. T
o prevent cable damage, do not let the cable hang free or extend
beyond the chair
. Use car
e when driving to keep the cable fr
om catching on
objects.
Warning! Seat is heavy. Do not attempt to lift beyond your
capability.
Pinch Clip Tabs In As Shown
Clip Location
Clip Tabs
To Next Page
