HP 10400A OPERATING NOTE
Probe Tip with General Purpose
Grabber
The genera! purpose grabber (MP1) is used for
most typical in-circult probing and ICs. Attach
the ground lead (MP3) to the probe and then
the insulating barrel and the general purpose
grabber, as in figure 4. Attach the grabber to a
probing point by pressing the grabber body
towards the probe body, placing hook tip of
grabber around probing point, and releasing
the grabber body.

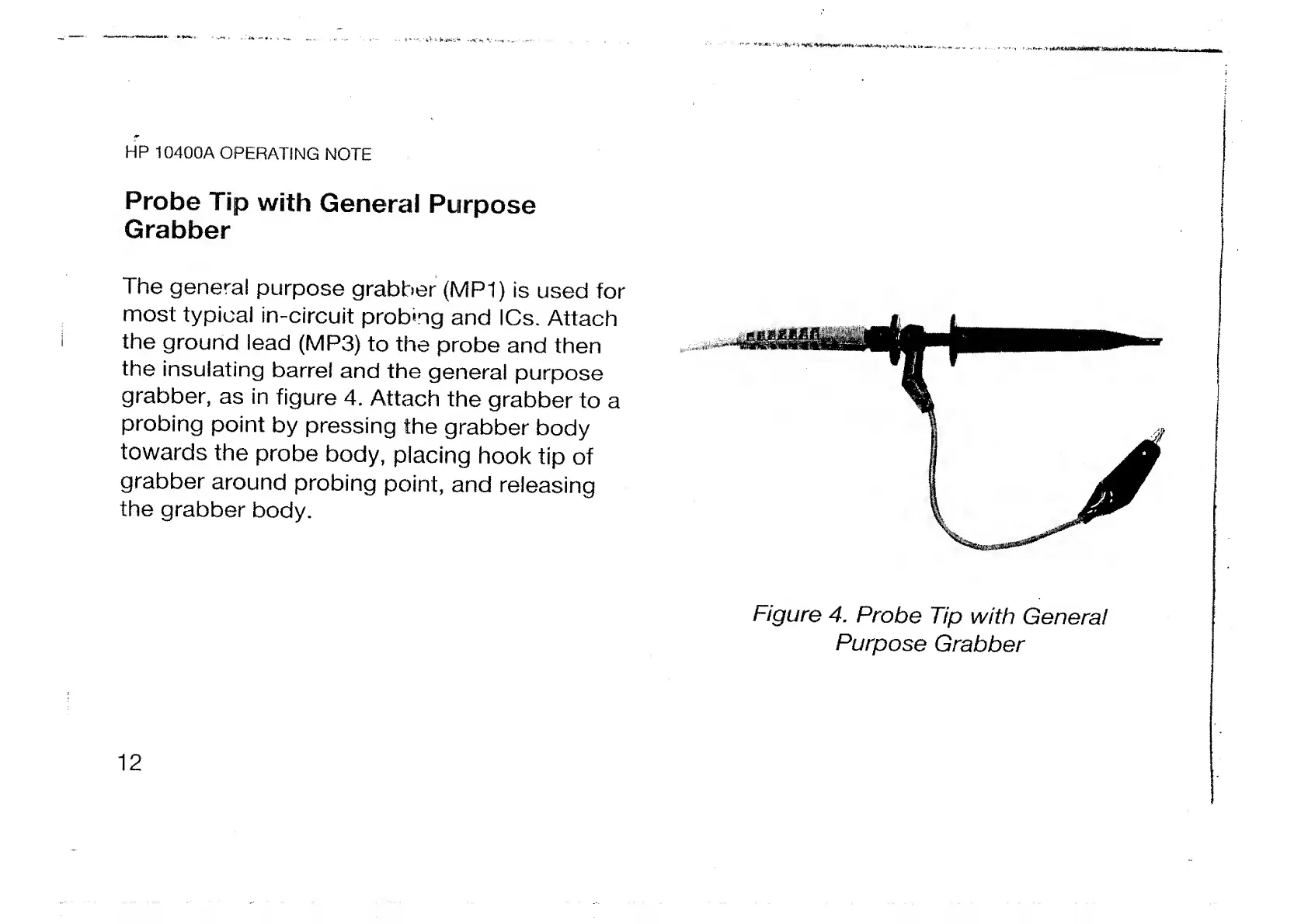

Figure 4. Probe Tip with Genera!
Purpose Grabber
