HP 10400A OPERATING NOTE
sUaacMCt amiy ■
Probe Tip with 1C Grabber
The (C grabber (MP2) is mounted across an 1C
to probe a single pin of an 1C without hazard
of shorting adjacent pins. Install the 1C grabber
by holding the inner body of the 1C grabber
and pressing firmly onto probe tip until a
positive click is heard. The 1C grabber may
also be used with the ground lead. The 1C
grabber is shown across an 1C in figure 5.
To attach 1C grabber to 1C: place forefinger
over holder on bottom of 1C grabber, place
thumb on spring activated outer-body trigger,
and press outer body away from inner body of
the grabber.
To remove 1C grabber from probe tip: grasp
grabber on inner body (above the spring
activated outer body) and firmly pull away from
probe tip.

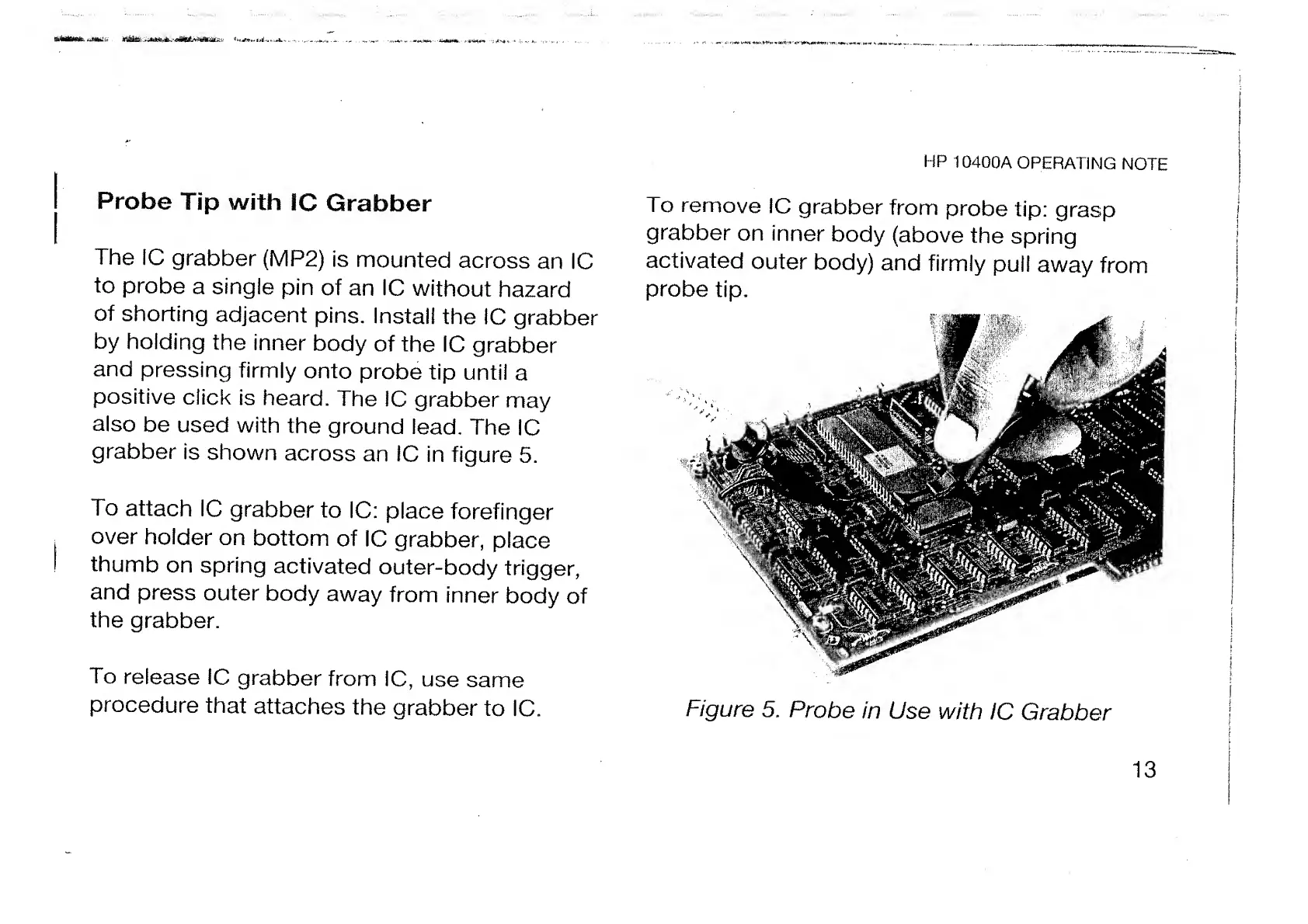

Figure 5. Probe in Use with 1C Grabber
To release 1C grabber from 1C, use same
procedure that attaches the grabber to 1C.
13
