RTC Battery
The RTC battery is located under the memory cover.
To remove the RTC battery:
1. Prepare the computer for disassembly (see
Preparing to Disassemble the Computer
on page 37).
2. Remove the rear cover (see
Rear Cover on page 38).
3. Remove the memory cover (see
Memory Cover on page 43).

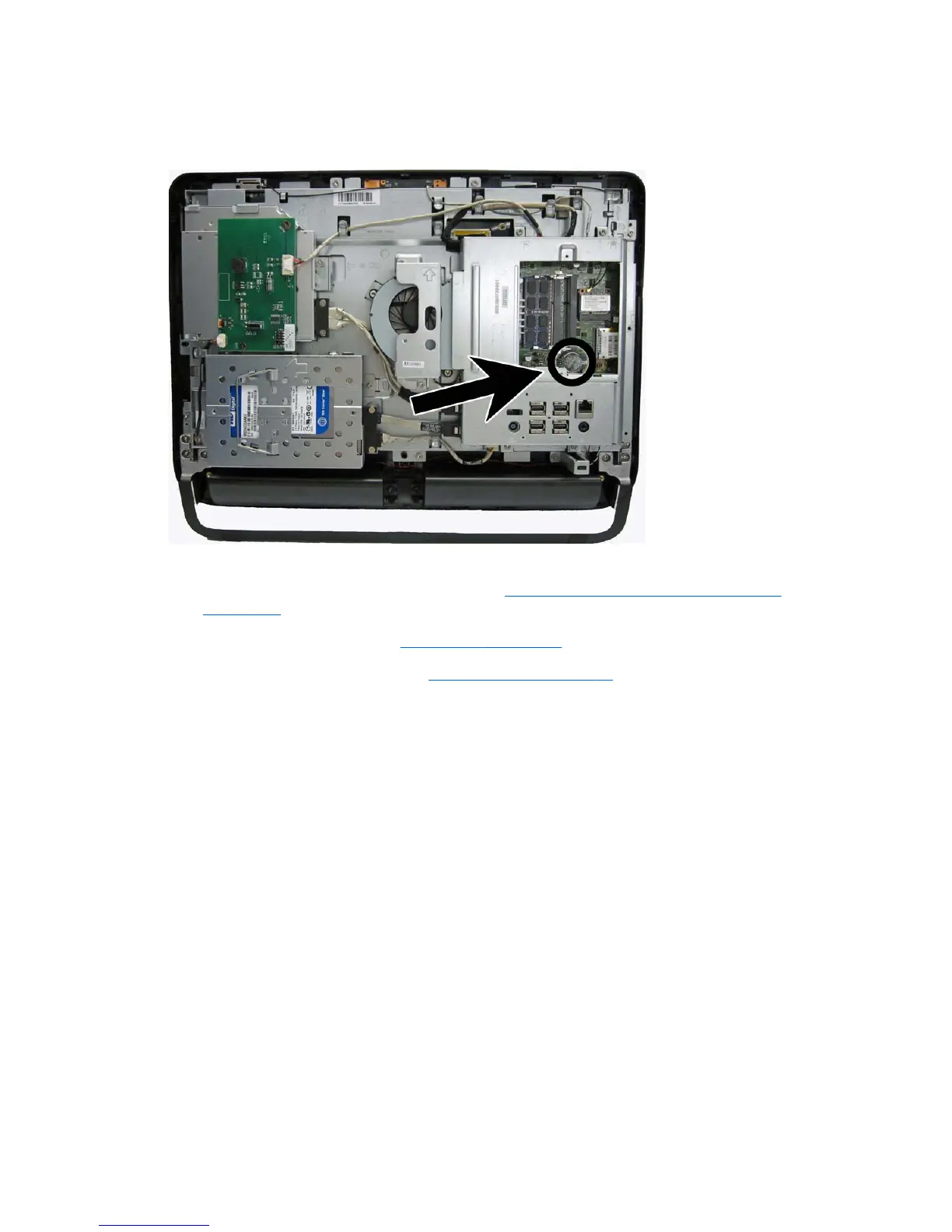

4. To release the battery from its holder, squeeze the metal clamp that extends above one edge of
the battery. When the battery pops up, lift it out (1).
RTC Battery 49
