Inverter Board
Description Spare part number
Inverter board 710541-001

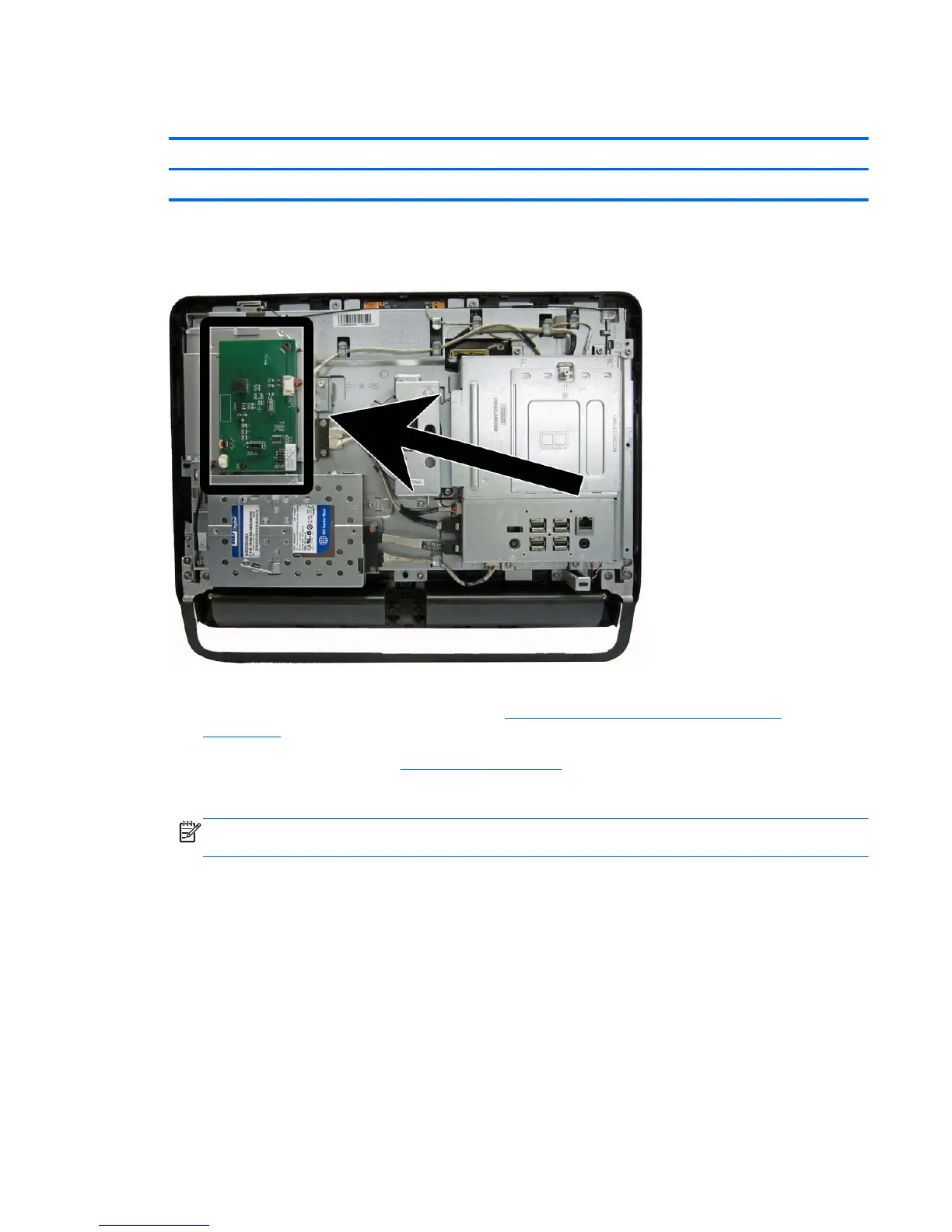

The inverter board is located on the left side of the computer. It is secured with two screws and has
three connectors.
To remove the inverter board:
1. Prepare the computer for disassembly (see
Preparing to Disassemble the Computer
on page 37).
2. Remove the rear cover (see
Rear Cover on page 38).
3. Disconnect the three cables from the board (1).
NOTE: Be careful not to damage the cables when disconnecting them from the board. Do not
pull on the wires.
4. Remove the two screws (2) that secure the board to the computer.
Inverter Board 51
