HP 1105 User Manual

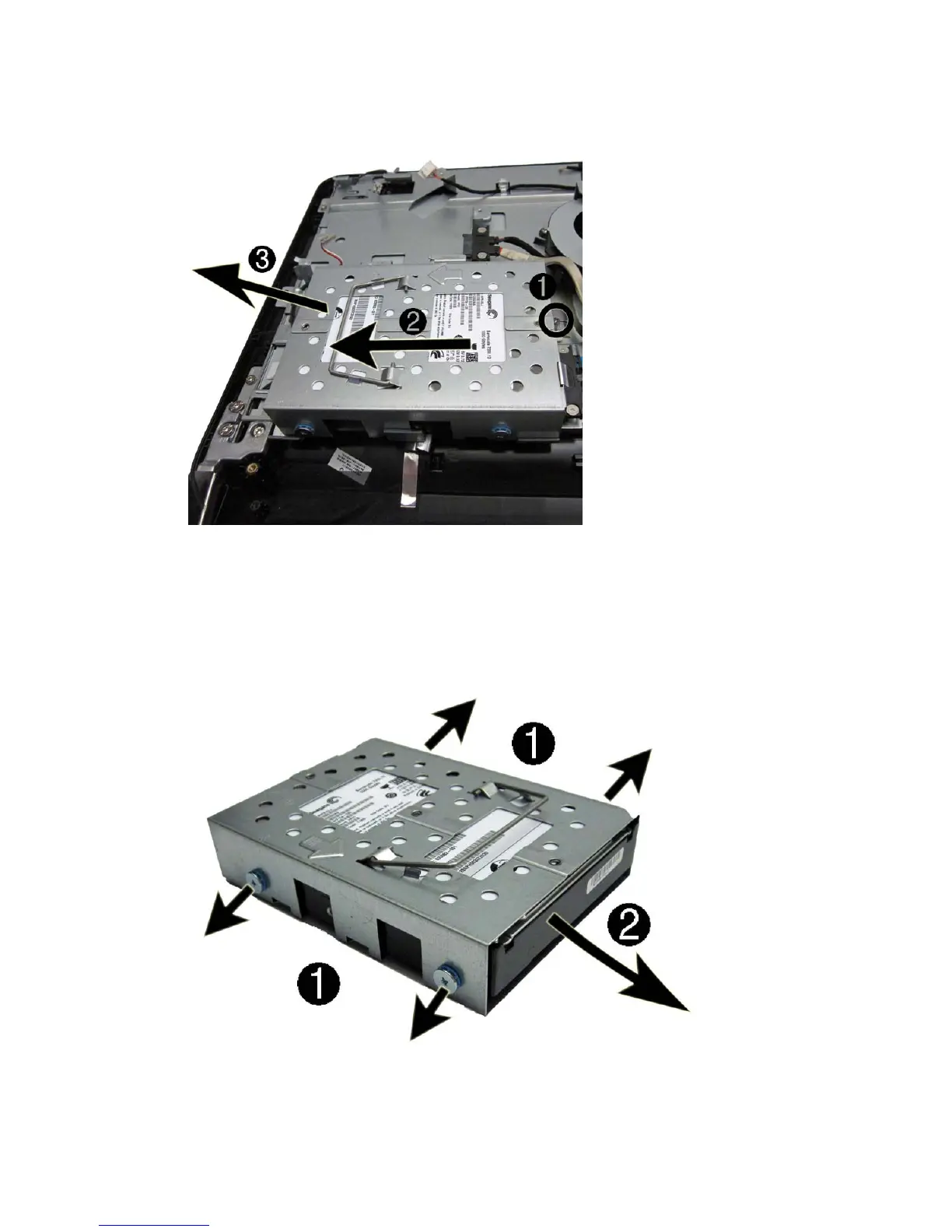

4. Grasp the handle on top of the hard drive cage and slide the cage toward the outer edge of the
computer (2), then lift the cage out of the computer (3).
5. Remove the four mounting Phillips screws (1) that secure the drive to the cage. Do not remove
the blue rubber grommets behind each screw. They must stay attached to the cage when
installing a new hard drive.
6. Slide the hard drive out of the cage (2).
To replace the hard drive, reverse the removal procedures.
60 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis
