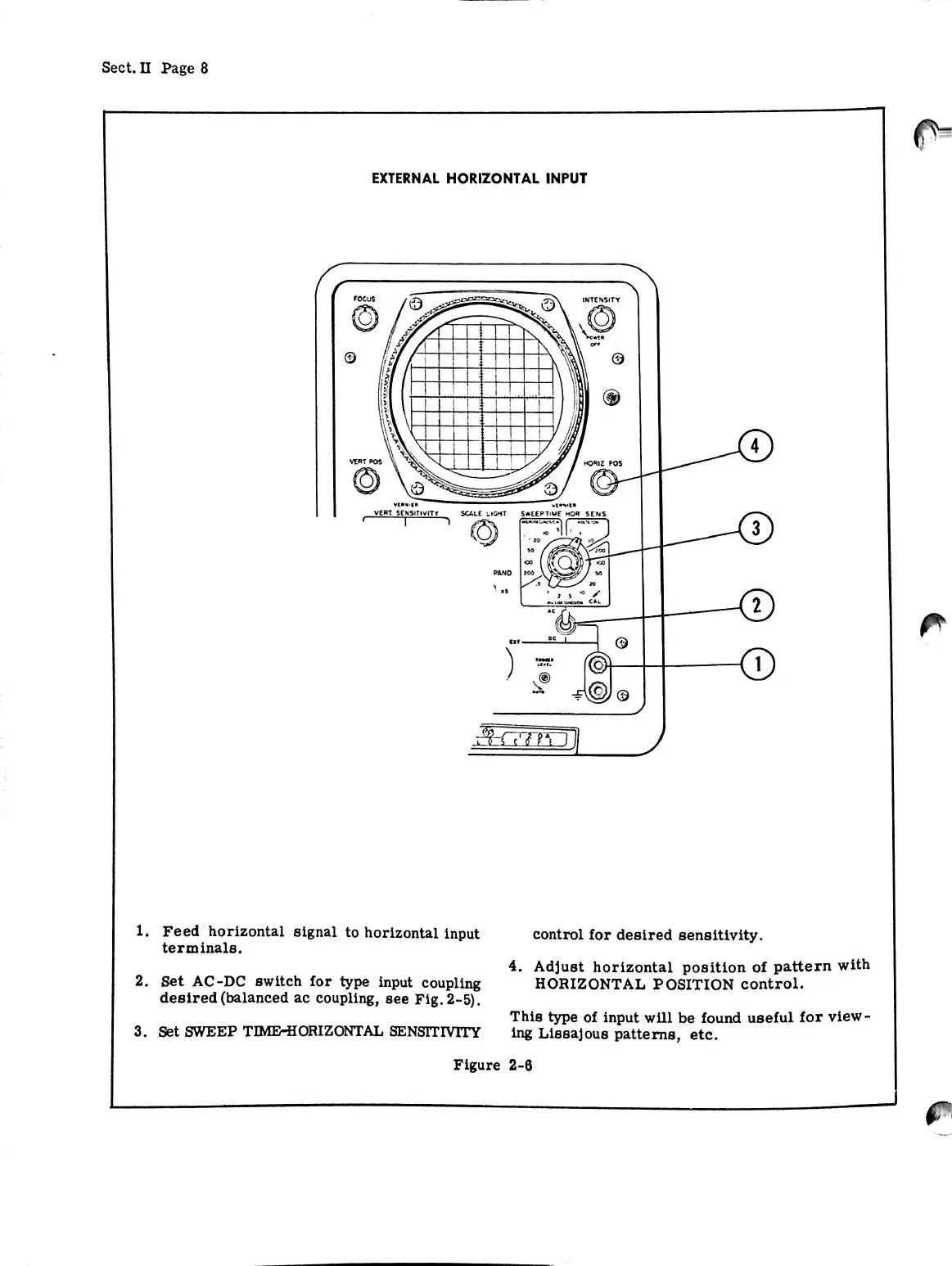

EXTERNAL HORIZONTAL INPUT
1. Feed horizontal signal to horizontal input
terminals.
2. Set AC-DC switch for type input coupling
desired (balanced ac coupling, see Fig. 2-5).
3. Set SWEEP TIME-HORIZONTAL SENSITIVITY
Figure
control for desired sensitivity.
4. Adjust horizontal position of pattern with
HORIZONTAL POSITION control.
This type of input will be found useful for view 
ing Lissajous patterns, etc.
