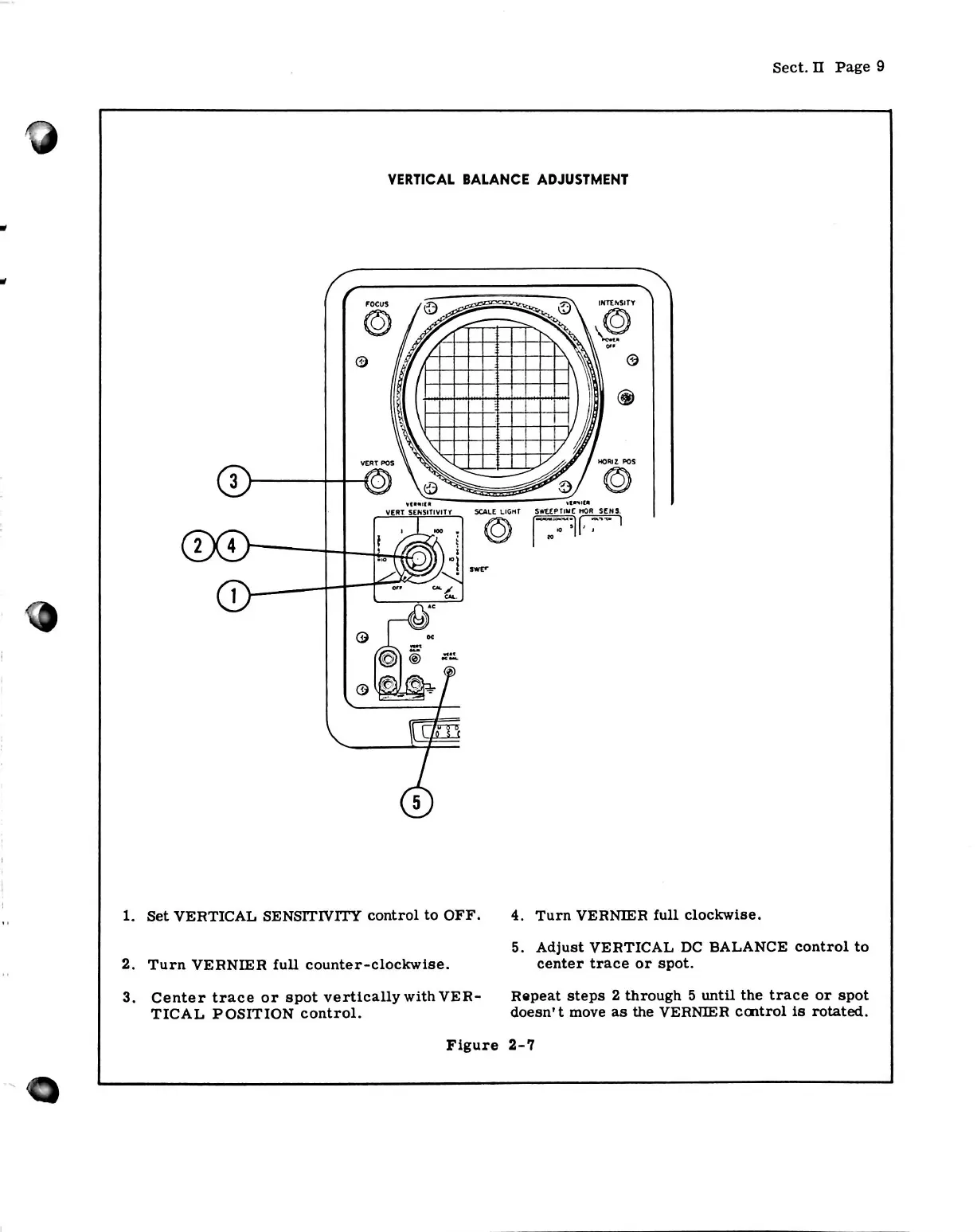

VERTICAL BALANCE ADJUSTMENT
1. Set VERTICAL SENSITIVITY control to OFF.
2. Turn VERNIER full counter-clockwise.
3. Center trace or spot vertically with VER 
TICAL POSITION control.
Figure
4. Turn VERNIER full clockwise.
5. Adjust VERTICAL DC BALANCE control to
center trace or spot.
Repeat steps 2 through 5 until the trace or spot
doesn ’ t move as the VERNIER control is rotated.
