HP 120A - Page 72

Sect. V Page 3

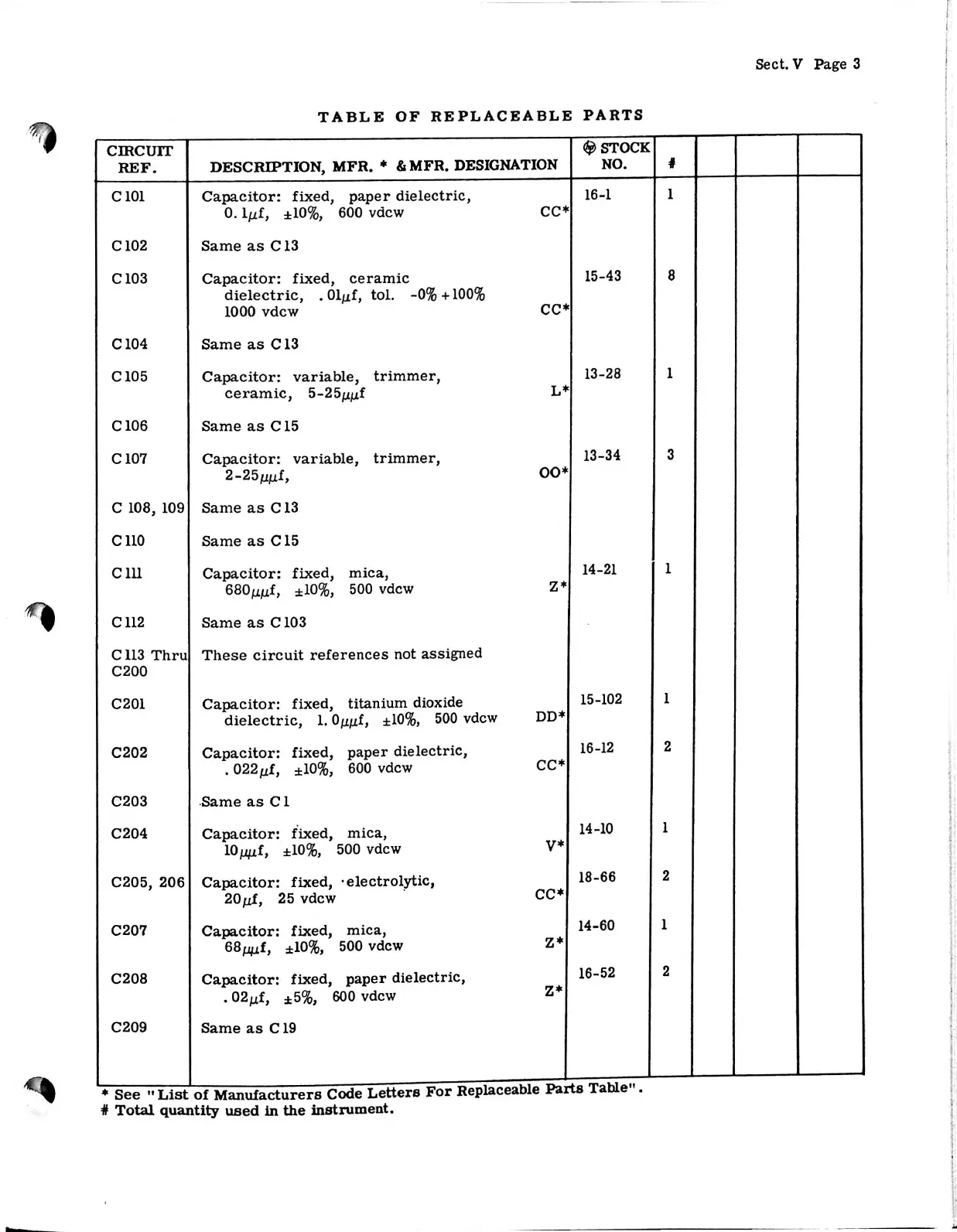

TABLE OF REPLACEABLE PARTS
♦ See ” List of Manufacturers Code Letters For Replaceable Parts Table ” .
# Total quantity used in the instrument.
CIRCUIT
REF. I
DESCRIPTION, MFR. ♦ & MFR. DESIGNATION
STOCK
NO.
#
C101 Capacitor: fixed, paper dielectric,
0. Igf, ±10%, 600 vdcw
CC *
16-1
1
C102
Same as C 13
C103
Capacitor: fixed, ceramic
dielectric, . Olgf, tol. -0%+100%
1000 vdcw
CC *
15-43
8
C104
Same as C 13
C105 Capacitor: variable, trimmer,
ceramic, 5-25g/xf
L *
13-28 1
C106 Same as C 15
C107
Capacitor: variable, trimmer,
2-25g/if,
OO *
13-34
3
C 108, 109 Same as C 13
C110 Same as C 15
cm
Capacitor: fixed, mica,
680/2/xf, ±10%, 500 vdcw
Z *
14-21
1
C112
Same as C 103
C 113 Thru
C200
These circuit references not assigned
C201
Capacitor: fixed, titanium dioxide
dielectric, 1. Oggf, ±10%, 500 vdcw
DD *
15-102
1
C202
Capacitor: fixed, paper dielectric,
. 022 gf, ±10%, 600 vdcw
CC *
16-12
2
C203
Same as C 1
C204 Capacitor: fixed, mica,
lOp/if, ±10%, 500 vdcw
V *
14-10
1
C205, 206
Capacitor: fixed, ‘ electrolytic,
20gf, 25 vdcw
CC *
18-66
2
C207
Capacitor: fixed, mica,
68 p^f , ±10%, 500 vdcw
z *
14-60
1
C208
Capacitor: fixed, paper dielectric,
. 02 M f, ±5%, 600 vdcw
z *
16-52
2
C209
Same as C 19
