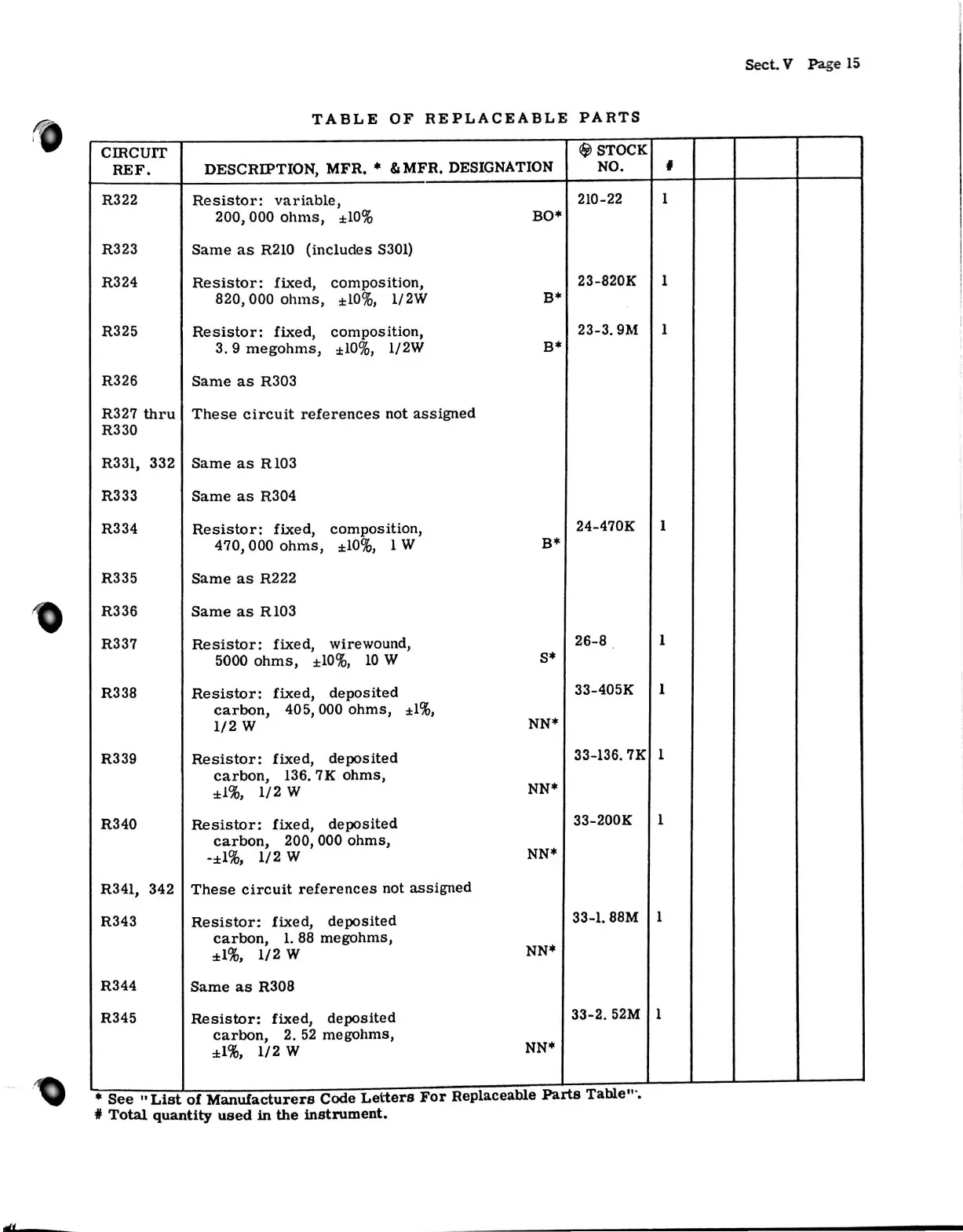

TABLE OF REPLACEABLE PARTS
* See ’ ’ List of Manufacturers Code Letters For Replaceable Parts Table ” .
CIRCUIT
$> STOCK
REF
•
DESCRIPTION, MFR. ♦ &MFR. DESIGNATION
NO.
f
R322
Resistor: variable,
210-22
1
200, 000 ohms, ±10%
BO *
R323
Same as R210 (includes S301)
R324
Resistor: fixed, composition,
23-820K 1
820,000 ohms, ±10%, 1/2W
B *
R325 Resistor: fixed, composition,
23-3. 9M 1
3. 9 megohms, ±10%, 1/2W
B *
R326
Same as R303
R327
thru These circuit references not assigned
R330
R331,
332
Same as R103
R333
Same as R304
R334 Resistor: fixed, composition,
24-470K 1
470, 000 ohms, ±10%, 1 W
B *
R335 Same as R222
R336
Same as R103
R337
Resistor: fixed, wire wound,
26-8
1
5000 ohms, ±10%, 10 W
S *
R338 Resistor: fixed, deposited
33-405K
1
carbon, 405,000 ohms, ±1%,
1/2 W
NN *
R339
Resistor: fixed, deposited
33-136. 7K 1
carbon, 136. 7K ohms,
±1%, 1/2 W
NN *
R340
Resistor: fixed, deposited
33-200K 1
carbon, 200, 000 ohms,
-±1%, 1/2 W
NN *
R341,
342
These circuit references not assigned
R343 Resistor: fixed, deposited
33-1. 88M
1
carbon, 1. 88 megohms,
±1%, 1/2 W
NN *
R344
Same as R308
R345
Resistor: fixed, deposited
33-2. 52M 1
carbon, 2. 52 megohms,
±1%, 1/2 W
NN *
# Total quantity used in the instrument.
