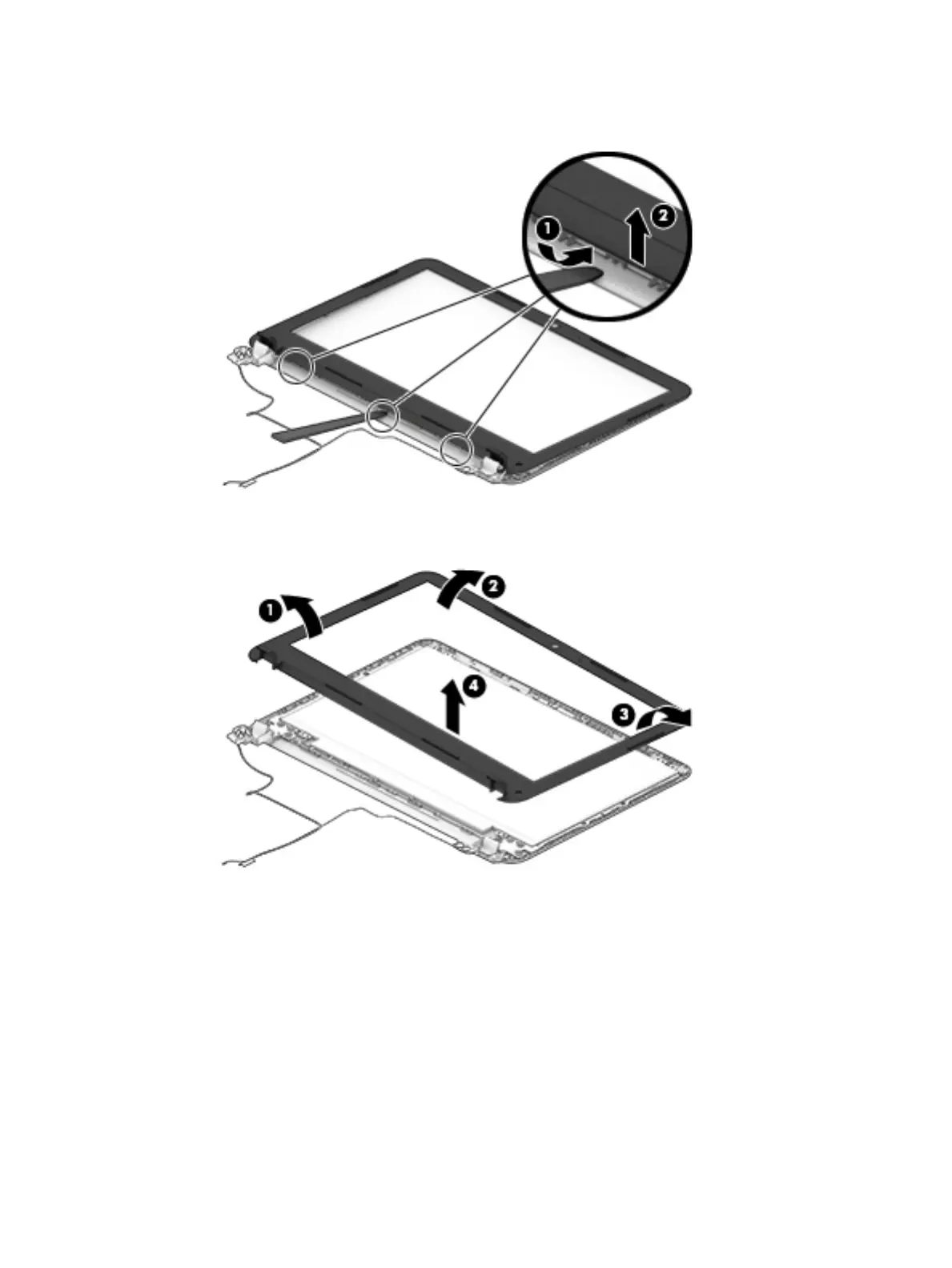

c. At the seam in the bottom of the display, use a plastic, non-marking tool (1) to separate the bezel
(2) from the display enclosure.
d. Lift the left (1), top (2), and the right sides (3) of the bezel to loosen it from the display. Lift the
bezel o the display (4).
2. To remove the webcam/microphone module:
a. Position the display assembly with the top edge toward you.
b. Disconnect the cable (1) from the module.
56 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
