c. On the back of the display panel, release the adhesive strip (2) that secures the display panel cable
to the display panel, and then disconnect the cable (3).

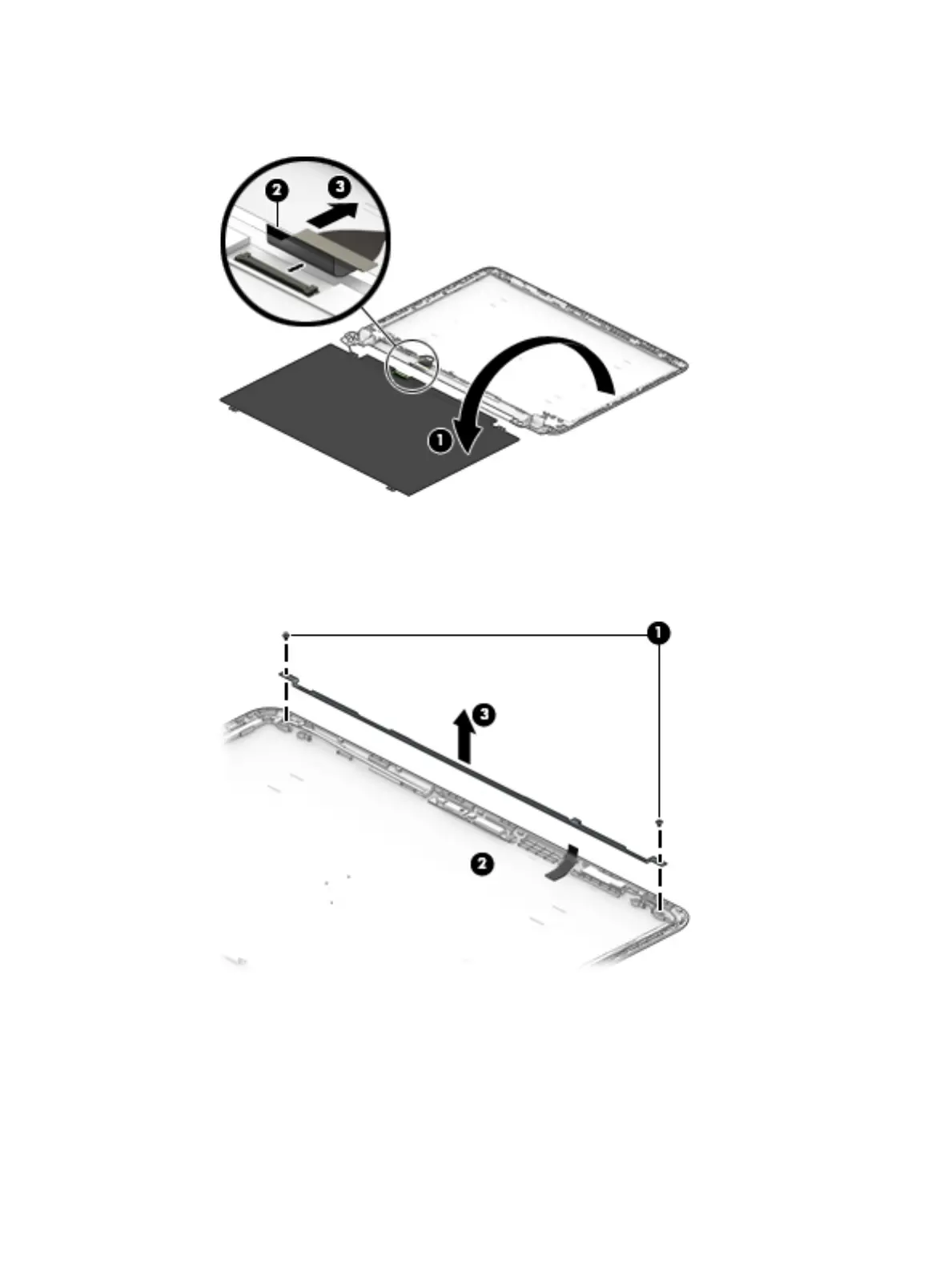

4. To remove the display hinges:
a. Remove the two Phillips PM2.0×3.0 screws (1) that secure the top hinge to the display enclosure.
b. Lift the tape (2), and then remove the top display hinge (3).
c. Remove the six broadhead Phillips PM2.5×3.0 screws (1) at the bottom of the hinges that secure
the left and right hinges to the display enclosure.
d. Remove the two Phillips PM2.0×3.0 screws (2) in the middle of the hinges that secure the left and
right hinges to the display enclosure.
e. Lift the tape that secures the left and right hinges to the enclosure (3).
58 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
