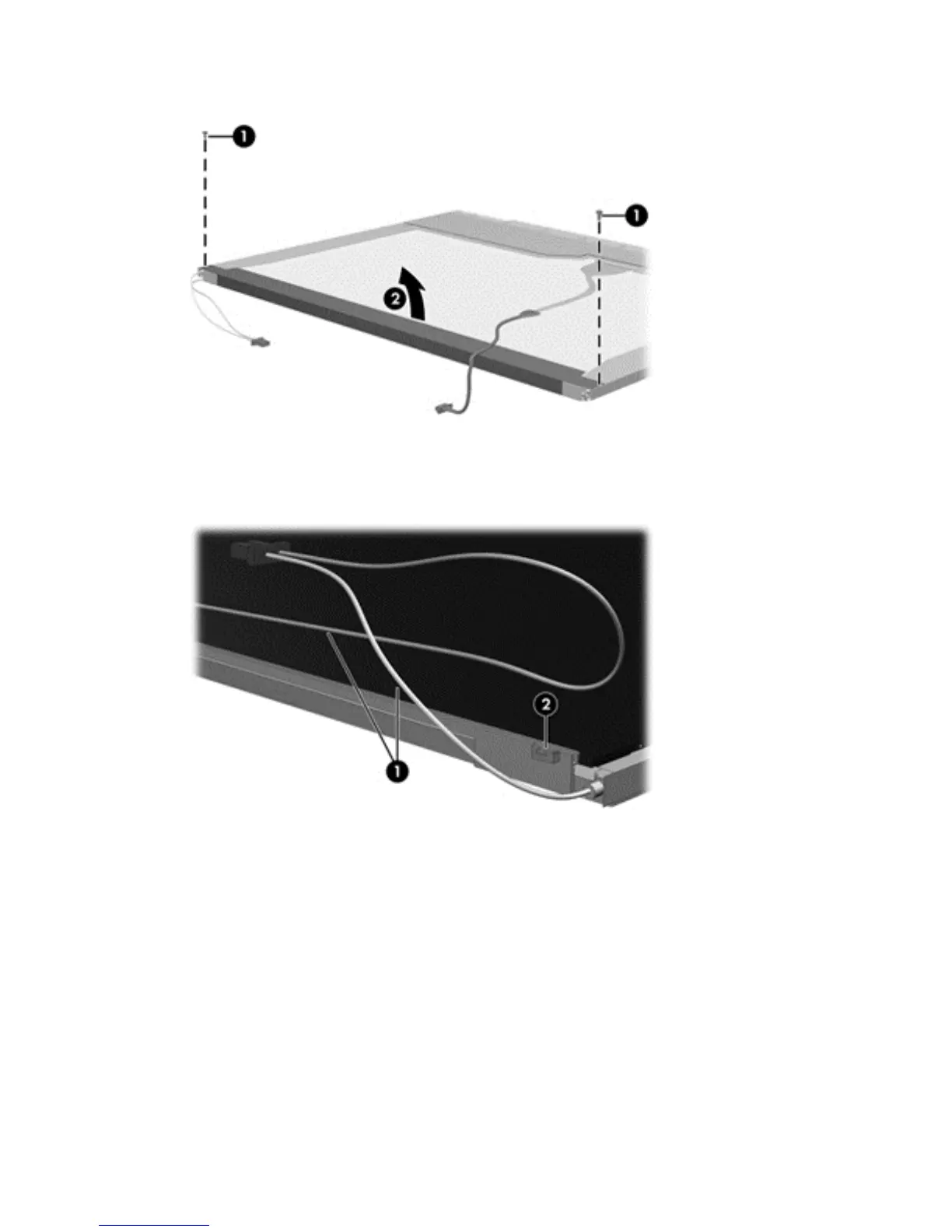

12. Lift the top edge of the backlight cover (2) and swing it outward.

13. Remove the backlight cover.

14. Turn the display panel upright.

15. Remove the backlight cables (1) from the clip (2) in the display panel.

16. Turn the display panel upside down.
