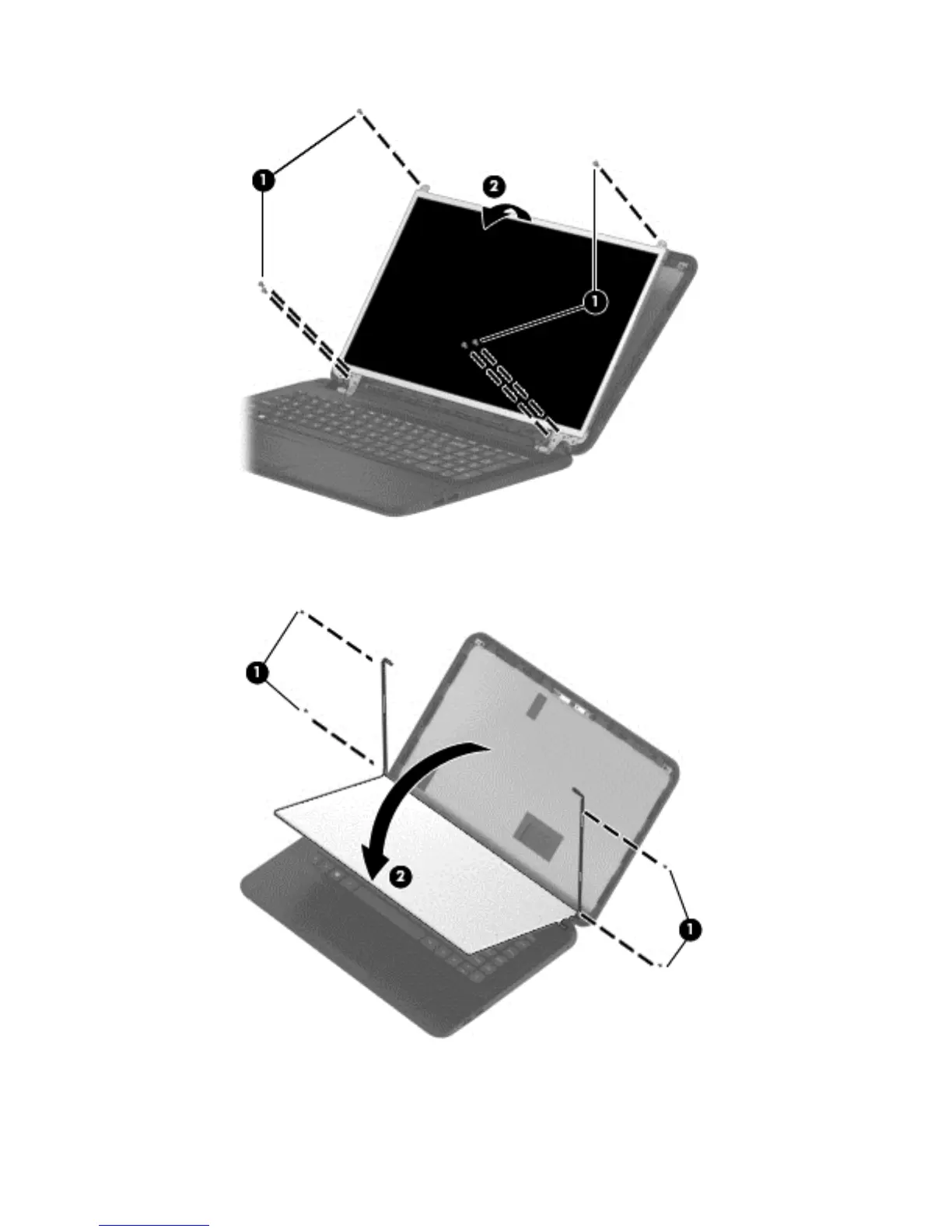

b. Remove the four Phillips PM2.0×3.0 screws (1) that secure the display panel to the hinges, and

then rotate the display panel onto the keyboard (2).
