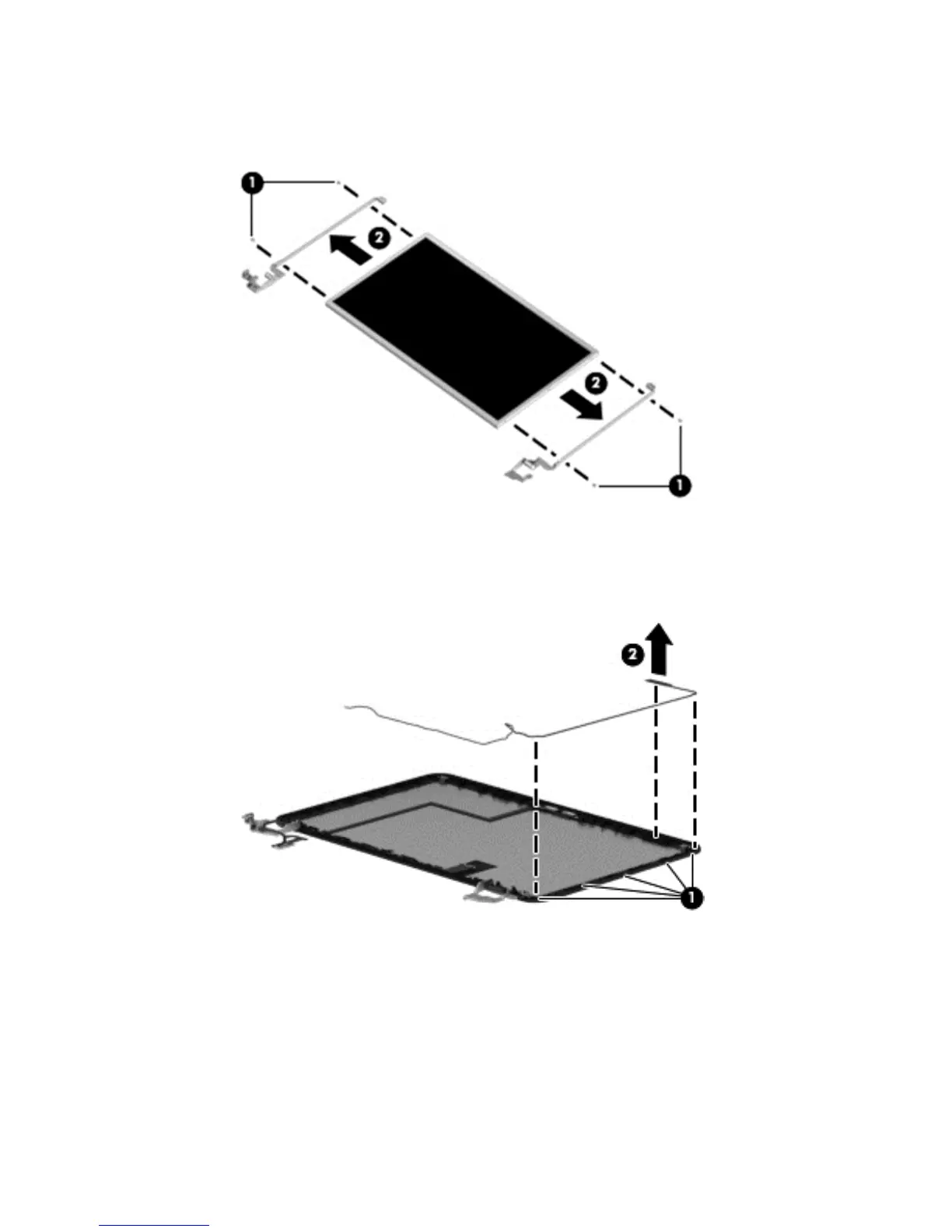

a. Remove the four Phillips PM2.0×3.0 screws (1) that secure the display hinges to the display panel.
b. Remove the display hinges (2).
5. To remove the wireless antenna cables and transceivers:
a. Release the wireless antenna cables from the clips (1) built into the display enclosure.
b. Remove the wireless antenna cables and transceivers (2).
Component replacement procedures 67
