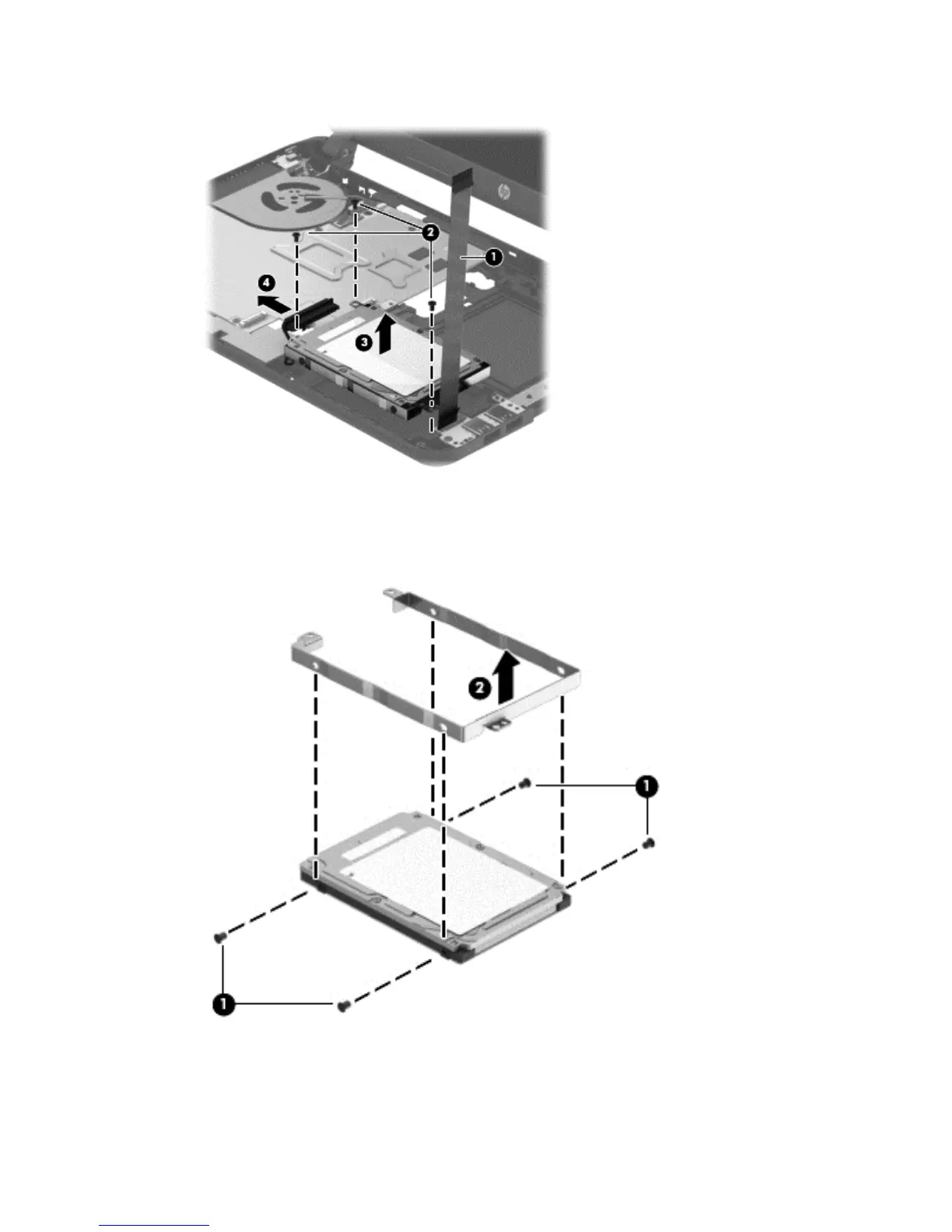

4. Disconnect the connector from the hard drive (4).
5. To remove the hard drive bracket, remove the four Phillips PM2.5×3.0 screws (1) that secure the
bracket to the hard drive.
6. Remove the hard drive bracket from the hard drive (2).
Reverse this procedure to reassemble and install the hard drive.
Component replacement procedures 71
