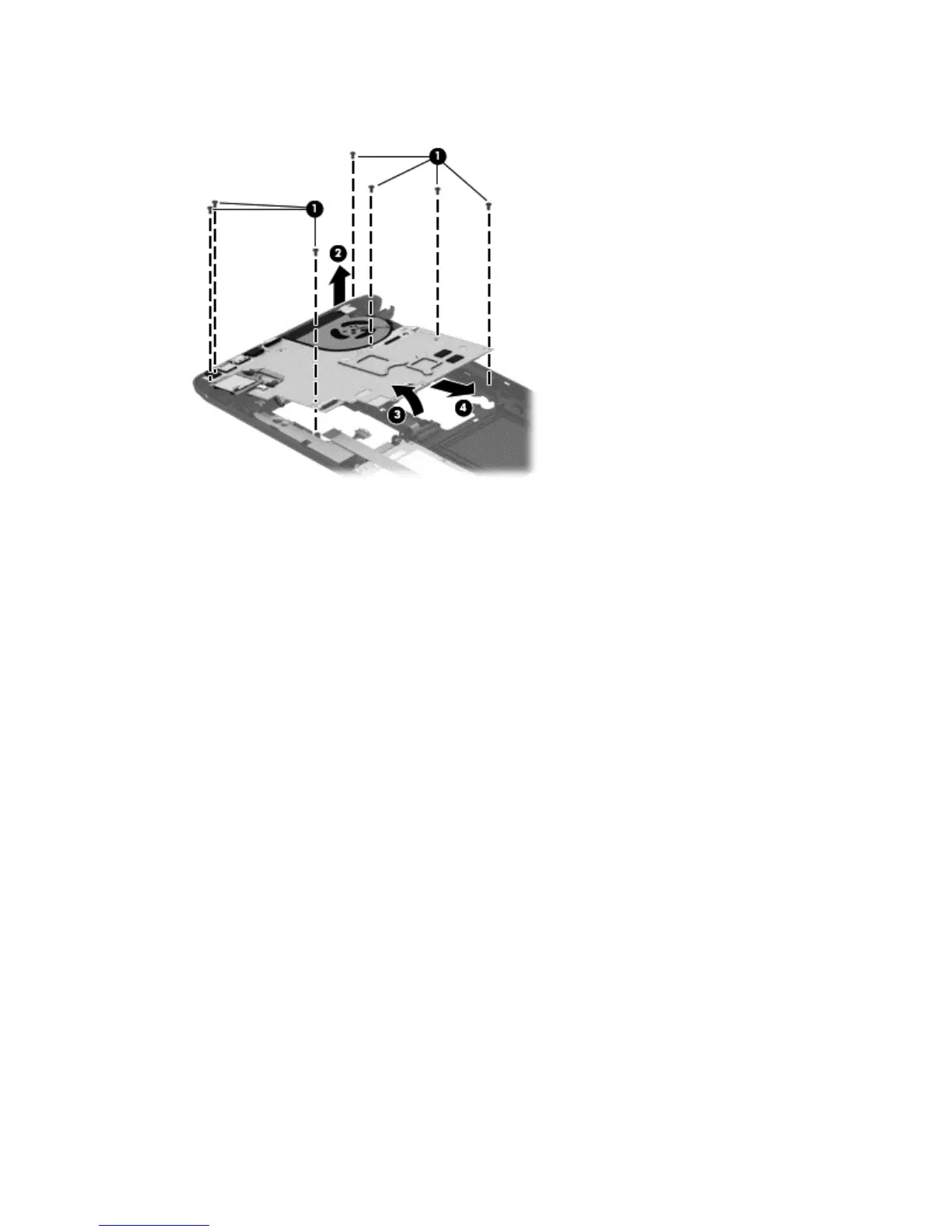

5. Lift the side opposite of the connectors of the system board (3), and then pull the system board away

from the connectors to remove it (4).

Reverse this procedure to install the system board.

76 Chapter 4 Removal and replacement procedures
