Thermal paste is used on the processor (1) and the heat sink section (2) that services it
●
Thermal paste is used on the graphics subsystem chip (3) and the heat sink section (4) that services it
Intel processor and UMA graphics (not Bay Trail)
●

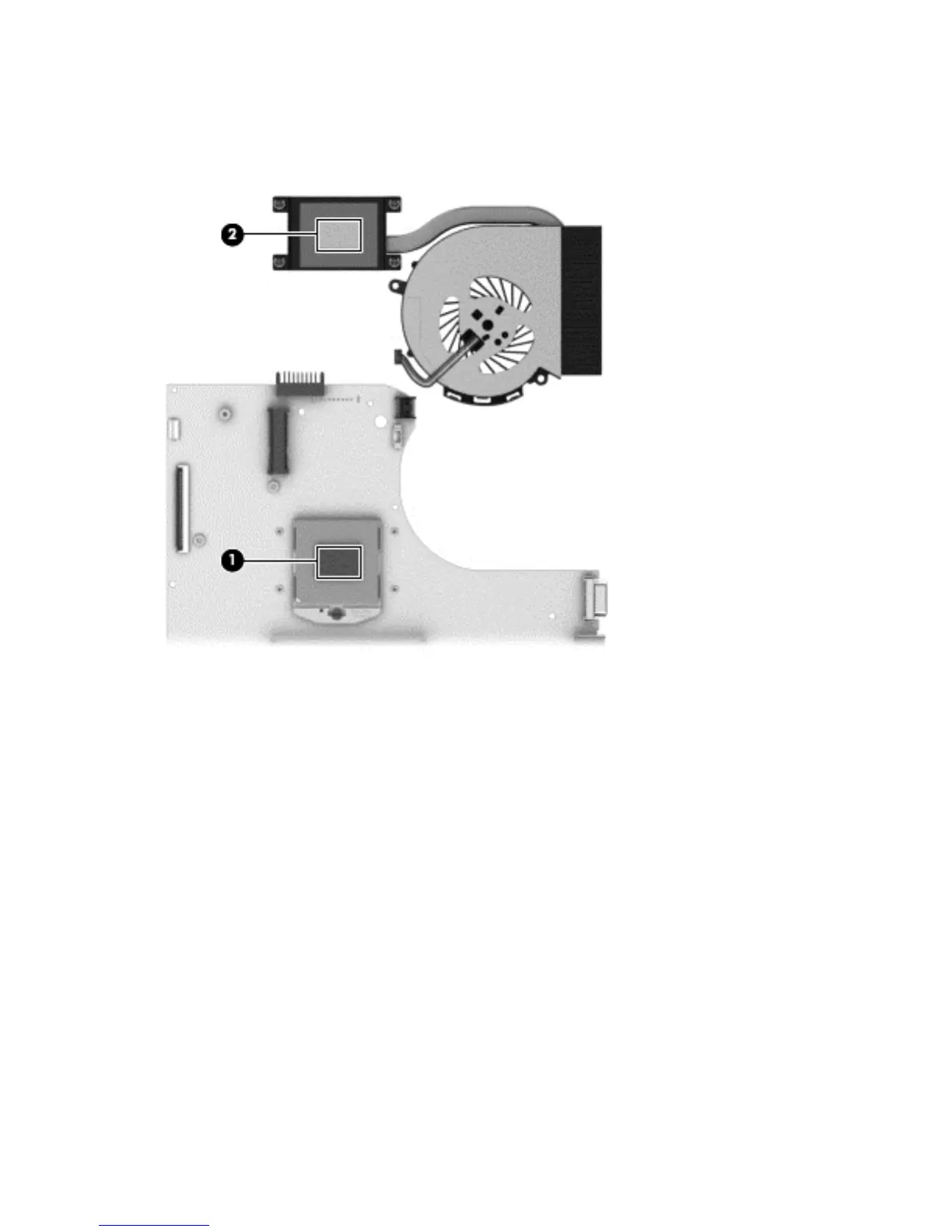

Thermal paste is used on the processor (1) and the heat sink section (2) that services it
AMD processor with discrete graphics
82 Chapter 4 Removal and replacement procedures
