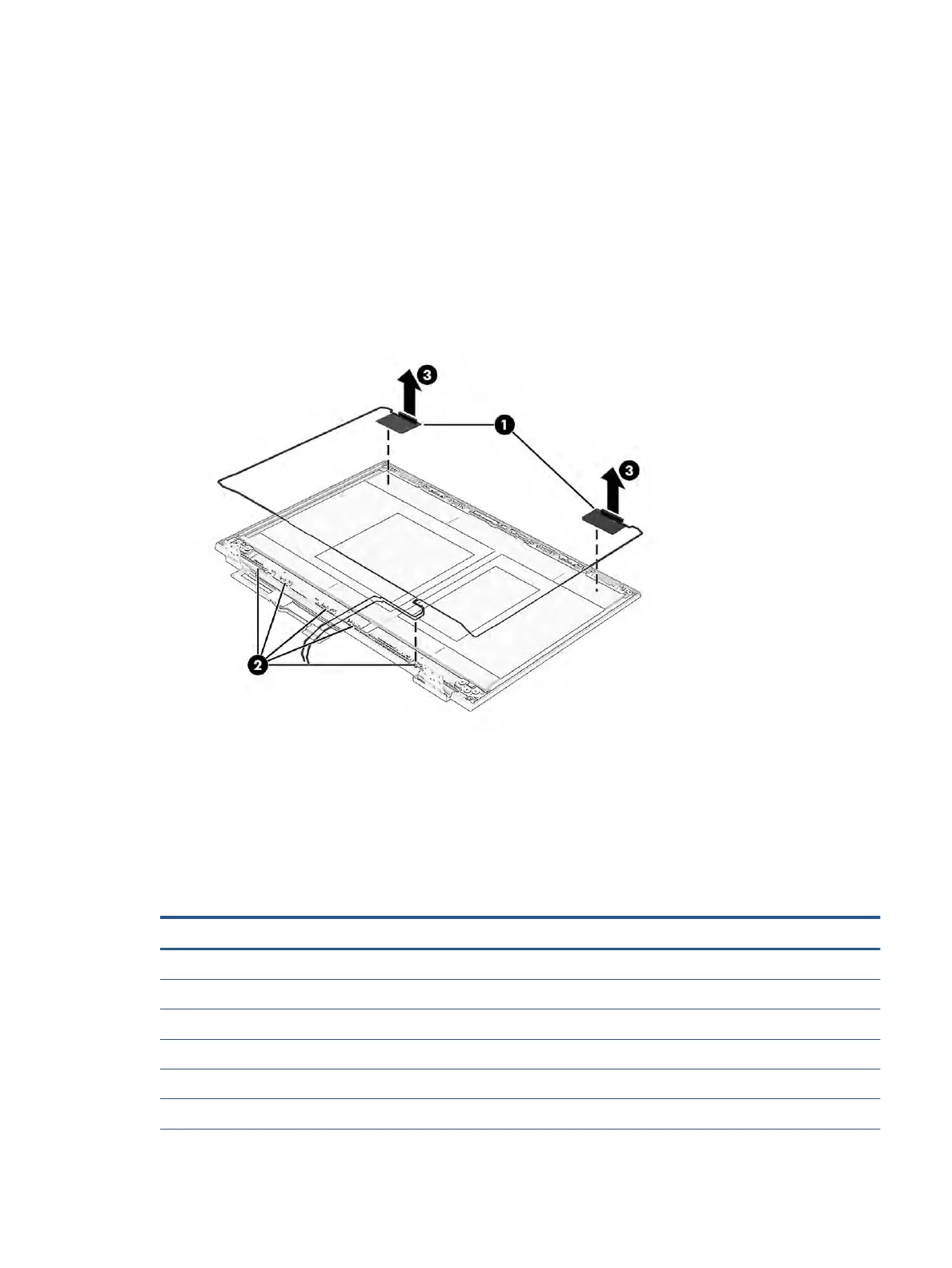

13. Peel the wireless antennas (1) o the display back cover. The antennas are secured with adhesive.
Release the wireless antenna cables from the retention clips and routing channels built into the bottom
of the display back cover (2), and the remove the antennas and cables (3).
The wireless cables and antennas are available as spare part number M82285-001.
Display back covers are available as the following spare part numbers:
M62219-001: FHD, ceramic white
M62220-001: FHD, shadow black
M83829-001: QHD, ceramic white
M83830-001: QHD, shadow black
Reverse this procedure to reassemble and replace the display assembly.
Top cover with keyboard
The top cover with keyboard remains after removing all other spare parts from the computer. In this section,
the rst table provides the main spare part number for the top cover/keyboards. The second table provides
the country codes.
Table 5-18 Top cover with keyboard descriptions and part numbers
Description Spare part number
For use in models with RTX graphics:
● Ceramic white, 1 zone RGB lighting, without numeric keypad M62252-001
● Ceramic white, 4 zone RGB lighting, without numeric keypad M62253-001
● Ceramic white, per key RGB lighting, without numeric keypad M62254-001
● Shadow black, 4 zone RGB lighting, without numeric keypad M62260-001
● Shadow black, 1 zone RGB lighting, without numeric keypad M62261-001
Component replacement procedures 61
