HP 1620 Series User Manual

12

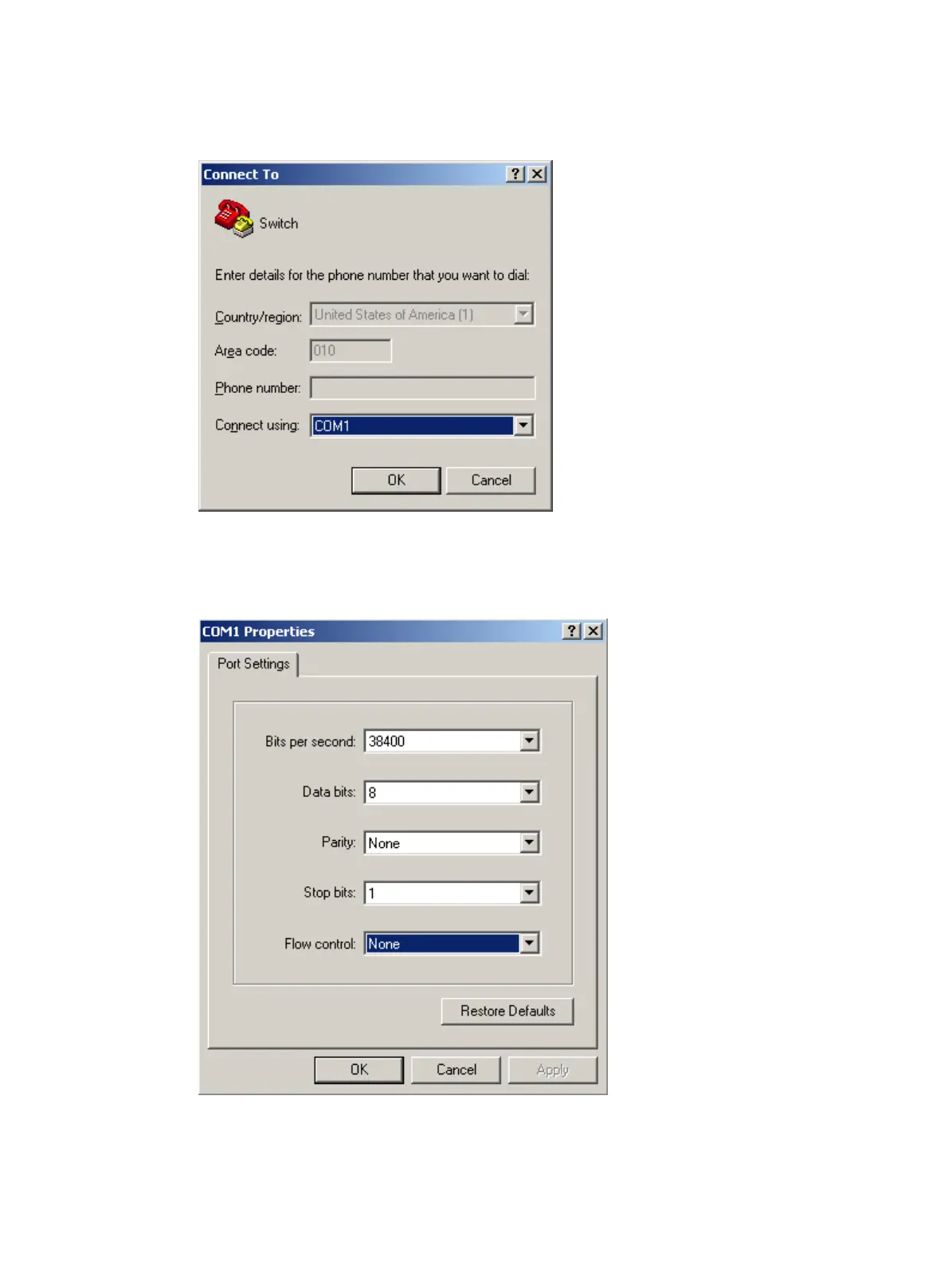

3. Select the serial port to be used from the Connect using list, and click OK.
Figure 16 Setting the serial port used by the HyperTerminal connection
4. Set Bits per second to 38400, Data bits to 8, Parity to None, Stop bits to 1, and Flow control to
None, and click OK.
Figure 17 Setting the serial port parameters
5. Select File > Properties in the HyperTerminal window.

HP 1620 Series Specifications

General

Power Supply	Internal
Form Factor	Desktop or Rack-mountable
Management	Unmanaged
MAC Address Table	8192 entries
Model	HP 1620 Series
