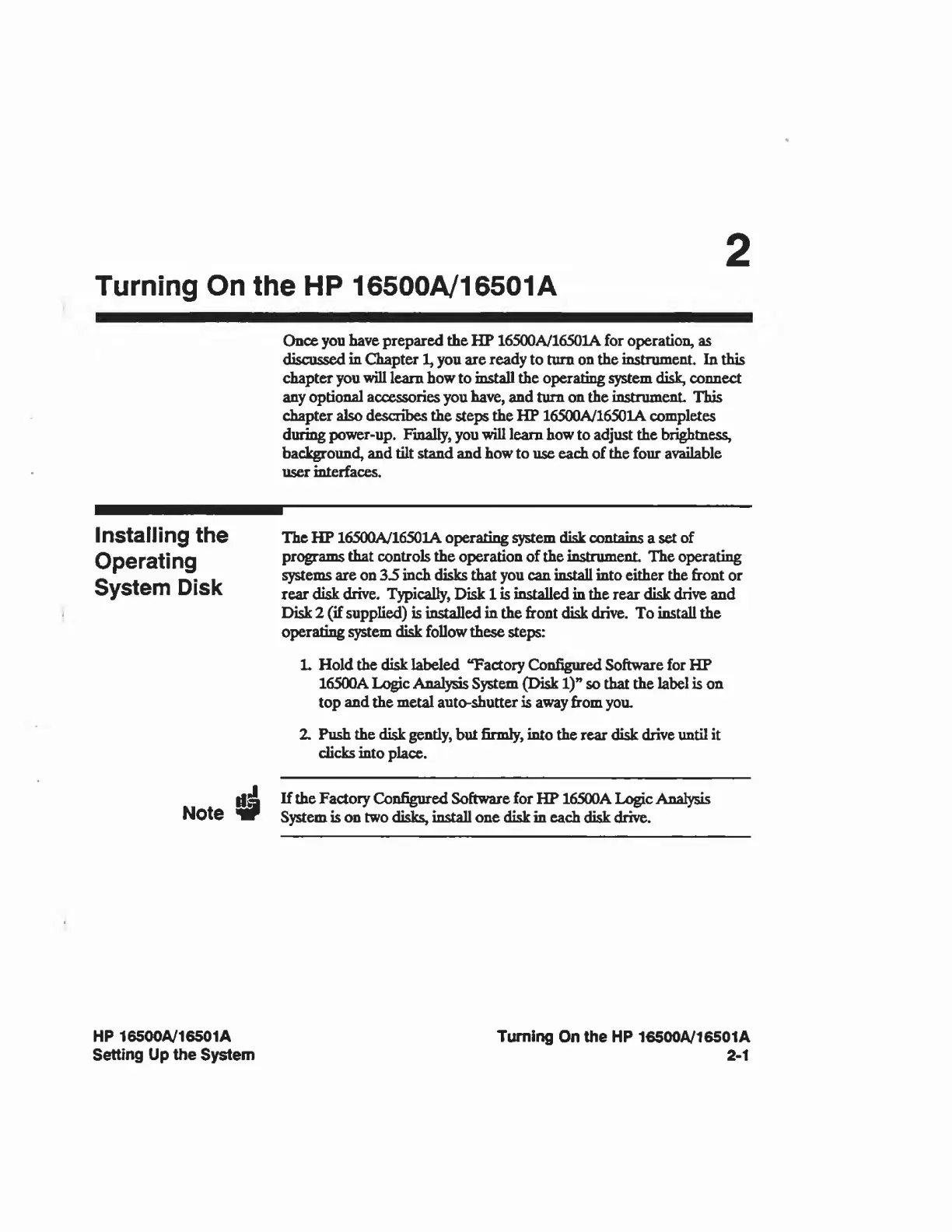

Turning On the HP 16500A/16501A
Once you have prepared the HP 16500A/16501A for operation, as
discussed in Chapter 1, you are ready to turn on the instrument. In this
chapter you will learn how to install the operating system disk, connect
any optional accessories you have, and turn on the instrument This
chapter also describes the steps the HP 16500A/16501A completes
during power-up. Finally, you mil learn how to adjust the brightness,
background, and tilt stand and how to use each of the four available
user interfaces.
Installing the
Operating
System Disk
The HP 1650QA/16501A operating system disk contains a set of
programs that controls the operation of the instrument. The operating
systems are on 3.5 inch disks that you can install into either the front or
rear disk drive. Typically, Disk 1 is installed in the rear disk drive and
Disk 2 (if supplied) is installed in the front disk drive. To install the
operating system disk follow these steps:
L Hold the disk labeled “Factory Configured Software for HP
1650QA Logic Analysis System (Disk 1)” so that the label is on
top and the metal auto-shutter is away from you.
2. Push the disk gently, but firmly, into the rear disk drive until it
dicks into place.
If the Factory Configured Software for HP 16500A Logic Analysis
System is on two disks, install one disk in each disk drive.
HP 16500A/16501A
Setting Up the System
Turning On the HP 16500A/16501A
2-1
