HP 16500A - Connecting the Optional Mouse.2-3

Connecting the
Optional Mouse
The cord on the HP Moose (HP 46060A) is marked with two dots. On
the lower right comer of the front panel of the HP 16500A mainframe
there is a port marked with two dots. This is the port into which you
will insert the HP Mouse connector. To insert the connector, follow
these steps:
1. Hold the connector so that the two spring dips are facing down
and the contacts are facing up.
2. Gently push the connector into the port on the front panel until it
dicks into place.

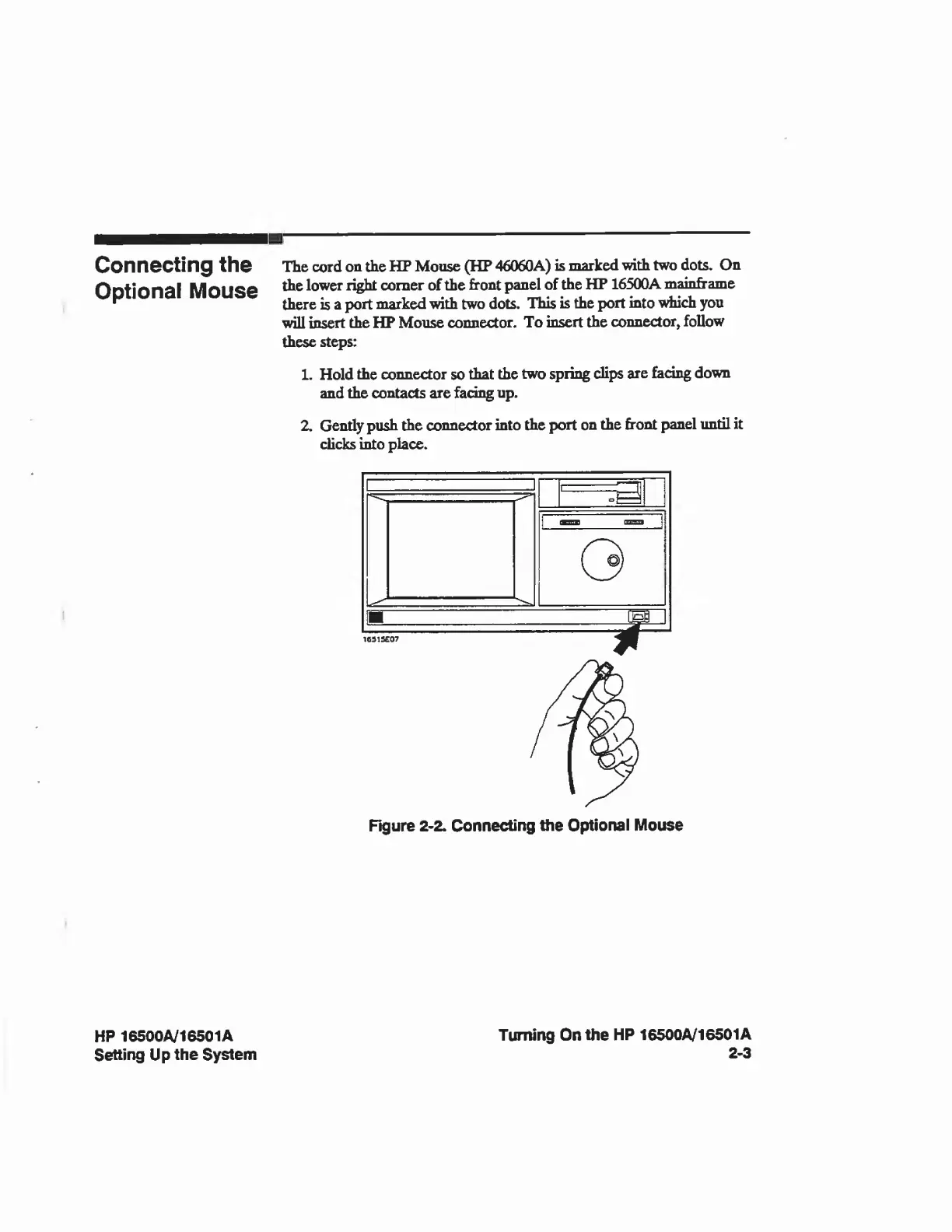

Figure 2-2. Connecting the Optional Mouse
