The mouse may also be plugged into the optional keyboard interface
(HP E2427A Keyboard Kit). To connect die mouse to the keyboard,
insert the connector end of the mouse (marked with two dots) into the
port marked with two dots located on the back of the keyboard.
When the mouse is connected directly to the HP 16500A mainframe,
the System Configuration menu will show a mouse icon connected to
the instrument (see Fig. 2-3).

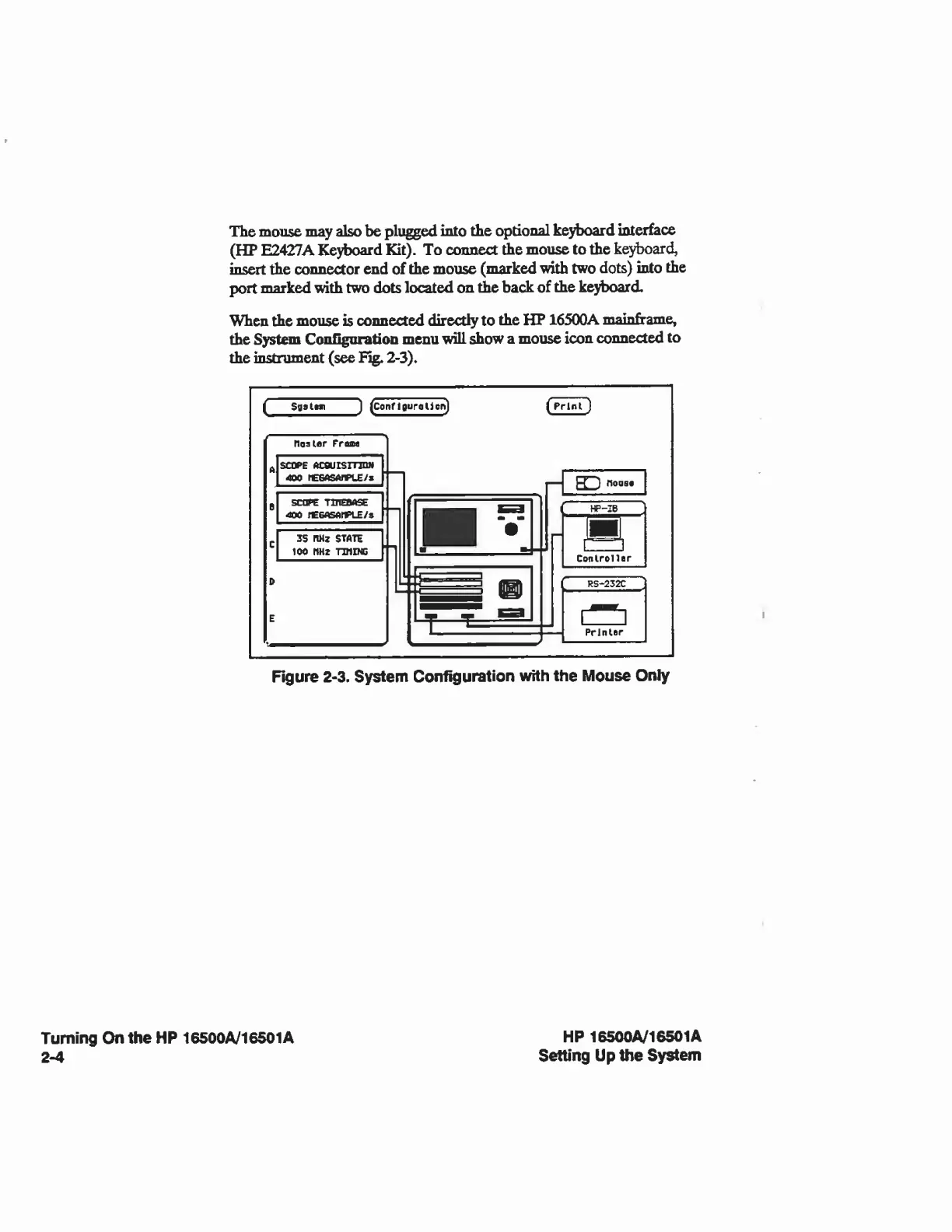

Figure 2-3. System Configuration with the Mouse Only
