HP 1820-24G - Description; Block Diagram

RT-1000 MC Network Interface
RHOTHETA Page 4 of 13 User Manual
1 Description
The network interface for the RT-1000 multichannel direction finder system includes all
devices to connect the system over an internet connection to a remote PC. The network
interface is built with a redundancy in the transmission/ telephone line. Therefore 2 network
switches and 4 DSL modems are necessary.

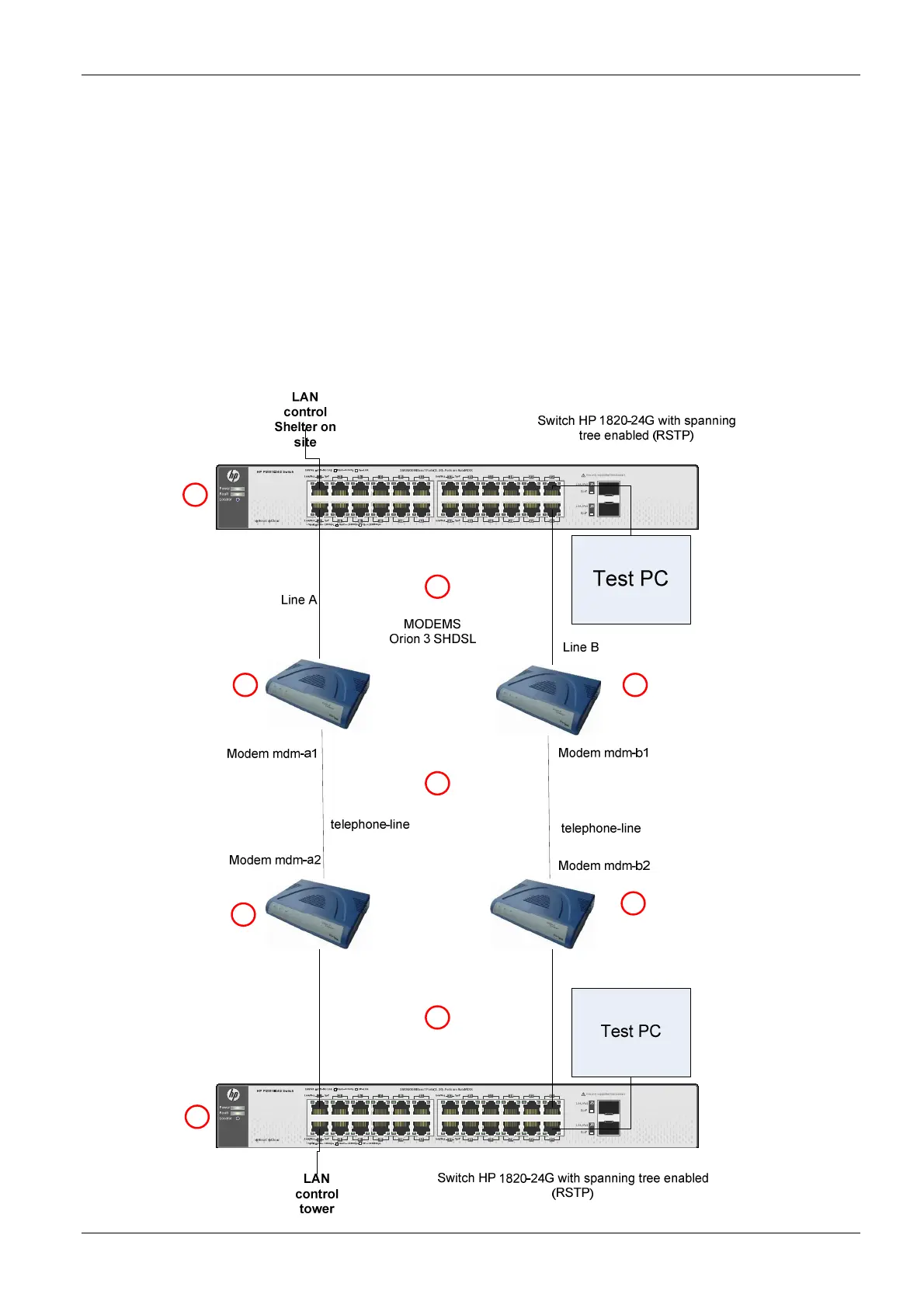

2 Block Diagram
1
2
3
5
4
6
8
7
7
